11
• Status. Indicates if the current thermostat is online to the JENE or not.
o If online, the status will be {OK} and the thermostat line will be all white
o If offline, the status will be {down} and the thermostat line will be all yellow
• Health. The current status of each thermostat wireless node. “OK” is for an online thermostat and the date
and time represent the last time a communication event was received by the JENE from a thermostat. A
“Fail” represents a thermostat that stopped responding to its mandatory heartbeat.
Database Tools. Add / Remove Selected Thermostat

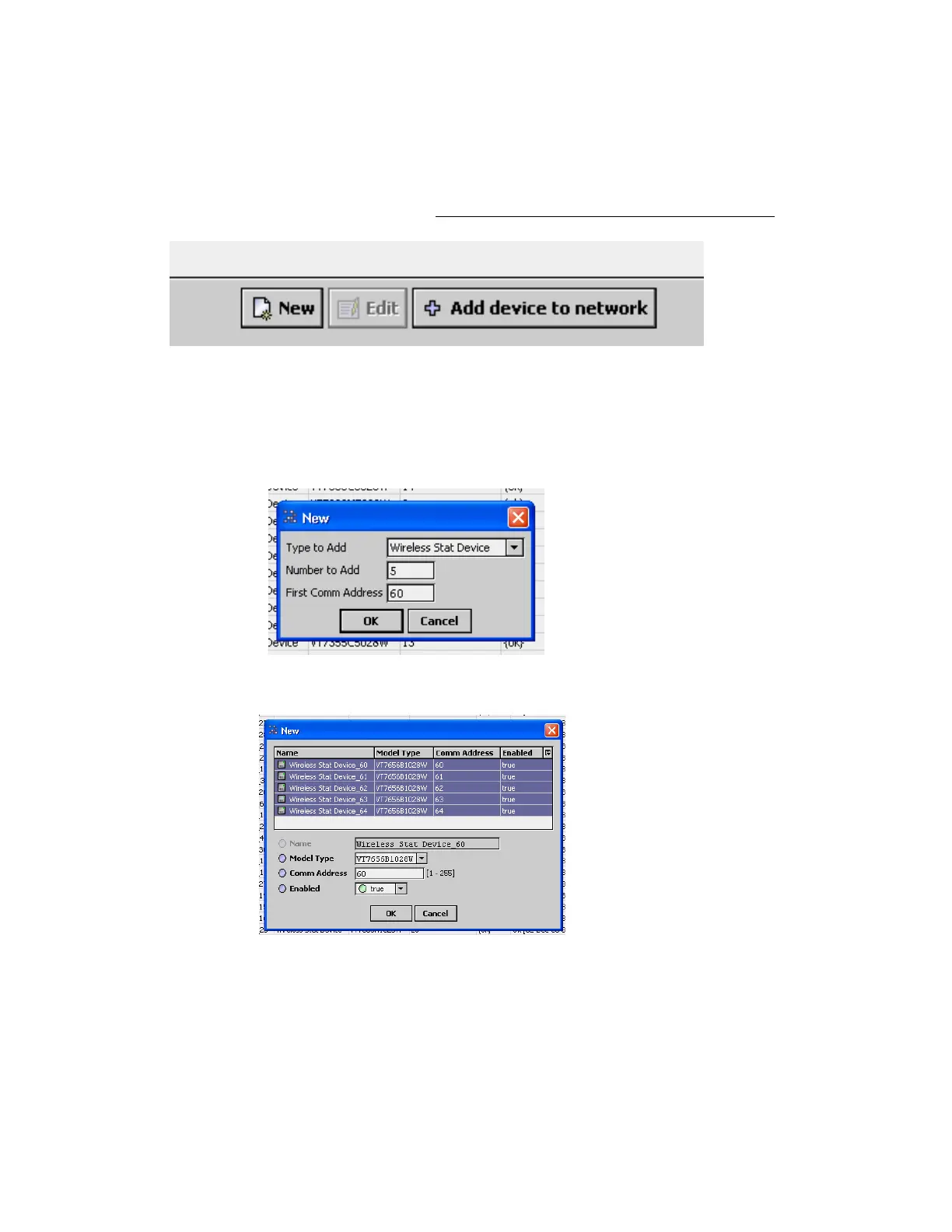

At the bottom of the “Discovered Device” folder, 3 buttons are found to manage the thermostat devices database.
• New. The “New” thermostat button is a utility that allows the integrator to create offline devices prior to the
installation. This allows the integrator to pre-build a database and all related utilities before the actual
installation takes place. When the assigned thermostat would be automatically discovered in the field
during commissioning, all required functions and bindings would already be assigned.
Select the number of device to add of the same type and the starting local MAC address each thermostat will be
assigned in the field.
Then select the required thermostat model number that will be installed on the job site. Remember to select ALL
thermostats if more than one is required. The thermostat can be enabled now or at a later date if the installation
is done in segments.
