20
Pads

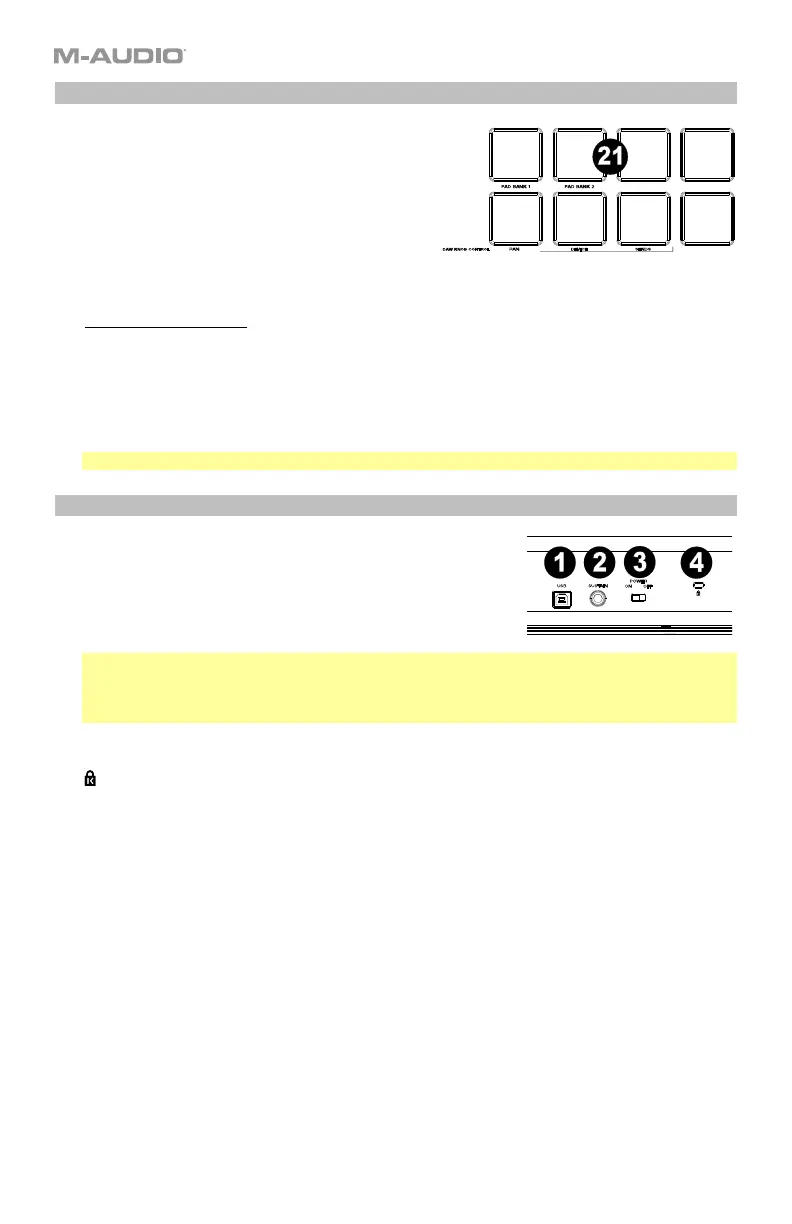

21. Pads 1-8: Press these velocity-sensitive pads to
send Note On/Off and velocity data when
performing.
Hold SHIFT and press a pad to change to
activate its secondary function:
PAD BANK 1 (Pad 1): Select pad bank for all
Pads 1-8.
PAD BANK 2 (Pad 2): Select pad bank for all Pads 1-8.
DAW KNOB CONTROL
Set all Knobs 1-8 to:
PAN (Pad 6): Each knob will pan the corresponding software track.
DEVICE (Pad 7): Each knob will control device controls of the corresponding software track.
SENDS (Pad 8): Each knob will control the level of the aux sends for the corresponding software
track.
Note: Not all knob functions will be available in every DAW.
Rear Panel
1. USB: The USB 2.0 port delivers power to the keyboard and
transmits MIDI data when connected to a computer.
2. SUSTAIN: This input accepts a momentary-contact foot pedal
(not included). When pressed, this pedal will sustain the sound
you are playing without having to keep your fingers pressing
down on the keys.
Note: The polarity of the sustain pedal is determined by the keyboard upon startup. When an
Oxygen 61 keyboard is powering up, the sustain pedal is assumed to be in the "up" (Off)
position. It is important that the sustain pedal is not pressed during startup, otherwise the pedal
will reverse its operation, and notes will sustain when the pedal is not pressed.
3. POWER ON/OFF: Use this switch to power the device on or off. When this switch is set to the
“on” position, Oxygen 61 is powered through the USB connection to your computer.
4. Kensington Lock: This connector is compatible with standard laptop-style Kensington
security cables for theft protection.
