M-Audio Venom Service Manual

G0
S0-49
11/12/2010
C
PART NUMBER:
ASSY NUMBER:
REV:
SIZE:
TITLE:
COMPANY:
RELEASED: DATED:
CHECKED: DATED:
DATED:DRAWN:
SCALE:
FILE NAME:
1:1
REVISION RECORD
APPROVED:ECO NO:LTR DATE:
123456
D
C
B
A
C
D
B
A
CE/JS
SHEET: OF

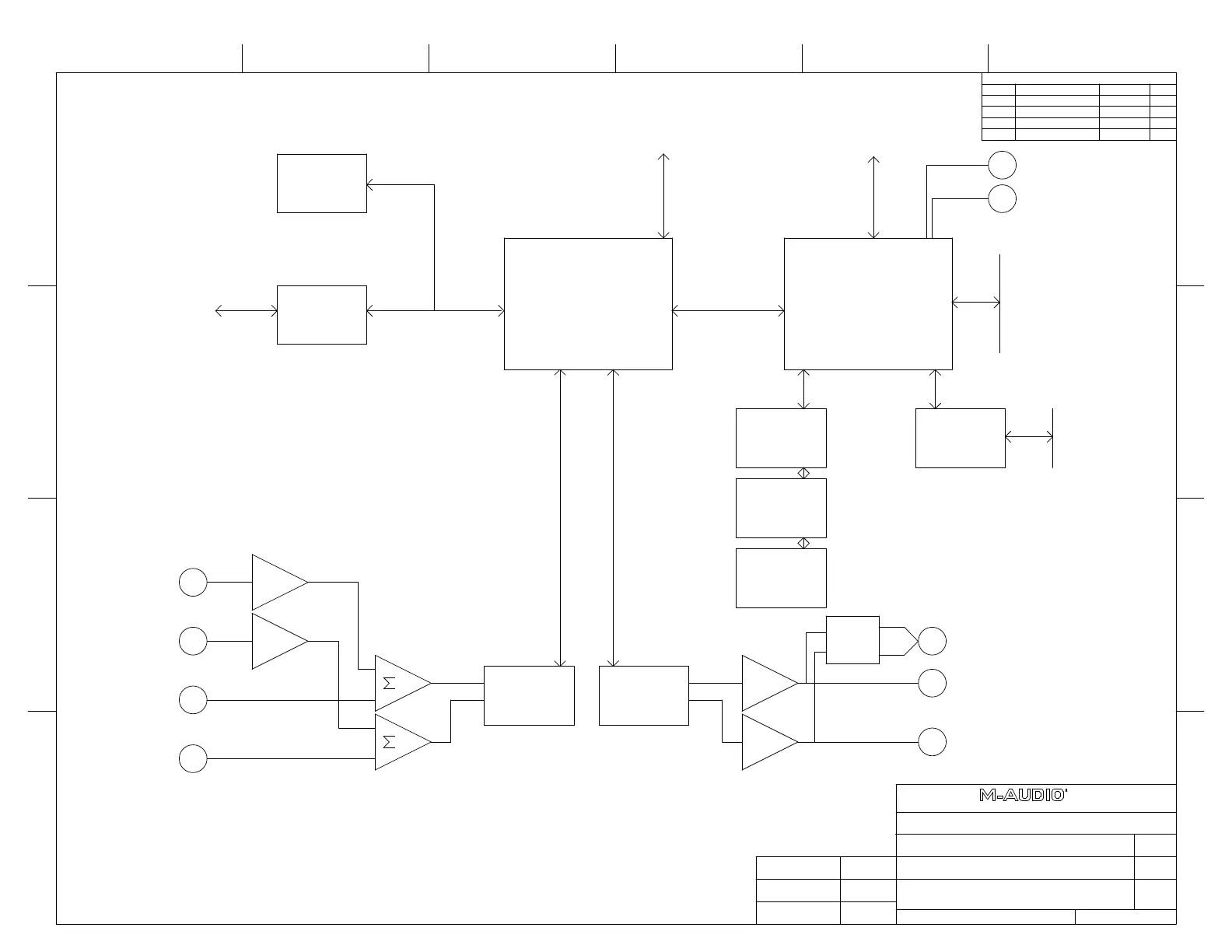

Atmel Dream
SAM3308B
DSP
USB
PHY
Philips
ISP1181B
16-bit Parallel Bus
S29GL032
Spansion
Flash
MCU
Philips
LPC2136
UART
DEBUG
UART JTAG
DEBUG
ADC DAC
MIC INPUT
INST INPUT
LINE INPUT
I2S
AKM
AK5358
AKM
AK4385
I2S
LINE OUTPUT
HEADPHONE
OUTPUT
AMP
HP
KEYBED
PITCH/MOD
LEFT CONTROLS
TOP CONTROLS
MIDI I/O
LEVELS
EXPRESSION
25LC1024
Microchip
EEPROM
EEPROM
Microchip
25LC1024
LCD
SPI SPI
MCU
Philips
LPC2101
LINE INPUT
LINE OUTPUT
1
6

M-Audio Venom Specifications

General

Synthesis Type	Virtual Analog
Polyphony	12 voices
Oscillators	3 per voice
Arpeggiator	Yes
Headphone Output	1 x 1/4" TRS
Effects	Distortion, delay, reverb, chorus, phaser
Keyboard	49 keys
MIDI	In, Out, USB
Audio Outputs	2
