M Confort CF 2000 - Installation

5. INSTALLATION

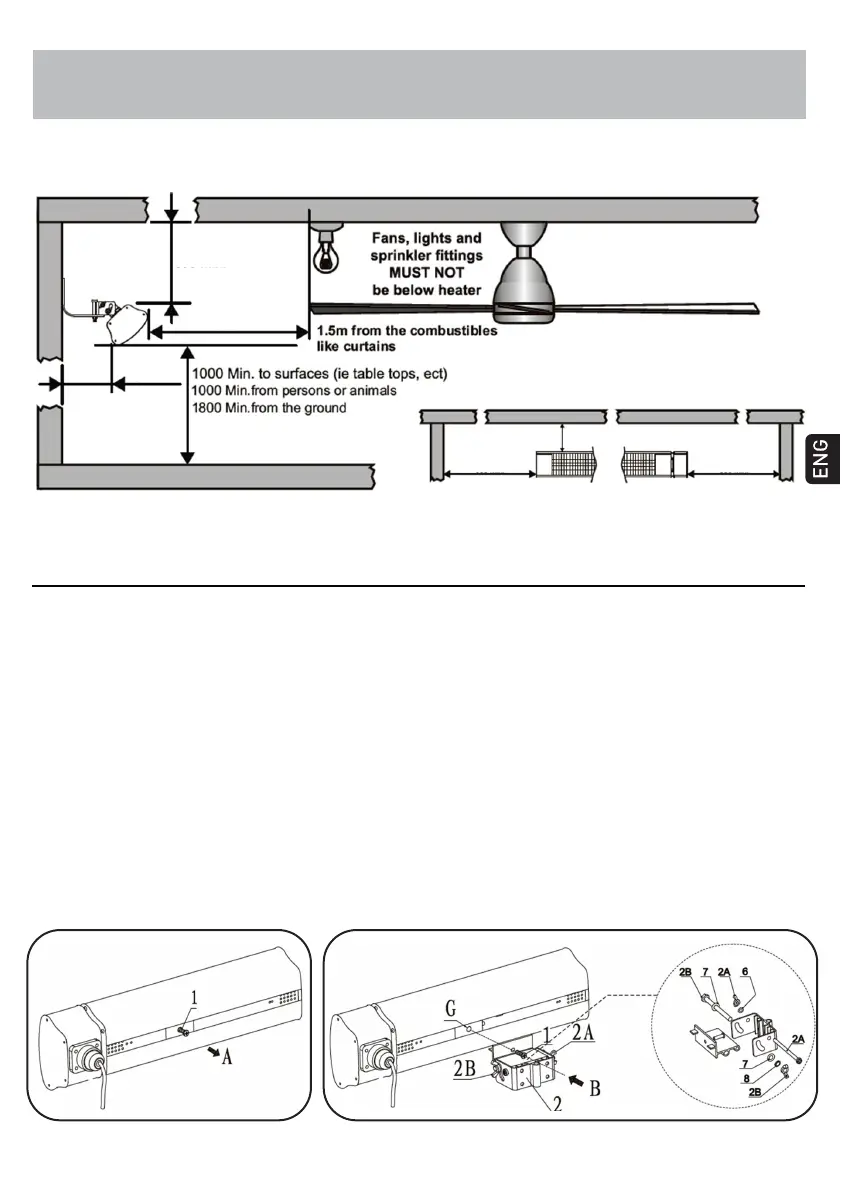

5.1 Safe distances required for installation:
5.2 Part list:
5.3. Installation:
Measurements in mm
series
1
2
2A
2B
3
4
5
5A
6
7
8
Parts name
Screw
Bracket set
Bolt + Nut
Bolt + Nut
Expansion bolt
Hanger
Bolt
Nut
Washer
Washer
Spring washer
Specification
M6x16
Aluminum
M6x100+M6
M8x100+M8
M6x60
STEEL
M8×60
M8
Ø6.2xØ14x1
Ø8.2xØ16x1
Ø8.2xØ11x1.5
Quantity
1
1
1
1
2
1
1
1
1
3
1
Location
On the heater
In the package
Fixed on the Nº 2 Bracket set
Fixed on the Nº 2 Bracket set
In the package
In the package
In the package
Fixed on Nº 5 Bolt M8*60
Fixed on Nº 2A Bolt M6*100
Fixed on Bolt of Nº2B and Nº5
2pcs Fixed on Bolt of Nº2B and 1 pc on Bolt
nº 2A
600 min. 600 min.
300 min.
300 min.
300 min.
1500 min.
