M3 Mobile M3 Orange User Manual

Application usage
35
3.7 Wireless LAN
3.7.1 WLAN configuration

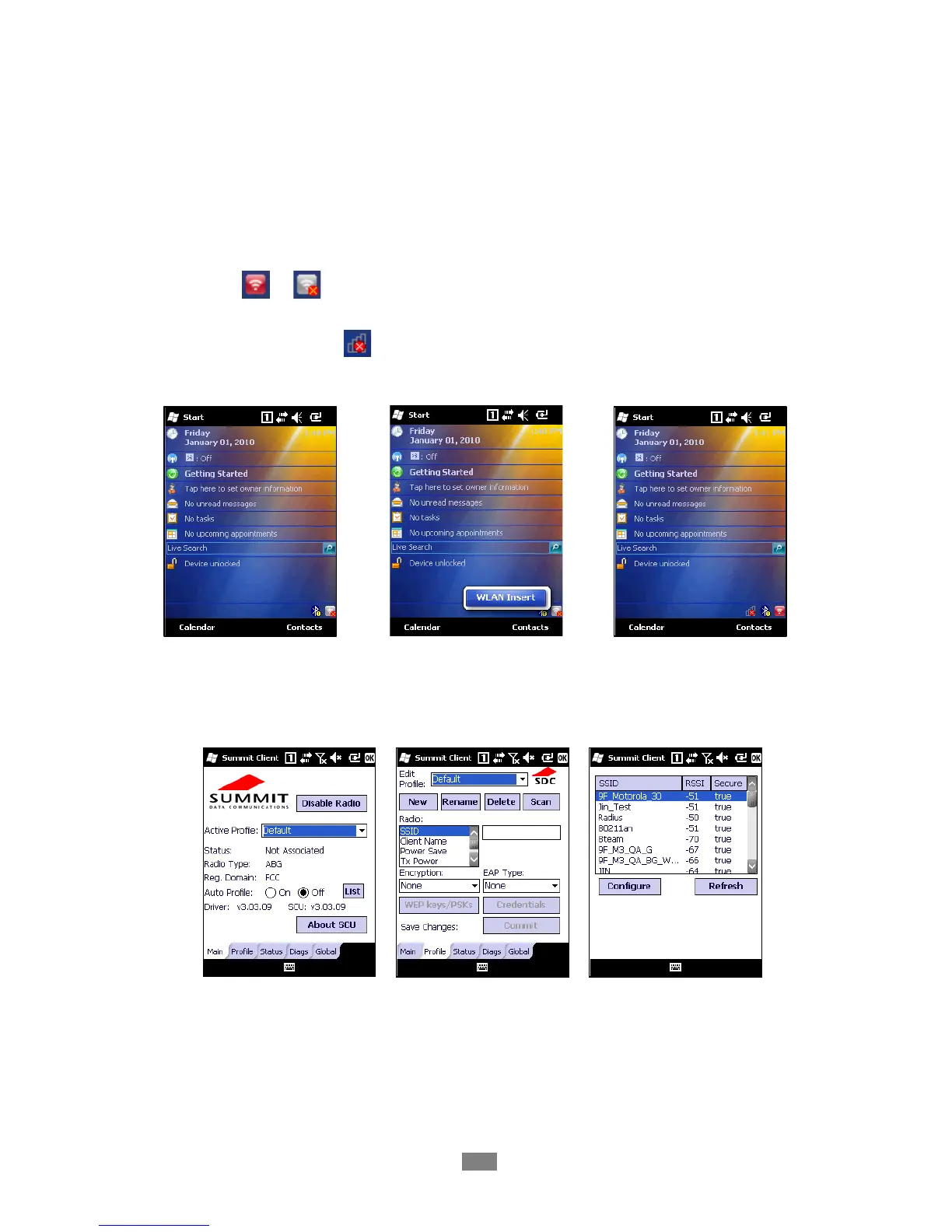

How to connect
WLAN icon ( / ) on task bar indicates with WLAN is on or off respectively. If
WLAN is off, click on the icon and Select ‘WLAN Insert’ to turn on WLAN module.
Then, WLAN status icon ( ) will appear on the task bar. Click on the icon to launch
Summit Client Utility (SCU).
To connect to an AP, follow steps below.
i. Choose ‘Scan’ from ‘Profile’ tab of SCU.
ii. From the AP list, click on the target SSID and Configure to access. Enter
secure codes if applicable.

M3 Mobile M3 Orange Specifications

General

Brand	M3 Mobile
Model	M3 Orange
Category	PDA
Language	English
