If you cannot get a good shot of the encoder wheel and encode together then please
continue with the next step.

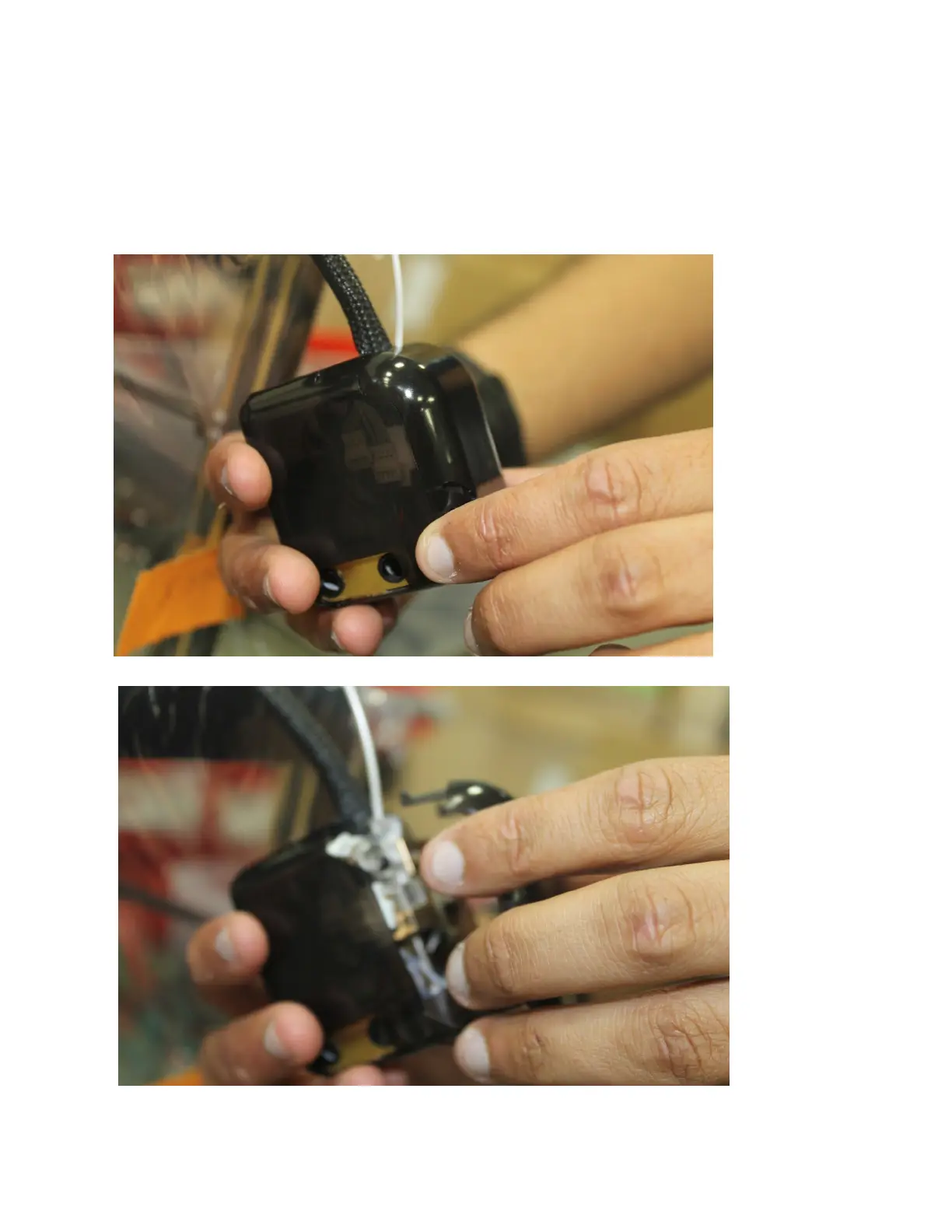

Step.9 In this step we will disassemble the extruder core slightly to get a better photo of the
encoder wheel and encoder. Pinch the bottom of the front cover to remove it.
1.
2.
.
