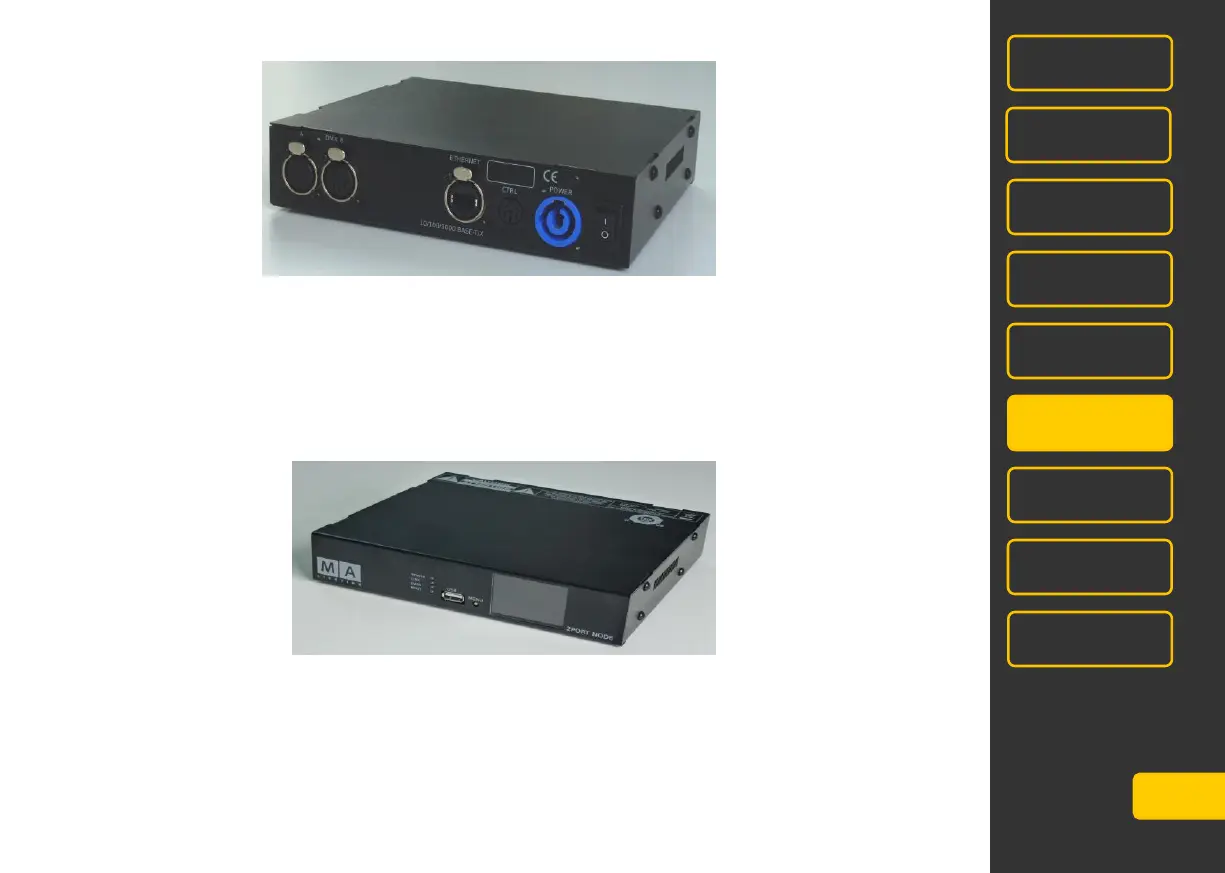

Connectivity
2 x DMX OUT (XLR 5 pin) Ports can also be configured to DMX IN
RJ45 Ethernet socket Network connection
CTRL Currently no function
PowerCon In (blue) 100 – 240 V~ 50/60 Hz (USA, Canada) Automatic operation, no switching
necessary! The open end must be fitted with a shock-proof plug and must
meet the local requirements.
Main switch To turn on or off the device
USB socket To update via USB-stick - do not connect peripherals –mouse, keyboard, etc.!
MENU –button To switch the menu and setting of parameters (see also Quickstart ON/OFF)
POWER-LED green Steady = device is ready
LINK-LED green Steady = light signals correct connection to onPC or console
DATA-LED green Flashes = data-traffic
BOOT-LED red Lights during the boot process
