MAAX AKER Series User Manual

GUIDELINES
FOR UNIT
INSTALLATION
Page 2
10023034

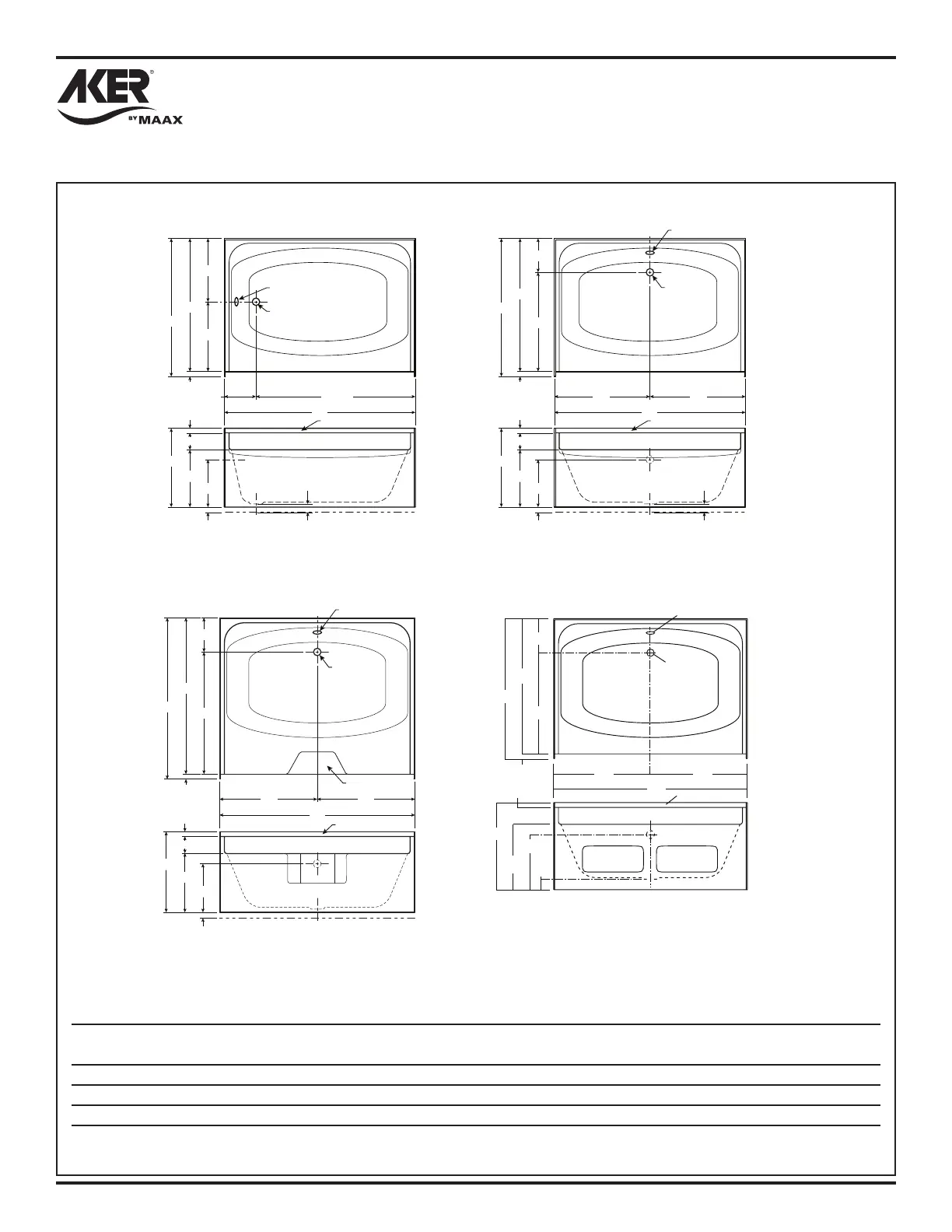

Fastening Flange
9-1/2" 50-1/2"
60"
Ø 2" Drain
Ø 2-1/2" Overflow
19-1/4"
40-1/2"
42"
21-1/4"
1-1/2"
14-3/4"
17-3/4"
5-1/2"
24-3/4"
1-1/2"
+2 5/8" (ABFLR option)
2" (ABFLR option)
141082
GT-4260 R
GT-4260 L (shown)
Fastening Flange
30" 30"
60"
11-1/4"
40-1/2"
42"
29-1/4"
1-1/2"
15-1/2"
17-3/4"
5-1/2"
24-3/4"
1-1/2"
+2 1/8" (ABFLR option)
141082
GT-4260 Center Drain
141083
GT-60
Fastening Flange
30" 30"
60"
11-1/4"
47-1/2"
49"
36-1/4"
1-1/2"
15-1/2"
17-3/4"
5-1/2"
24-3/4"
**1-1/2"
Ø 2" Drain
Step
*Ø 2-1/2" Overflow
Ø 2" Drain
Ø 2-1/2" Overflow
*Note: Models 141083 can be ordered without overflow drilled (CB).
**Note: The fastening flange of the CB models is 1" high instead of 1-1/2".
27-3/8”
20-3/8”
2-5/8”
18-1/8”
60”
30”
30”
29-1/4”
11-1/4”
42”
1-1/2”
1-1/2”
5-1/2”
40-1/2”
2 1/2” Dia. Overflow
2” Dia. Drain
Nailing Flange
141482
GT-4260AP Center Drain
3" (Drain Clearance) 3" (Drain Clearance)
Unit Data and Dimensional Guidelines (Tolerance: +0/ -3/8 inch)
Unit Sump Bottom Dry Unit Avg. Oper. Max. Sump Floor
Model Surface Dim. (W x L) Weight (1) Volume Capacity Loading
141082 GT4260 Gelcoat 19-1/2 x 36-1/2 in. 116/89 lb. 45 gal. 65 gal. N/A
141083 GT-60 Gelcoat 19-1/2 x 36-1/2 in. 118 lb. 40 gal. 63 gal. N/A
141482 GT4260AP Gelcoat 19-1/2 x 36-1/2 in. 92 lb. 40 gal. 63 gal. N/A
1. Dry unit weight includes whirlpool system.
