9
PRINTED : JAN’2015
REF NO. SM7715010-01-11

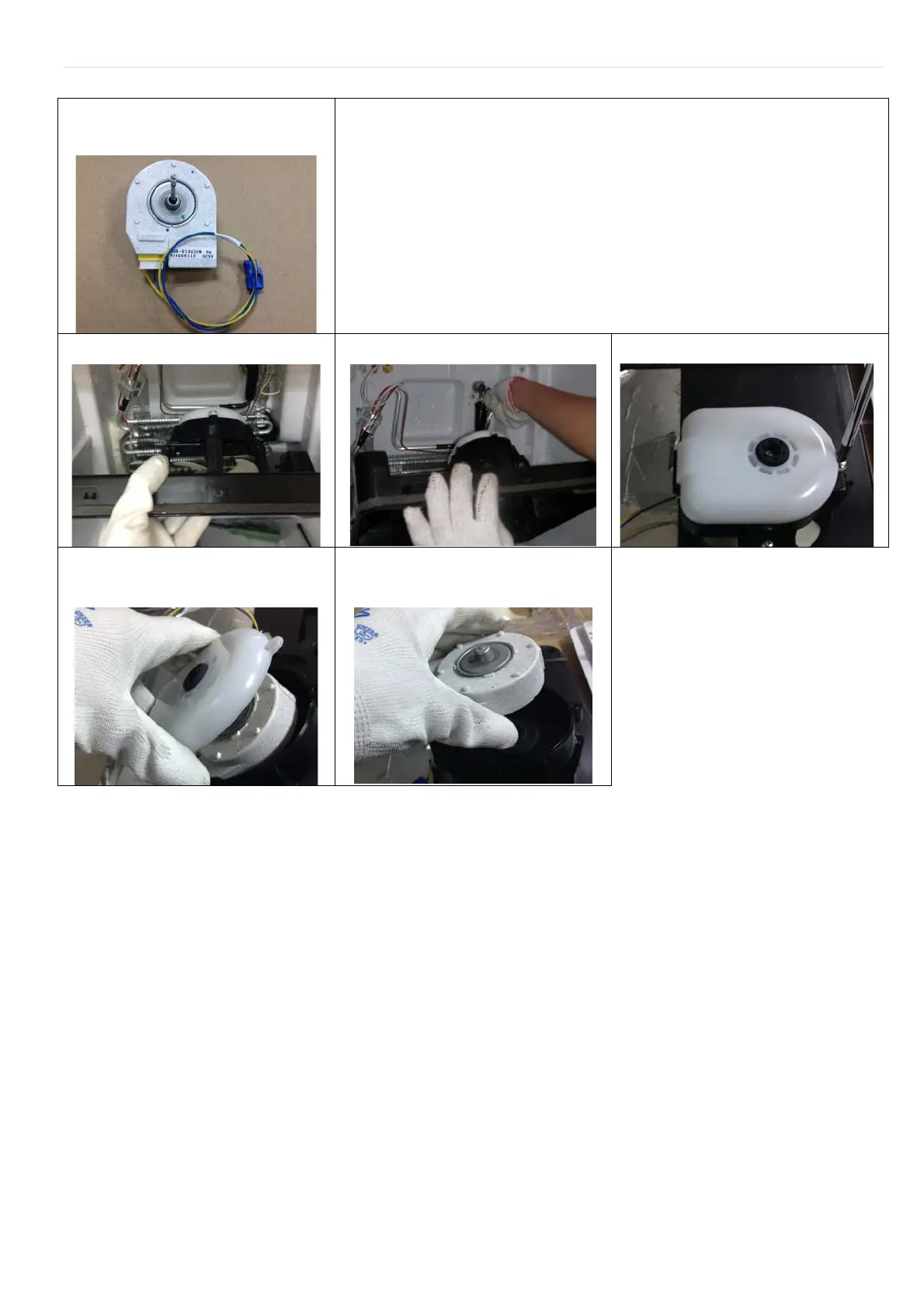

Part Name
Fan Motor.
Operating Procedure
- Follow step 1-10 of replacing Fan Blade.
1. Lift Plate MTG Motor out.
2. Take out socket
of Fan Motor.
3.
Release screw at Cov
er A.
4.
Pull Cover A from Plate MT
G Motor.
5.
Pull out Fan Motor from Plate MTG
Motor.
6.
After replacing Fan
Motor, reverse the
steps above.
9
11
Table of Contents
Table of Contents
1
Specifications
2
Circuit Diagram
5
Refrigerant Circuit
8
Replacement of Parts
9
Control Function
19
Trouble Shooting
24
