Page 12
PRINTED : JAN’2015 REF NO. SM7715010-01-11
Part Name

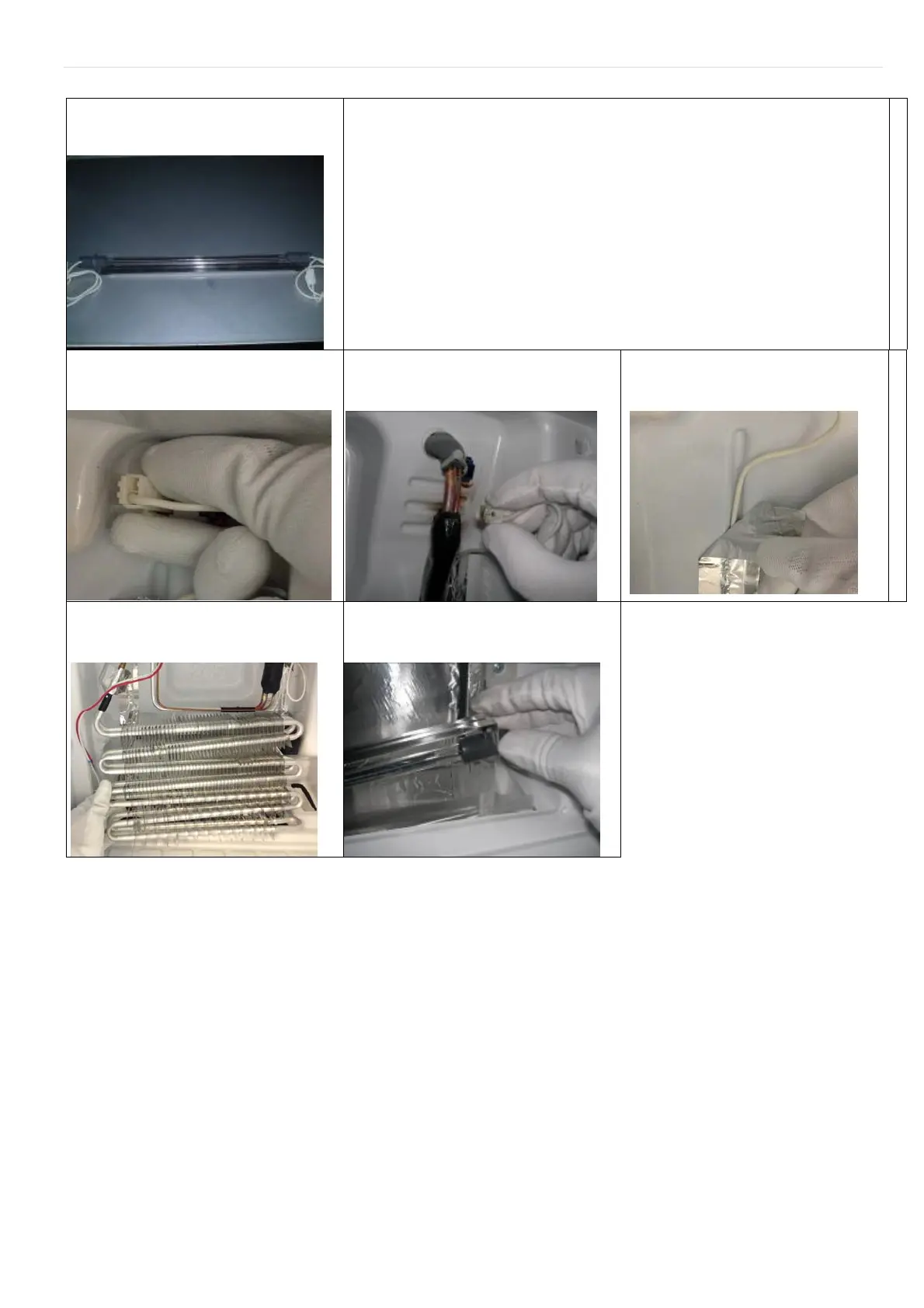

Glass Tube Heater.
Operating Procedure
- Follow step 1-10 of replacing Fan Blade.
- Follow step 1-2 of replacing Fan Motor.
1. Take out socket of Glass Tube Heater. 2. Take out socket of Glass Tube Heater. 3. Remove aluminium tape that cover
electrical wire.
4. Hold and lift Evaporator up. 5. Hold Glass Tube Heater at the rubber
connector.
6. After replacing Glass Tube Heater,
reverse the steps above.
