Part Name
Thermal Fuse.
Operating Procedure
- Follow step 1-10 of replacing Fan Blade.
- Follow step 1-2 of replacing Fan Motor.

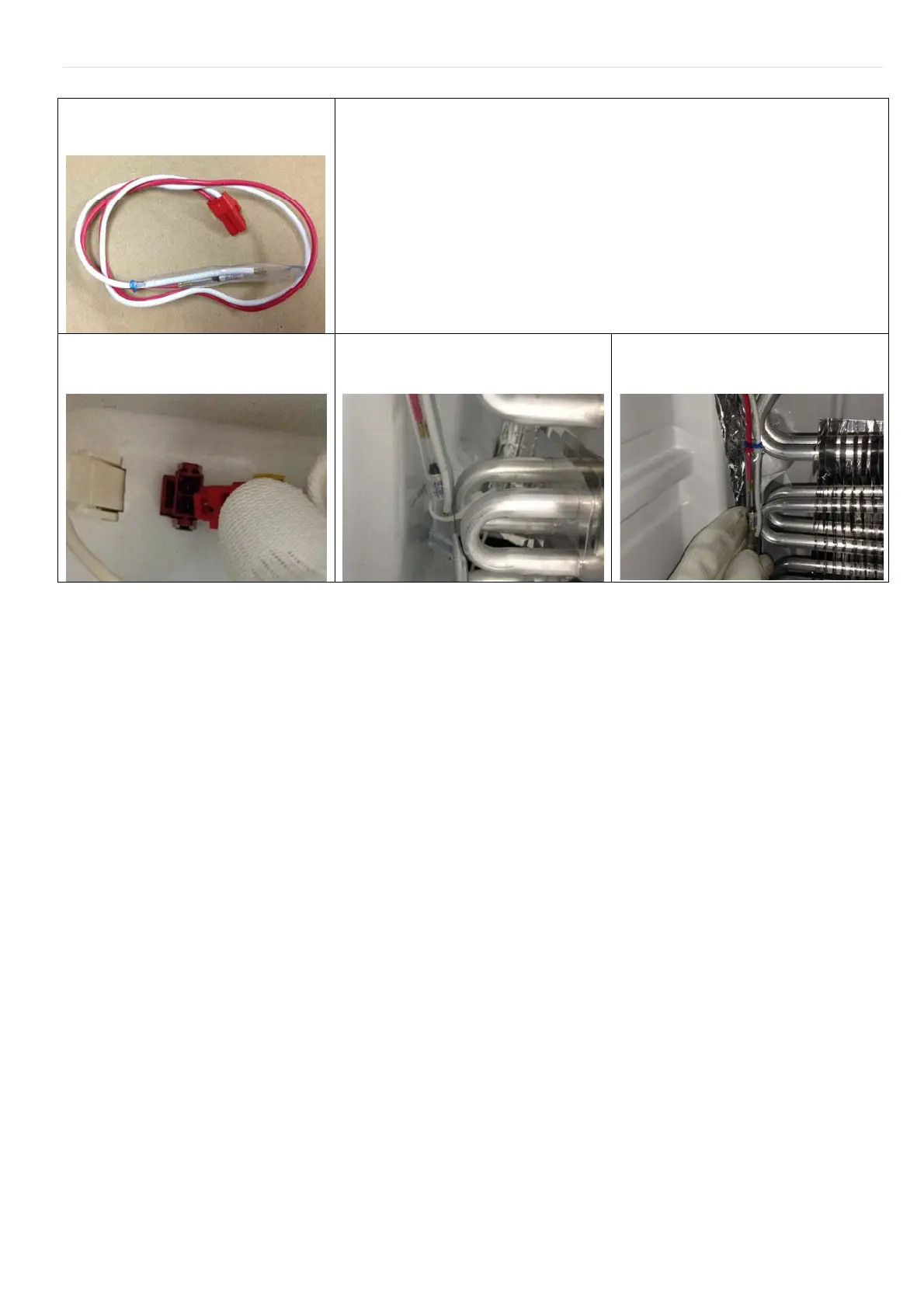

1. Take out socket of Thermal Fuse. 2. Cut out Cable Tie from Evaporator
tube.
3. Pull Thermal Fuse from Evaporator
tube.
4. After replacing Thermal Fuse, reverse the steps above.
