mabe ITV085ICER - Main PCB Component Replacement

Page 16
PRINTED : JAN’2015 REF NO. SM7715010-01-11
Part Name
Elec. Component Ass’y(Main PCB).

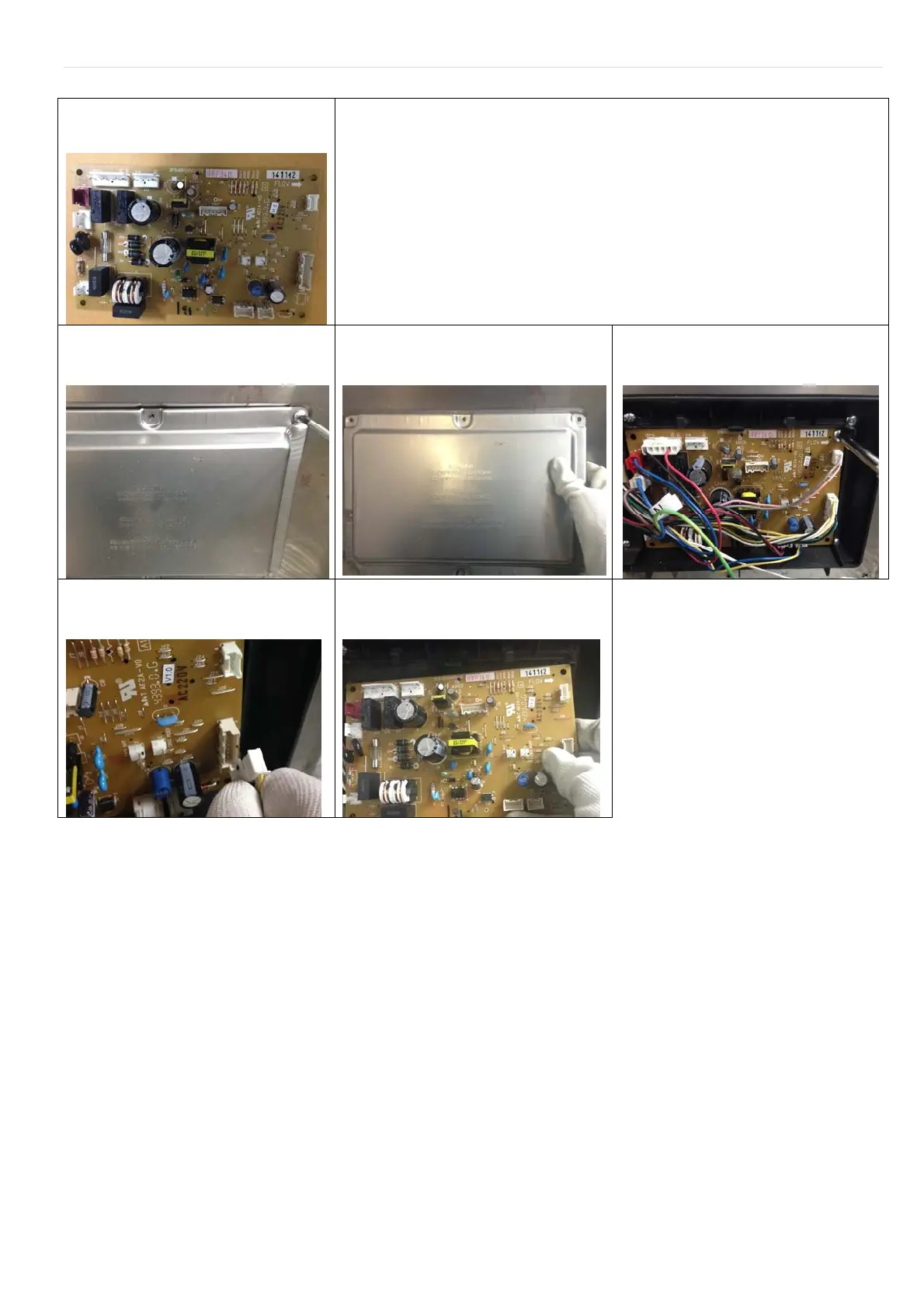

Operating Procedure
1. Release screws that Cover B. 2. Pull out Rear Cover B. 3. Release screws that Elec. Component
Ass’y(Main PCB)
4. Pull out Socket. 5. Pull out Elec. Component Ass’y(Main
PCB)
6. After replacing Elec. Component Ass’y., reverse the steps above.
