Other direction piping
• Cut with a nipper, the lid for piping according to the piping direc-
tion and then bend the pipe according to the position of wall hole.
When bending, be careful not to crash pipes.
• Connect beforehand the indoor/outdoor electric cable, and then
pull out the connected to the heat insulation of connecting part
specially.

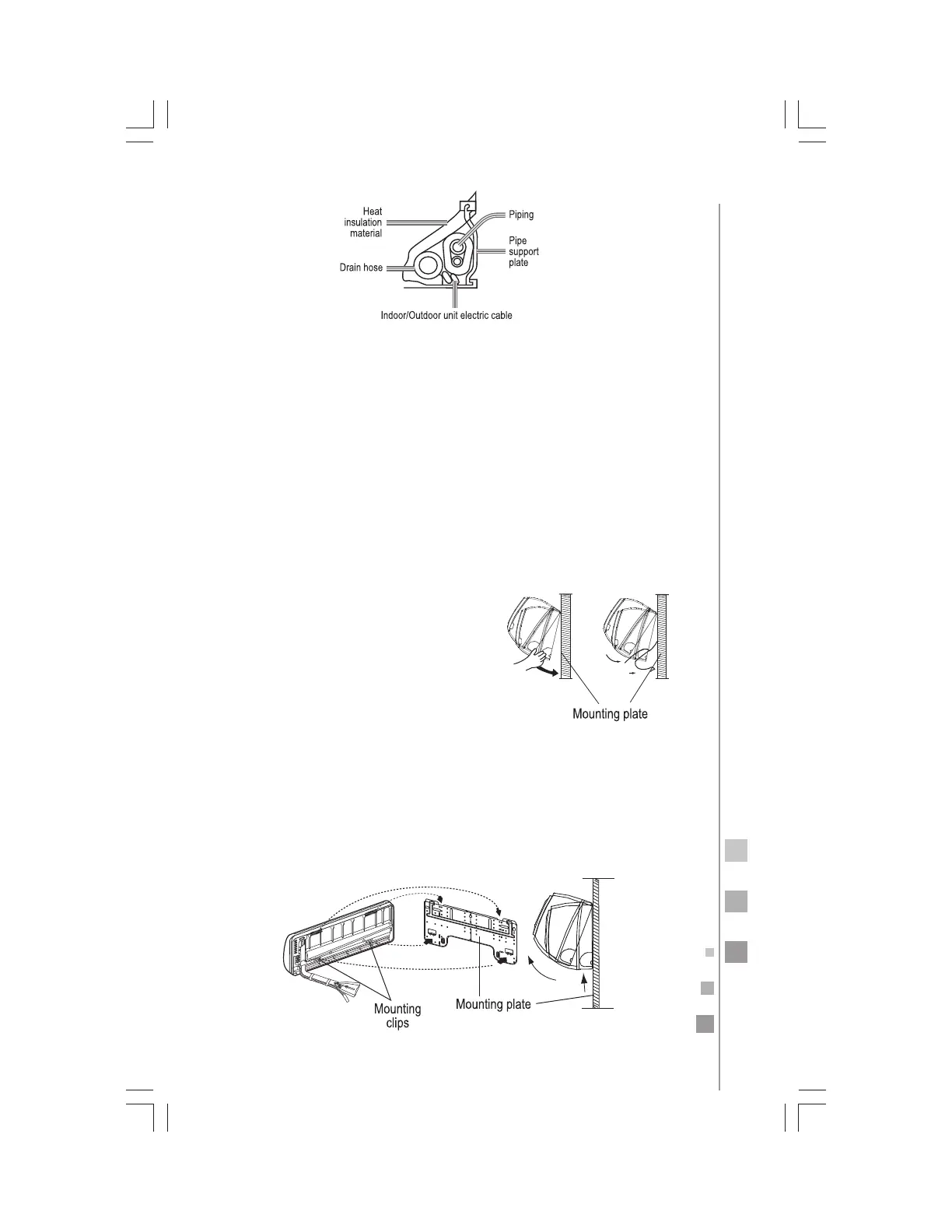

fixing the indoor unit body
• Hang surely the unit body onto the up-
per notches of the mounting plate.
Move the body from side to side to
verify its secure fixing.
• In order to fix the body onto the
mounting plate, hold up the body
aslant from the underside and then put
it down perpendicularly.
unloading of indoor unit body
• When you unload the indoor unit, please use your hand to arise
the body to leave agraffe, then lift the bottom of the body out-
ward slightly and lift the unit aslant until it leaves the mounting
plate.
• Indoor/outdoor electric cable and drain hose must be bound with
refrigerant piping by protecting tape.
