Getting started...
EN
16
Before you start
Assembly

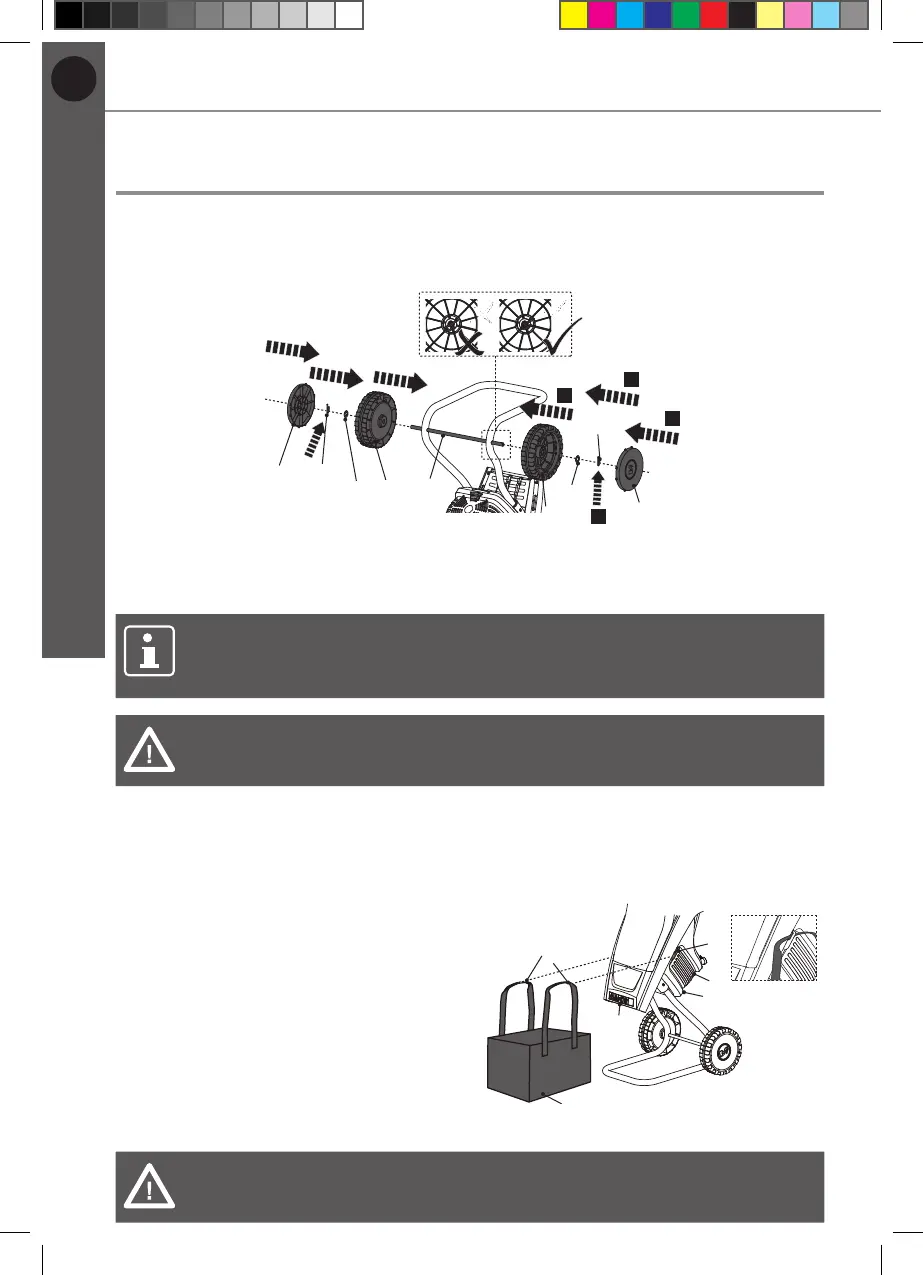

8. Attach the cover (13a) to the wheel (13). Make sure that the latches of the
cover (13a) are correctly engaged in the slots of the wheel (13) (Fig. 2, step
4). Use a rubber mallet to secure the covers all the way.
13
13
13b
13c
13a
12
13b
13c
13a
1.
2.
4.
3.
Fig. 2
9. Repeat the above steps (from 5 to 8) on the other wheel (13). Ensure that
wheels (13) can rotate smoothly on the wheel axle (12) afterward.
NOTE: Do not damage any part while using the rubber mallet. Put a
piece of fabric over the covers (13a), if necessary. Tap slightly at rst.
After assembly, the covers (13a) cannot be easily removed.
WARNING! Do not attempt to remove the covers (13a) and disassemble
the wheels (13) once they are assembled!
10. Carefully place the product on its wheels (13) and ensure that wheels (13)
can rotate smoothly.
Collection bag
1. Open the collection bag (5) fully and
place it under the discharge chute
(20).
2. Place the two hanging belts (5a) over
the kooks (3c) on the main unit (3)
(Fig. 3).
5a
5
20
3c
3
4
Fig. 3
WARNING! Ensure that the collection bag (5) or shredded material
never cover the air vents (4)!
