MAC 6000 Hydronic Heater
Trailer Axle Manual
2106 East Indiana Ave., Bismarck, ND 58504 U.S.A. • www.macheaters.com • +1-800-272-4604
22
Rev: 07.25.2013

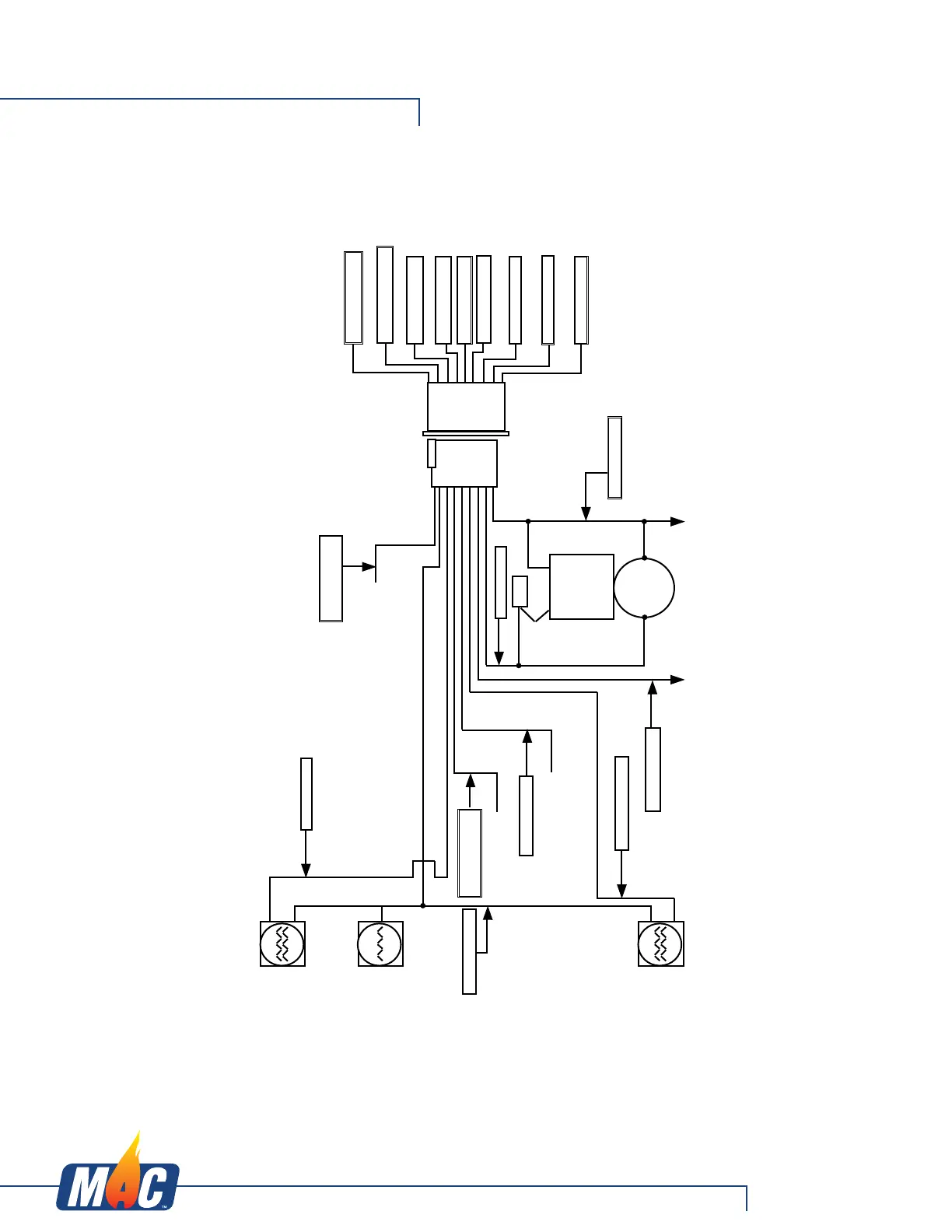

Wiring Diagram
+ -
Stop & Left Turn
Signal
Stop & Right Turn Signal
License, Tail &
Running Lights
Green - Terminal - 3
Brown - Terminal-6
Red - Terminal-5
Gray - Terminal - 8
Black - Terminal - 4
Yellow - Terminal-7
Auxiliary Circuit
Battery Charge
Auxiliary Circuit
Orange - Terminal-9
White - Terminal - 1
Blue - Terminal - 2
Electric
Brake
Auxiliary Circuit
Common Ground
White - Terminal - 1
Blue - Terminal - 2
Green - Terminal - 3
Black - Terminal - 4
Red - Terminal - 5
Gray - Terminal - 8
Yellow - Terminal - 7
Brown - Terminal - 6
TRAILER
TOW VEHICLE
Orange - Terminal - 9
