MAC 6000 Hydronic Heater
Trailer Axle Manual
2106 East Indiana Ave., Bismarck, ND 58504 U.S.A. • www.macheaters.com • +1-800-272-4604
23
Rev: 07.25.2013

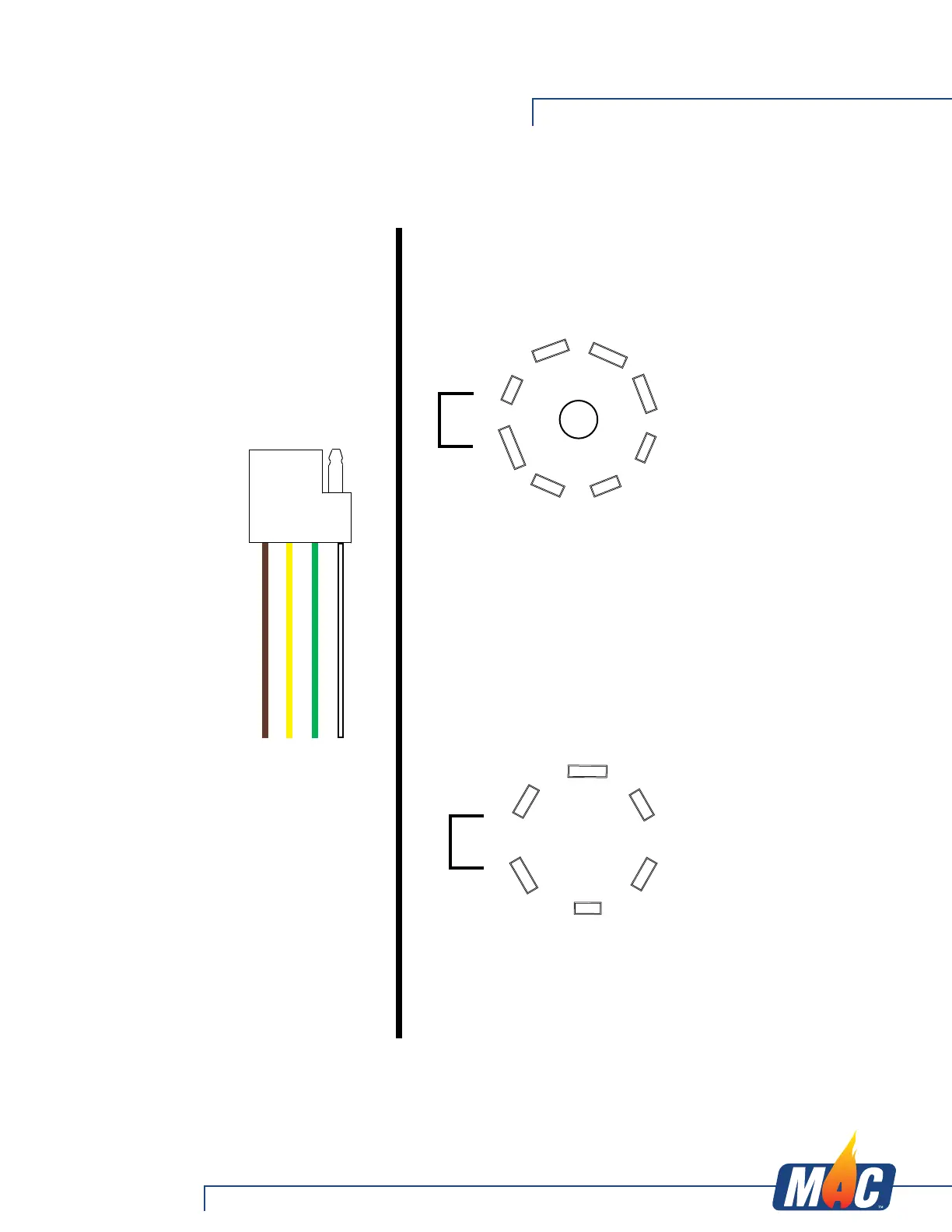

Wiring Diagram
CLEARANCE &
TAIL LIGHTS
STOP &
LH TURN
TRAILER LIGHTS PIGTAIL - DOES NOT OPERATE BRAKES
BROWN - STOP & RH TURN
YELLOW - STOP & LH TURN
GREEN - RUNNING LIGHTS
WHITE - GROUND
TRAILER BRAKE AND LIGHT COUPLER - OPERATES BRAKES
7-PIN COUPLER
9-PIN COUPLER
RED
BROWN
WHITE
BLACK
BLUE
GREEN
YELLOW
CLEARANCE &
TAIL LIGHTS
BATTERY
CHARGE
STOP &
RH TURN
BRAKES
AUXILIARY
GROUND
YELLOW
RED
BROWN
WHITE
BLUE
GRAY
AUXILIARY
AUXILIARY
ORANGE
BLACK
GREEN
BATTERY
CHARGE
STOP &
RH TURN
BRAKES
GROUND
AUXILIARY
STOP &
LH TURN
