MAC 6000 Hydronic Heater
Trailer Axle Manual
2106 East Indiana Ave., Bismarck, ND 58504 U.S.A. • www.macheaters.com • +1-800-272-4604
26
Rev: 07.25.2013
3500# Wheel End Components
CALLOUT DESCRIPTION PART NO
A Rubber plug for lubed grease caps 122065
B Dust cap, for 2" bore, super lube 122067
Dust cap, for 2" bore, non-lube 122099
C Cotter pin 122075
D Spindle Nut, 6 slot 122081
E Spindle washer, round ID 119214
E1 Spindle Washer, for spindle with D-Flat 119215
E2 Spindle locking tang washer 119216
Use E1 and E2 in place of C and E if spindle has no hole for cotter pin and has D-flat
F Outer brg cone, L44649 122089
Outer brg cup, L44610 125102
G Hub-drum, with cups and studs, 5 on 4.50" BC 126003
H Inner brg cone, L68149 122092
Inner brg cup, L68111 124296
I Grease seal, double lip, 1.72" ID x 2.565" OD 122087
J Brake Assembly, 10" x 2.25" LH 122258
Brake Assembly, 10" x 2.25" RH 122450
J Kits Shoe and Lining Kit for (1) Brake 136451
Magnet Kit for (1) brake, green wire 136454
Spring and hardware kit for (1) Brake 136452
Adjuster screw and spring kit for (1) brake 136453

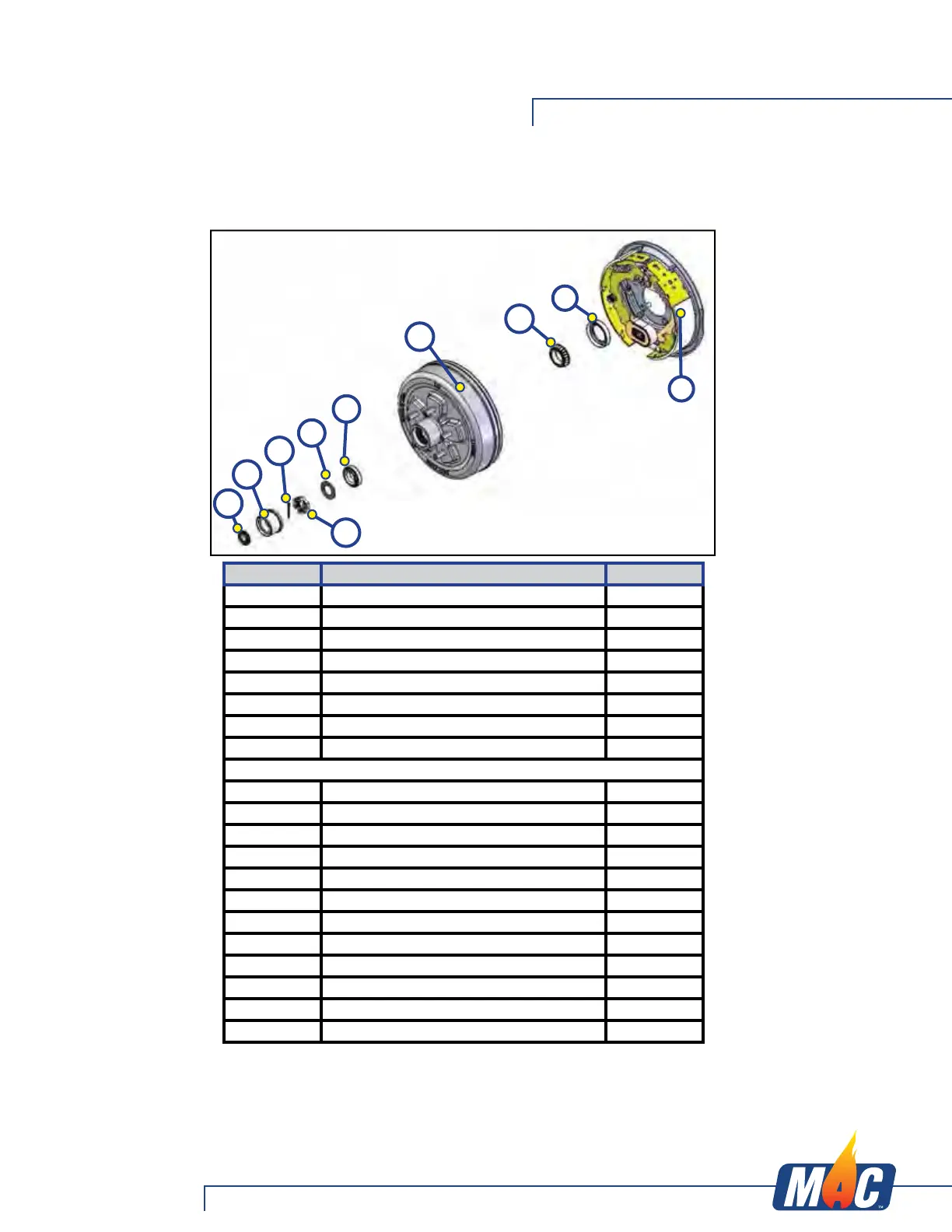

3500# WHEEL END COMPONENTS
B
G
F
E
D
C
J
I
H
A
To Next Page
