MAC 6000 Hydronic Heater
Trailer Axle Manual
2106 East Indiana Ave., Bismarck, ND 58504 U.S.A. • www.macheaters.com • +1-800-272-4604
27
Rev: 07.25.2013

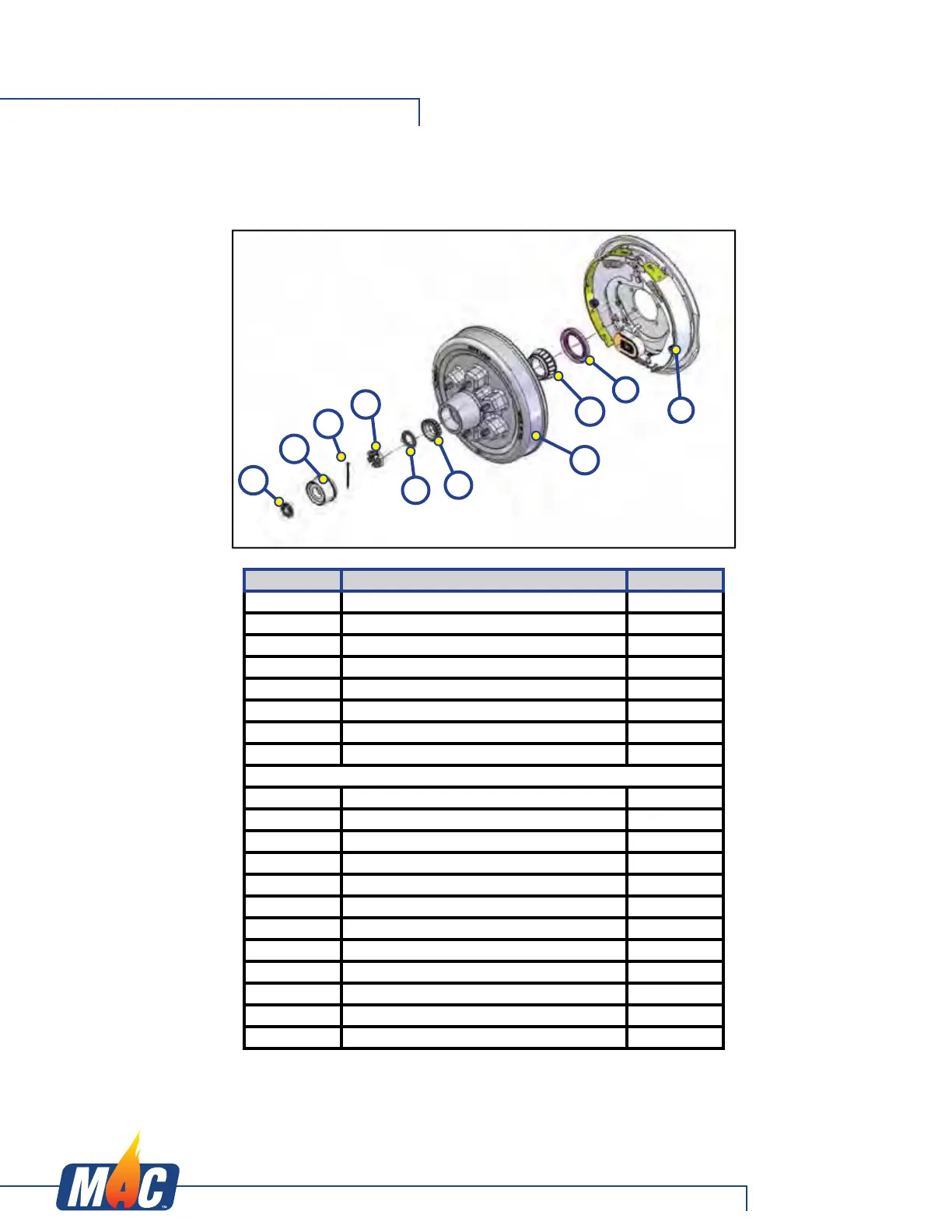

5200# Wheel End Components
CALLOUT DESCRIPTION PART NO
A Rubber plug for lubed grease caps 122065
B Dust cap, for 2.5" bore, super lube 122064
Dust cap, for 2.5" bore, non-lube 122071
C Cotter pin 122075
D Spindle Nut, 6 slot 122081
E Spindle washer, round ID 119214
E1 Spindle Washer, for spindle with D-Flat 119215
E2 Spindle locking tang washer 119216
Use E1 and E2 in place of C and E if spindle has no hole for cotter pin and has D-flat
F Outer brg cone, L44649 122090
Outer brg cup, L44610 124292
G Hub-drum, with cups and studs, 6 on 5.50" BC 122093
H Inner brg cone, LM67048 122066
Inner brg cup, LM67010 124287
I Grease seal, double lip, 2.25" ID x 3.376" OD 122088
J Brake Assembly, 12" x 2" LH 122259
Brake Assembly, 12" x 2" RH 122451
J Kits Shoe and Lining Kit for (1) Brake 136444
Magnet Kit for (1) brake, black or white wire 136447
Spring and hardware kit for (1) Brake 136445
Adjuster screw and spring kit for (1) brake 136453
5200# WHEEL END COMPONENTS
B
G
F
E
D
C
J
I
H
A
