MacAllister MTC650 - Making Mitre or Diagonal Cut; Cutting an Angle or Bevel

Fig. 15
Fig. 16
MTC650 by MacAllister
27
In more detail…
Product functions
Cutting an angle or bevel
Use the vertical fence (3) if you wish to cut an angle or bevel on the tile edge.
Raise the vertical fence (3) approx. 45°.
Fold out the holder and set to the desired angle in the locators. Then make the
cut as before.
Internal or external bevel cuts can be made by turning the tile face up or down
(internal – eg. wall corner; external – eg. window reveal).

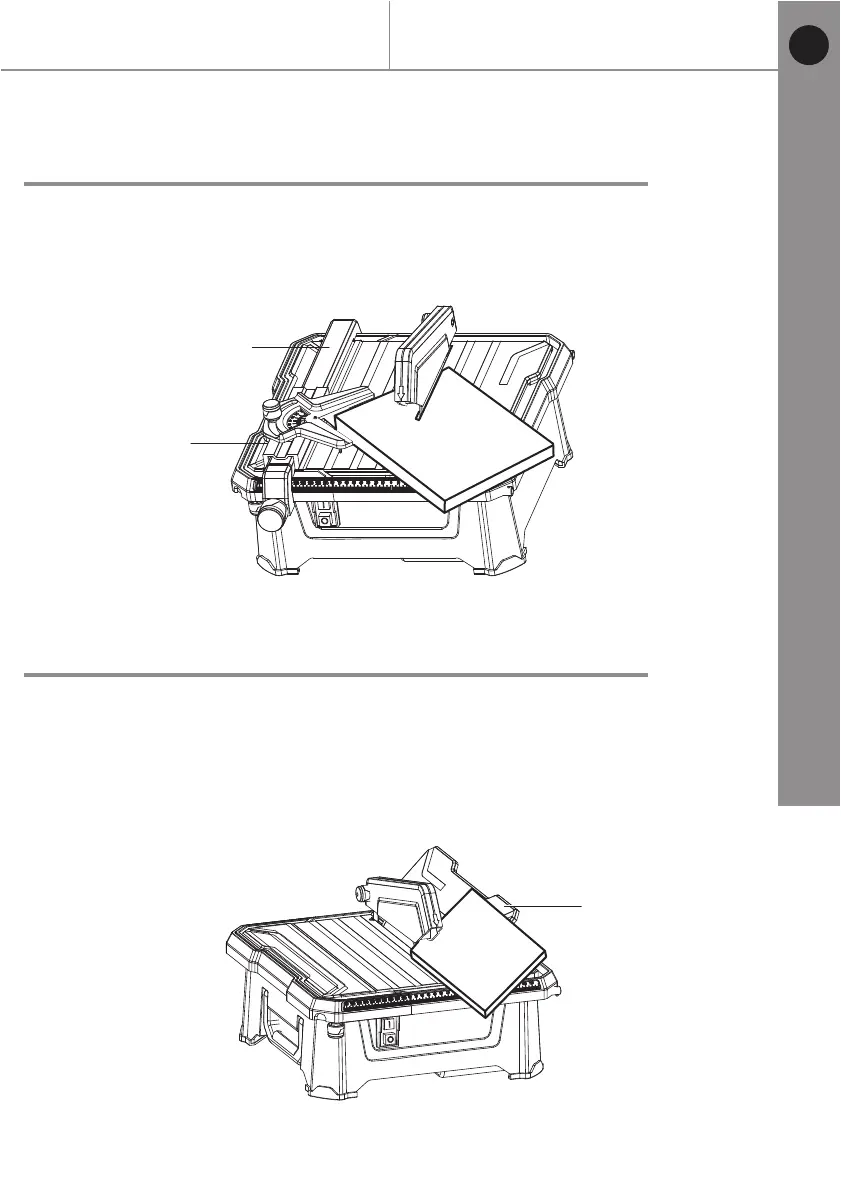

Making a mitre or diagonal cut
Follow the same procedure for a straight cut but use the mitre cutting guide (10)
in conjunction with the parallel cutting guide (11). The mitre cutting guide (10)
simply clips onto the parallel cutting guide (11).
Make sure that the tile is held firmly in the guide before making the cut.
10
11
3
EN
