MacAllister MTC650 - Removing the Hexagon Nut and Flange

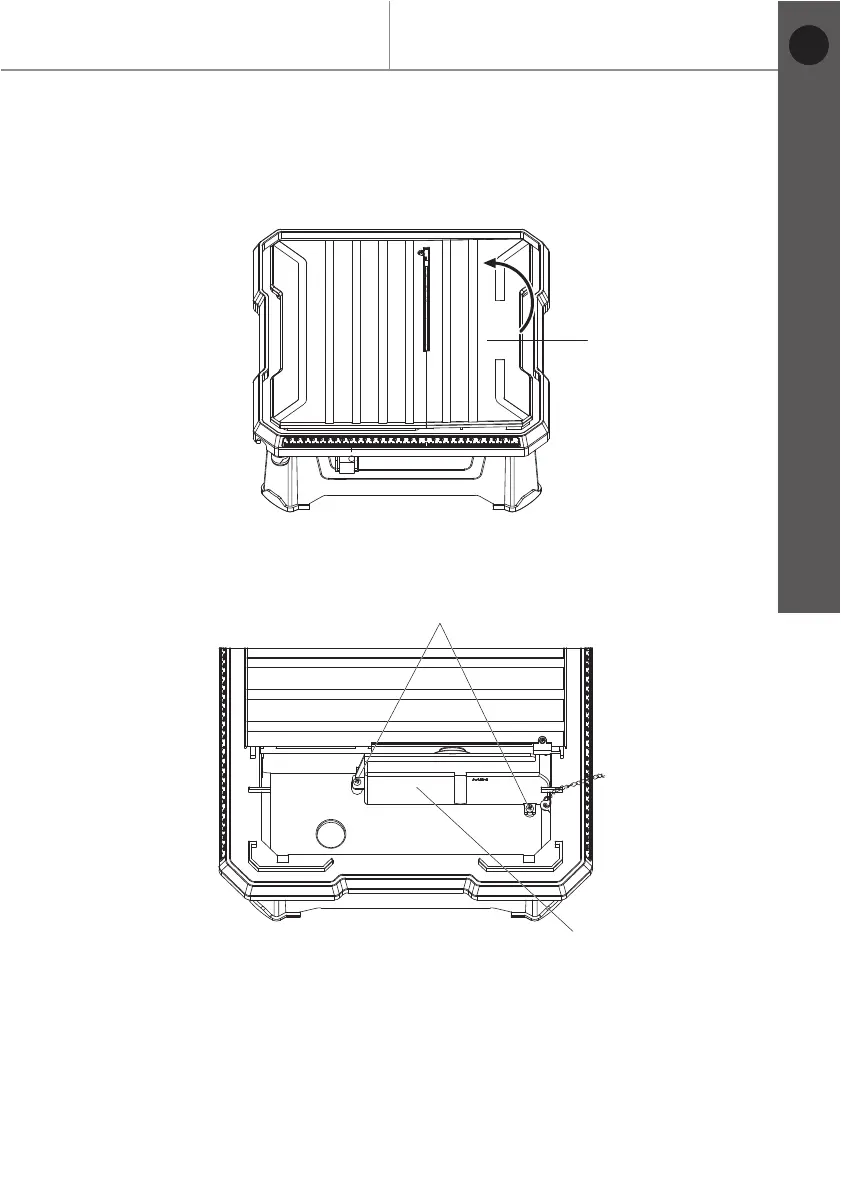

Fig. 1
Fig. 2
Before you start
> Unplug the tile cutter from the mains supply.
> Raise the vertical fence (3) approx. 45° and remove.
> Loosen cross-screws (19) with the Phillips screwdriver (not supplied) and pull
off lower protective guard (17).
> Attach the straight spanner (20) (supplied) to the hexagon nut (21).
> Lock motor shaft (25) to prevent turning using angled spanner (23) (supplied).
> Turn the hexagon nut (21) anti-clockwise.
> Remove the hexagon nut (21) and outer flange (22).
MTC650 by MacAllister
Getting started...
13
3
17
19
EN
