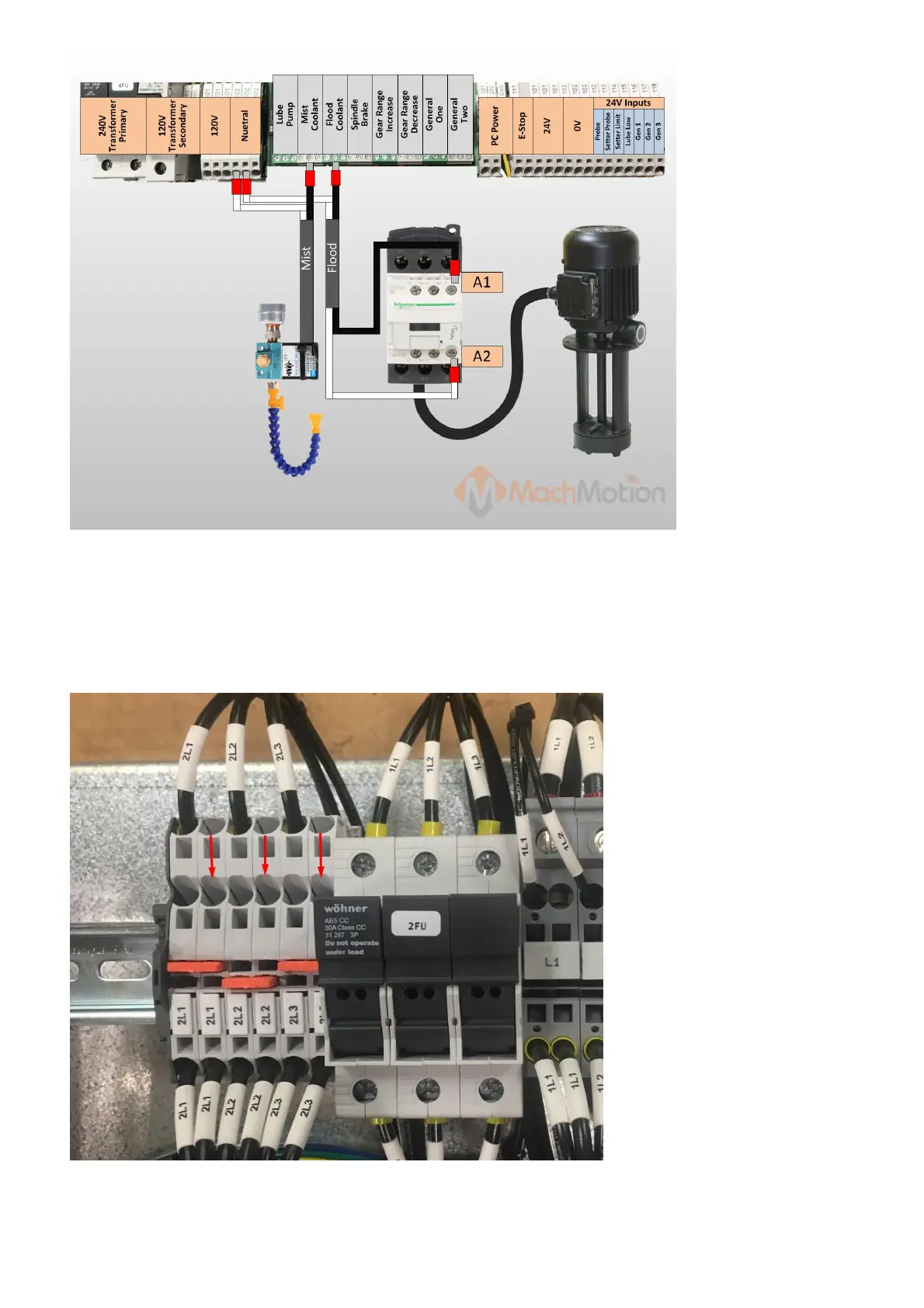

Note: The contactor shown above is not included. Use the original contactor on your machine.
You can power up to a 0.5 hp 3 phase coolant motor. To run a 3 phase motor, the back panel will have to be powered
with 3 phase. Run 3 wires from 2L1, 2L2, and 2L3 on the top of the back panel to the contacts on on your contactor.
Coolant Pump Power
Wiring Spindle Brake
