MachMotion 2000 Series - System Configuration; Configuration Overview; Axis Configuration

1. Remove everything in the electrical enclosure besides the original transformer.
2. Remove the old cables running to the motors.

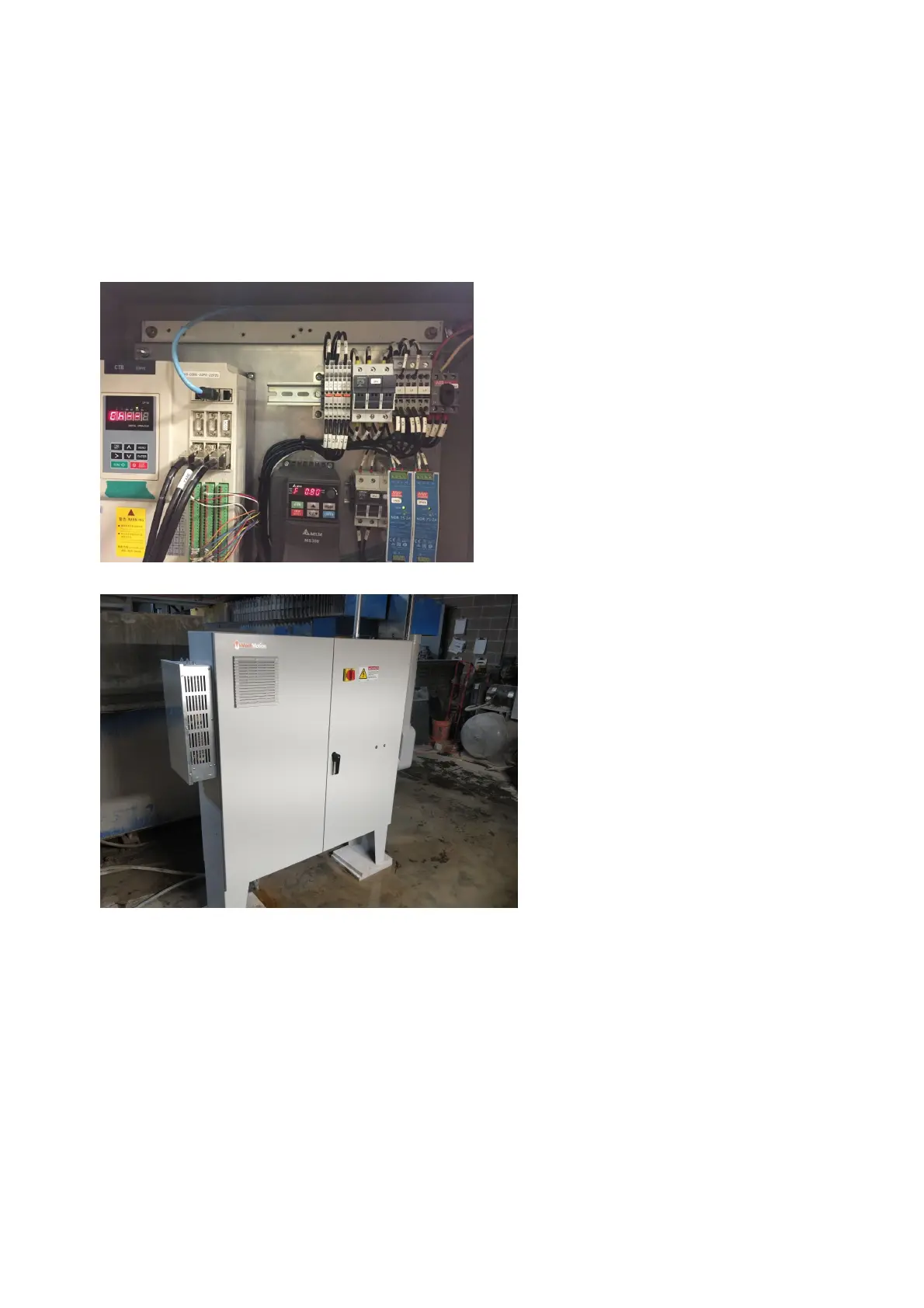

1. Mount the new electrical enclosure to the machine or if you just received a back panel it must be mounted
similar to the image below.
(Back panel)
Mount Back Panel
Remove old components
Mount the new panel
