MachMotion 2000 Series - Axis Mapping

(MachMotion Full Cabinet - Apollo III Motion Controller)
See the 2000 Series Mounting Arm Manual to mount the arm and control.

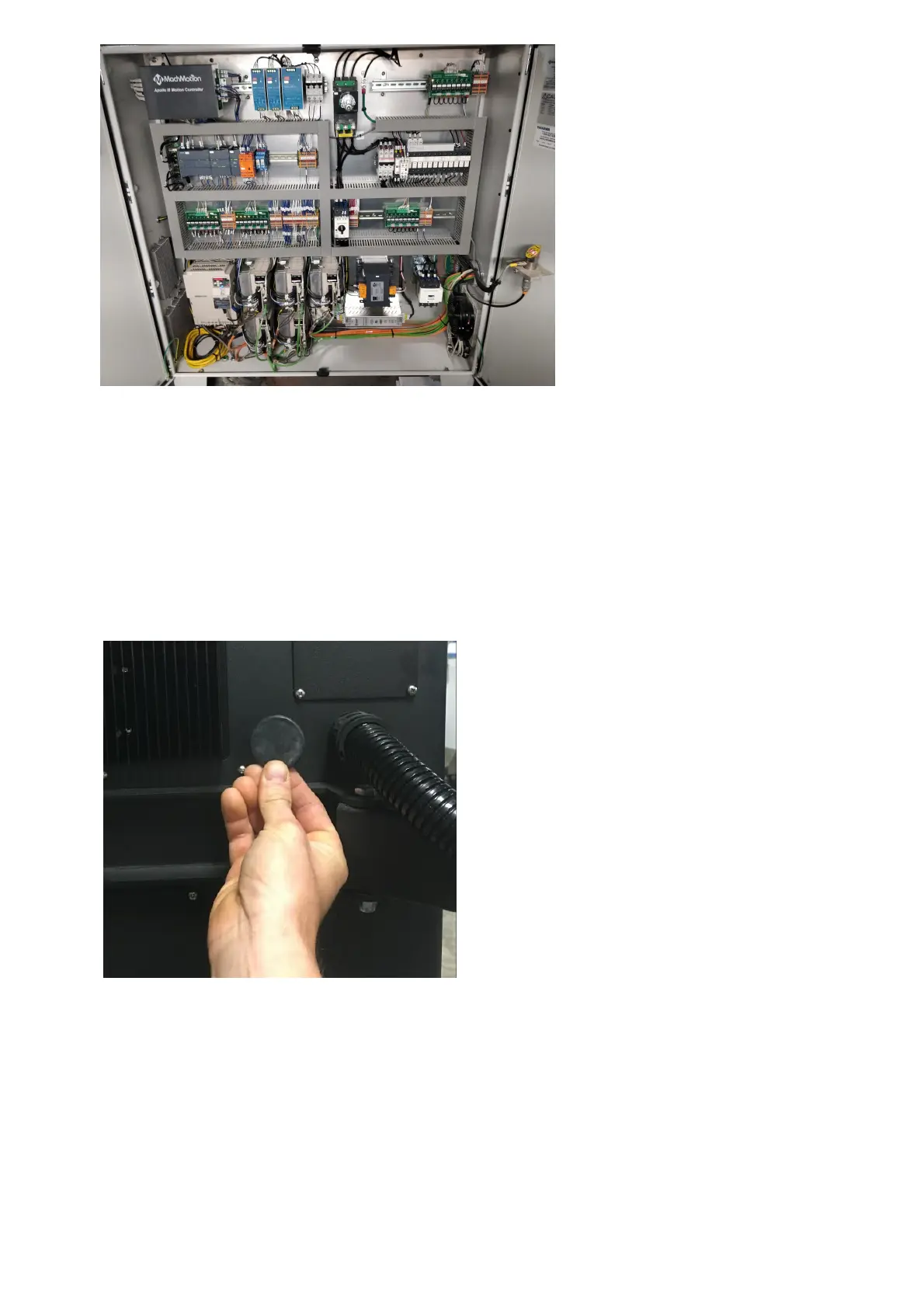

1. Remove round, rubber plug from the back of the control. Run conduit from the control to the back panel or
electrical enclosure
.
2. Connect ethernet cables, power connector cable, and E-stop cables into the control as shown below. (If you
have a Apollo III Motion Controller you will not need the EtherCAT blue cable)
Mount Control
Connect Control and Power
Connect Cables to the Control
