MachMotion 2000 Series - Axis Mapping

After motors are enabled, they can be assigned to axes. An axis must have one master motor and can support up to
five slave motors.

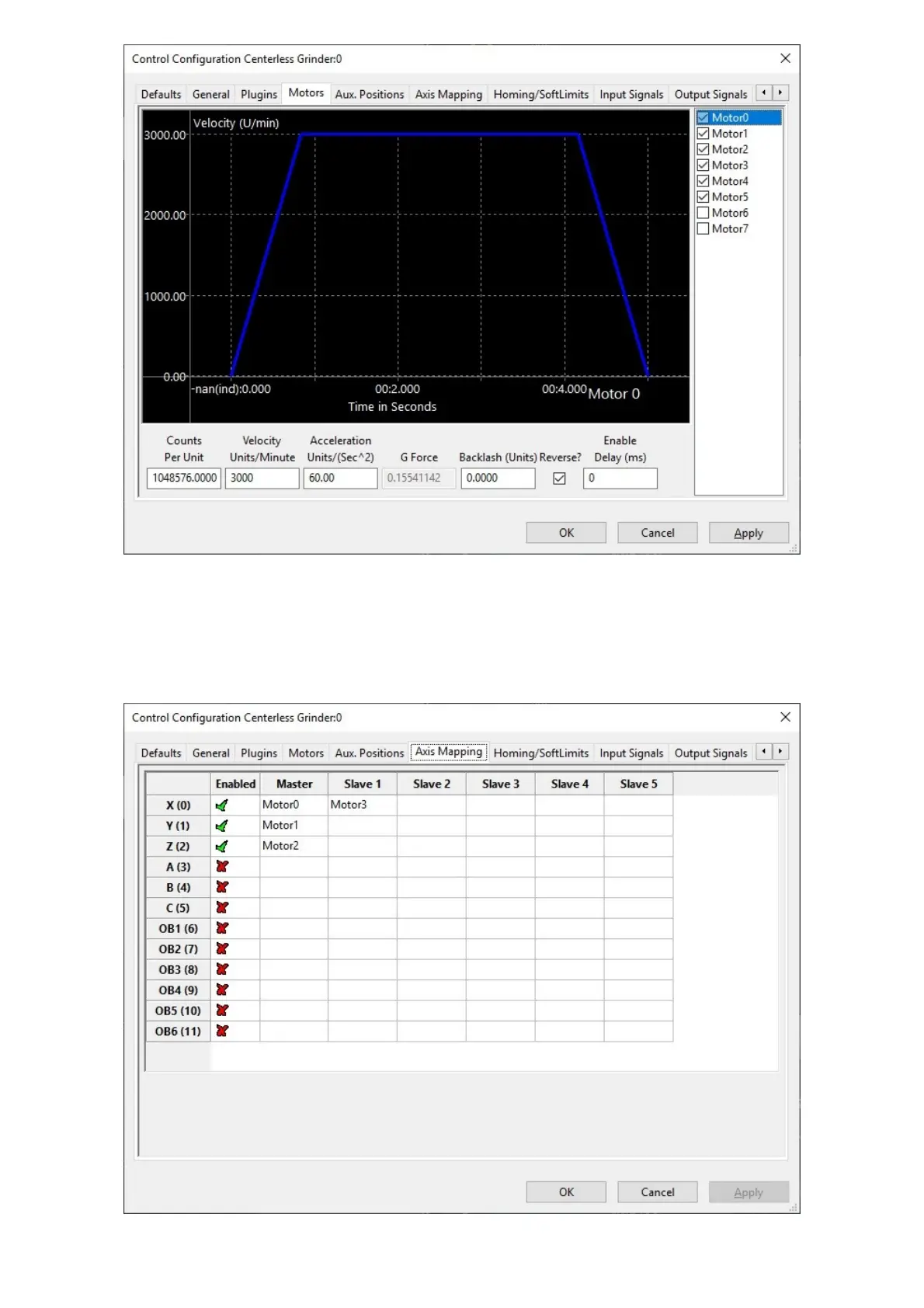

1. On the menu bar, click Configure -> Control, then select the Axis Mapping tab.
2. Enable the needed axes by checking the checkbox in the first column next to the axis name.
3. Associate the enabled motors to their applicable axis.
4. Press Apply to save any changes.
