Macintosh SE - Page 41

Take Apart Logic Board - 13
1 Carefully pull the video
board straight off the
neck of the CRT.
2 Disconnect these cable
connectors from the
logic board:
• Hard drive data cable
(if present)
• Internal floppy drive
cable(s)
• Power supply cable
Note: You must first
depress the holding clip
to remove the power
supply cable.

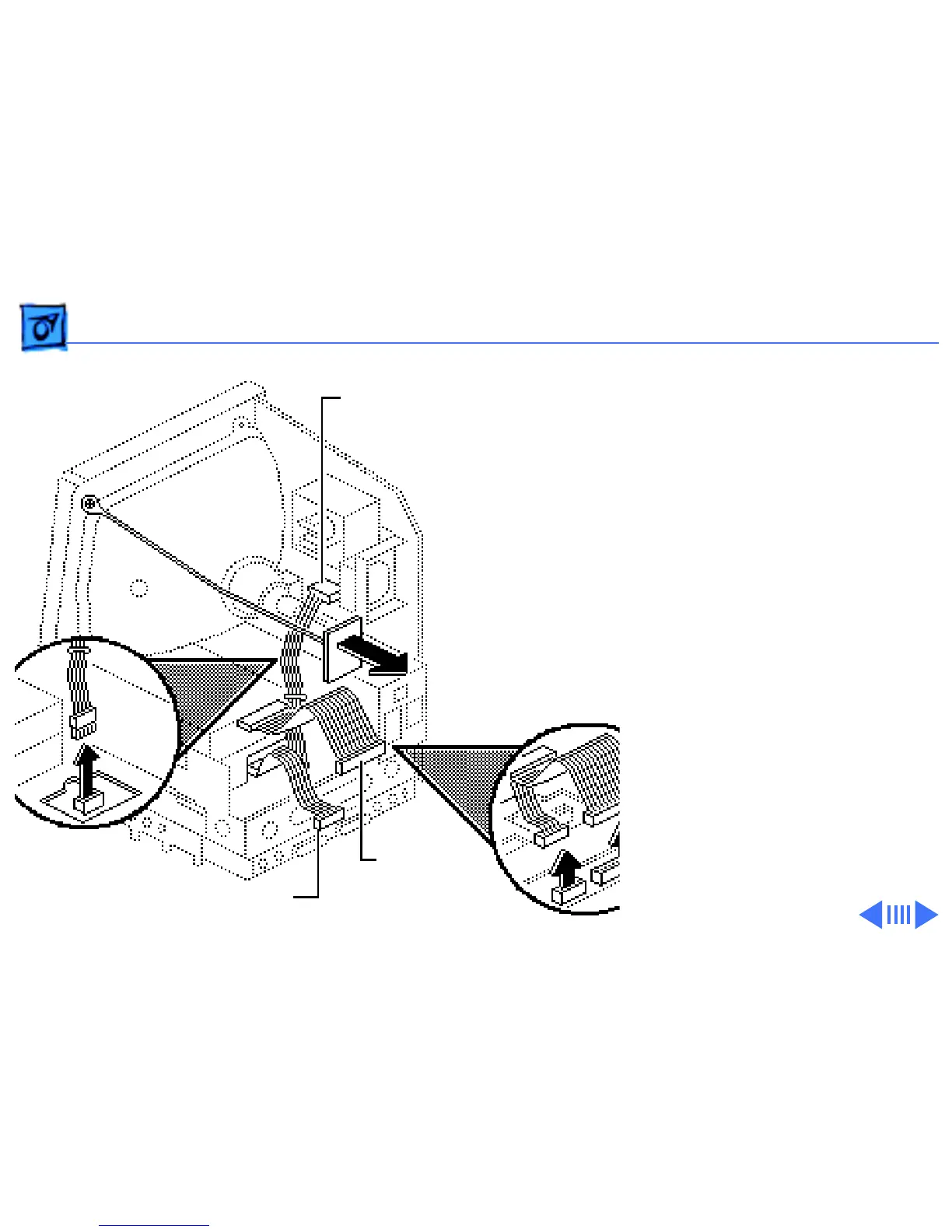

Power Supply Cable
Floppy Drive Cable
Hard Drive
Data Cable
