Take Apart Upper Floppy Drive - 27

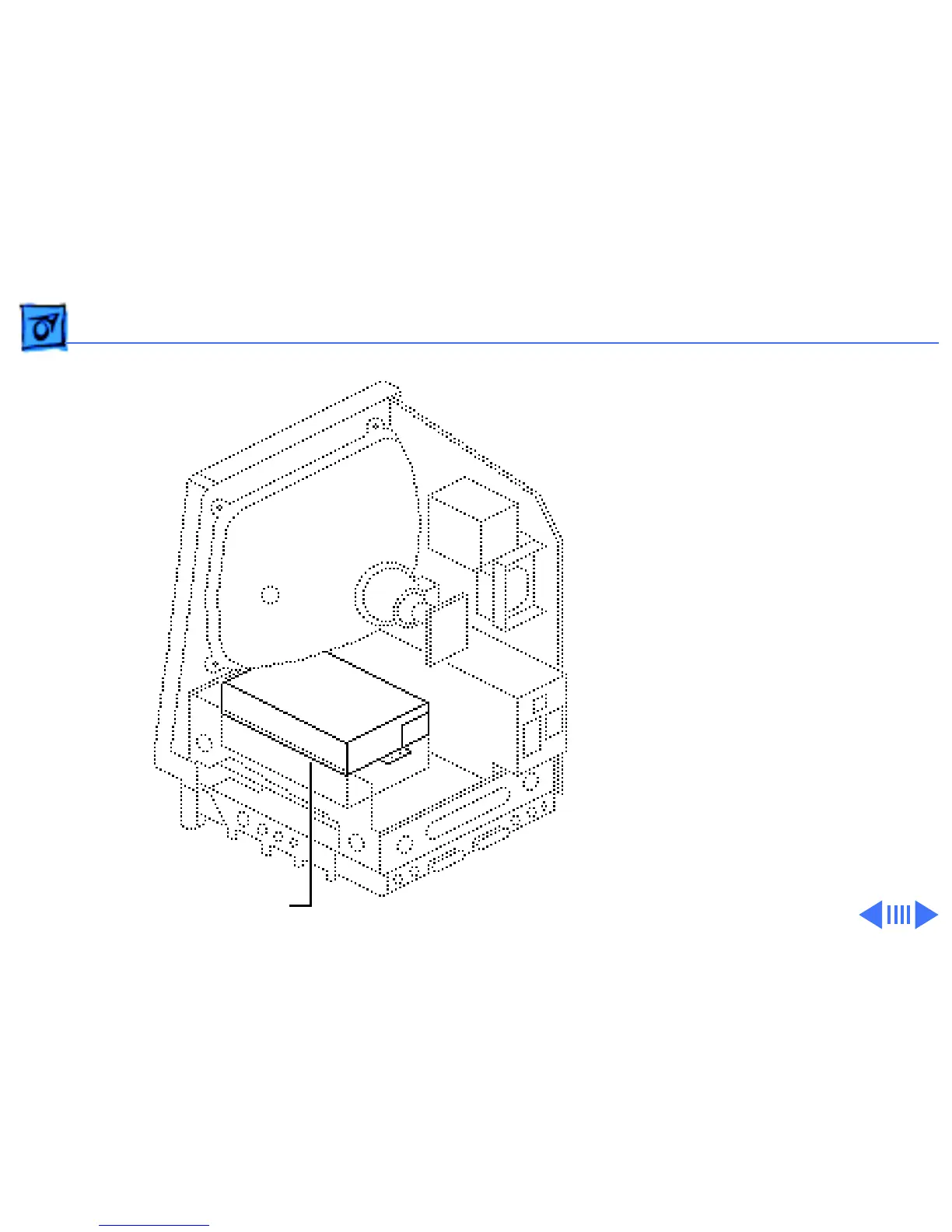

Upper Floppy
Drive
Before you begin,
• Remove the cover
• Discharge the CRT
• Remove the video board
Upper Floppy Drive
