Take Apart Fan Assembly - 32

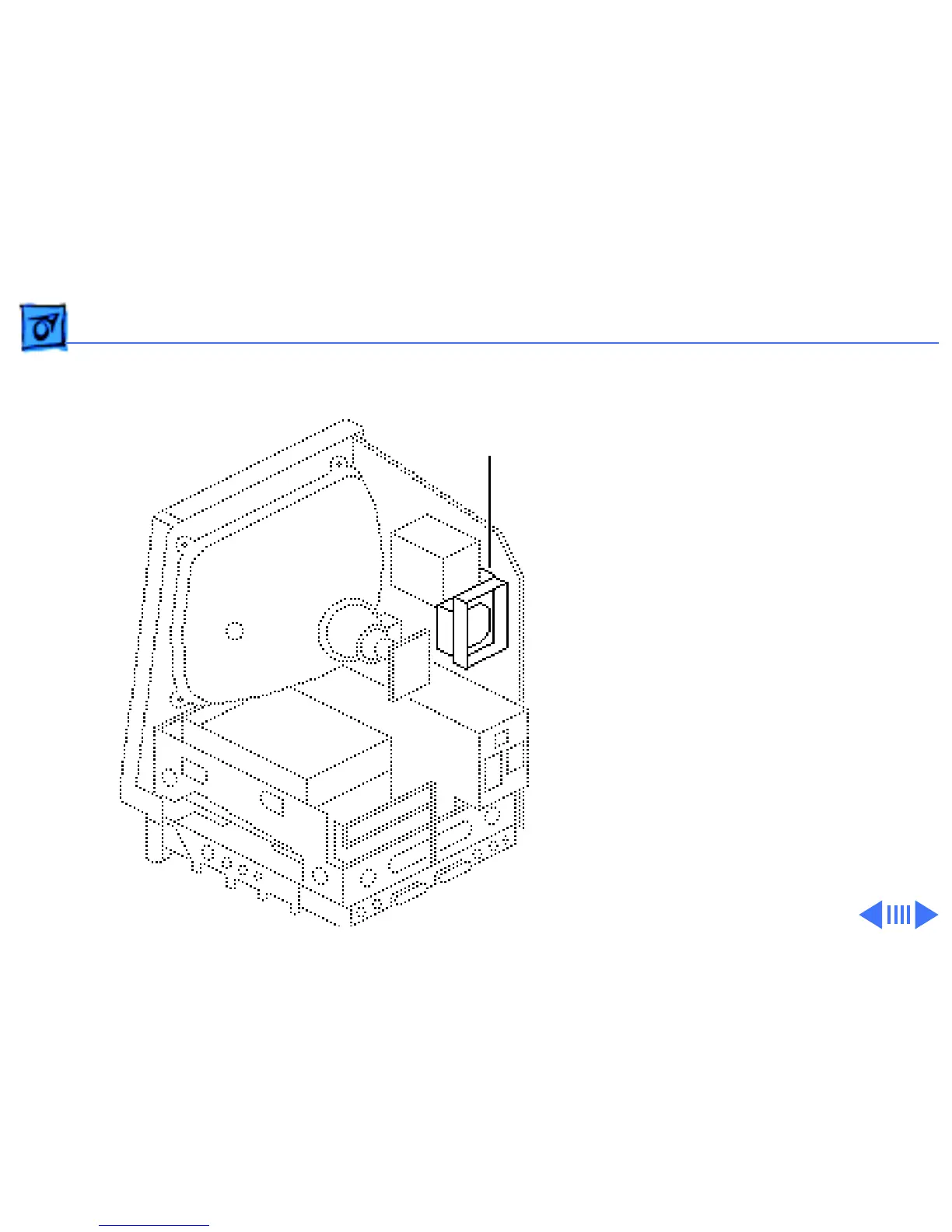

Fan Assembly
Before you begin,
• Remove the cover
• Discharge the CRT
• Remove the video board
• Remove the analog board
and power supply.
Fan Assembly
