Macintosh SE - Page 45

Take Apart Video Board - 17

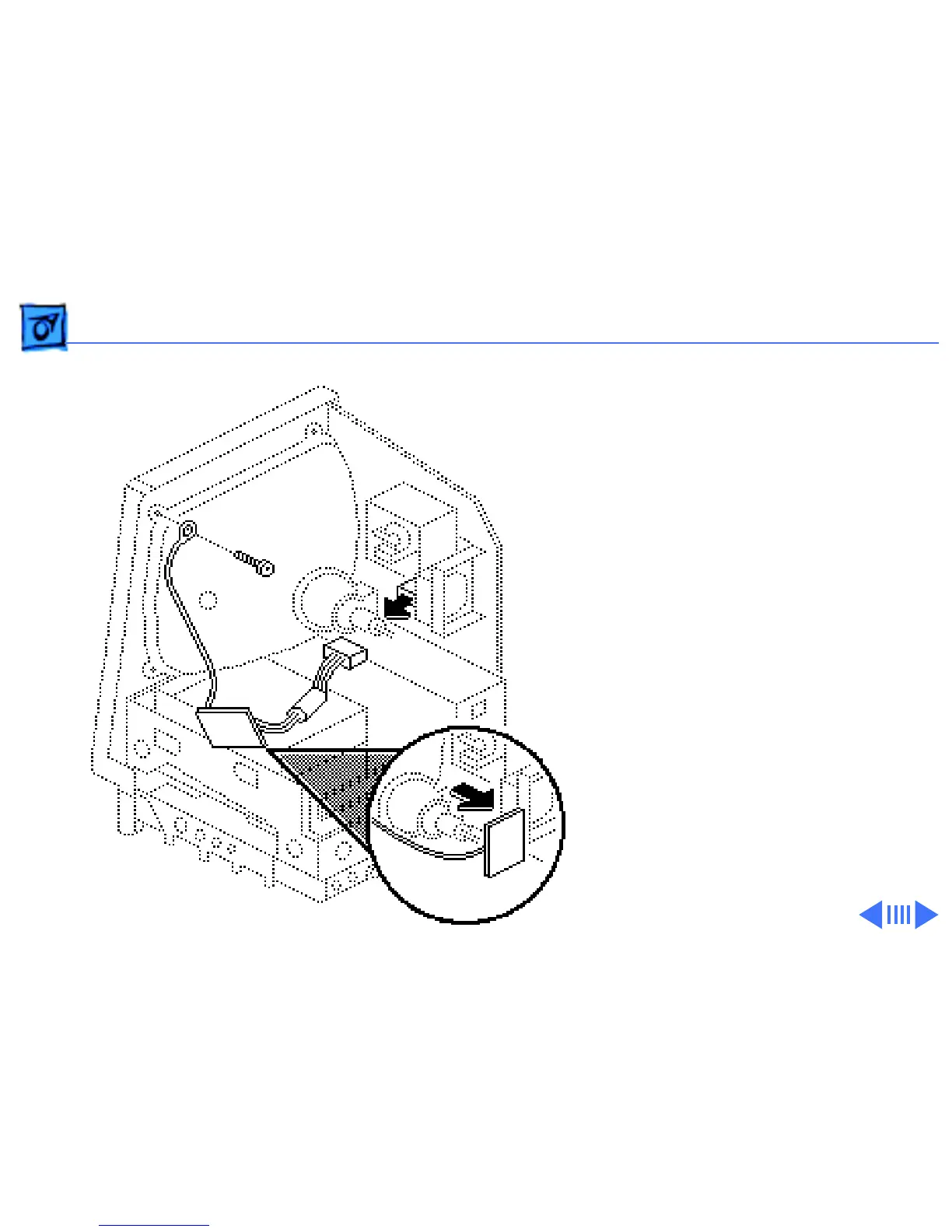

1 Carefully pull the video
board straight off the
neck of the CRT.
2 Disconnect the video
board connector from the
analog board.
3 Remove the Torx screw
and video ground wire
from the upper-left
CRT mounting bracket.
Replacement Note: If you
replace the video board,
perform the video
adjustment procedure. See
“Video” in Adjustments.
