Macintosh SE - Page 50

Take Apart Hard Drive - 22
Warning: Never use a
grounding wriststrap until
after discharging the CRT.

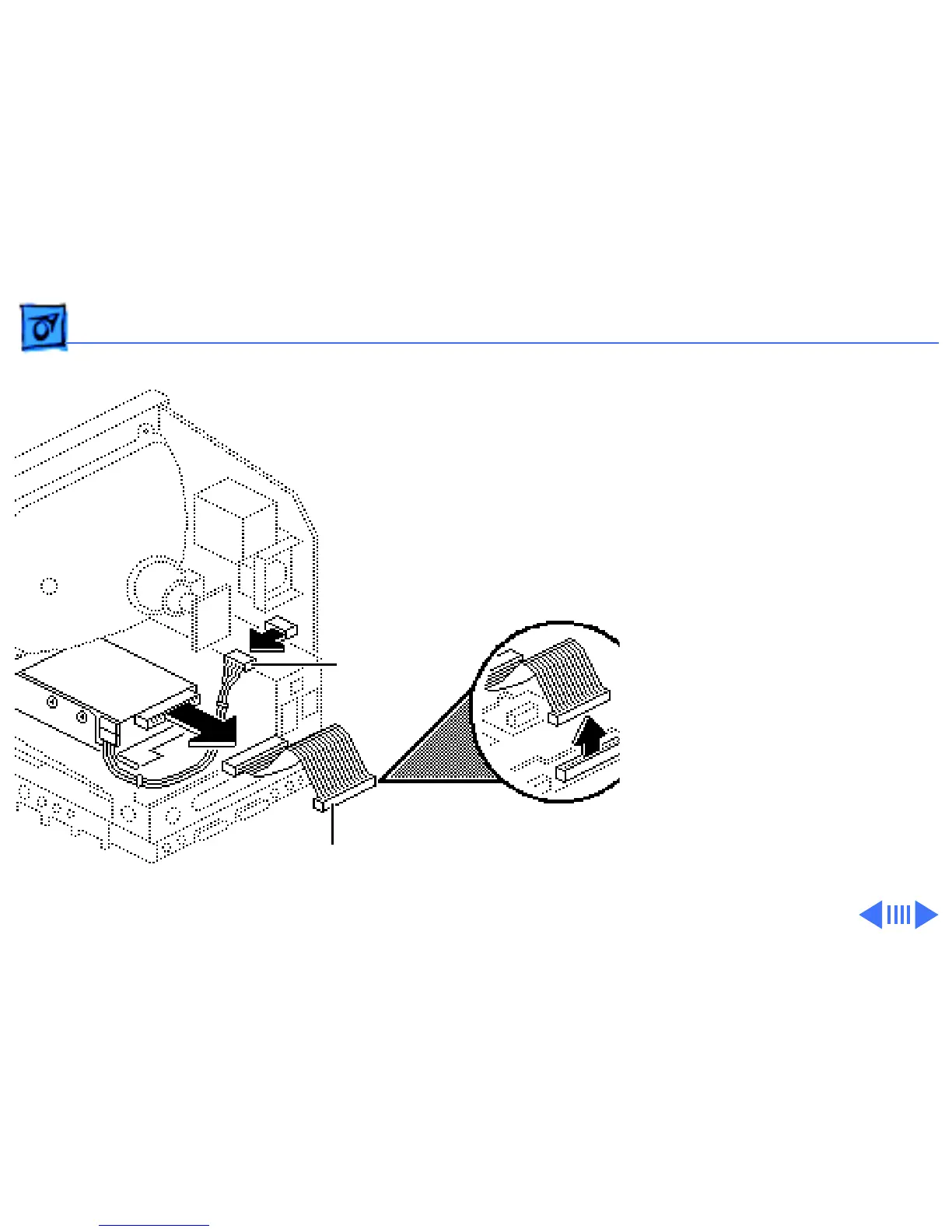

1 Disconnect the hard
drive data cable from the
hard drive and the logic
board. Keep the cable.
2 Disconnect the hard
drive power cable from
the analog board.
Hard Drive Data Cable
Hard Drive
Power Cable
