Upgrades Memory Upgrade - 2
Note:
Two logic boards are
available for the Macintosh
SE. The original board uses a
solder-type resistor to
identify system memory
configurations; a resistor is
installed in R35 for 1 MB
and in R36 for 2 MB. The
revised logic board uses a
jumper to identify system
memory.

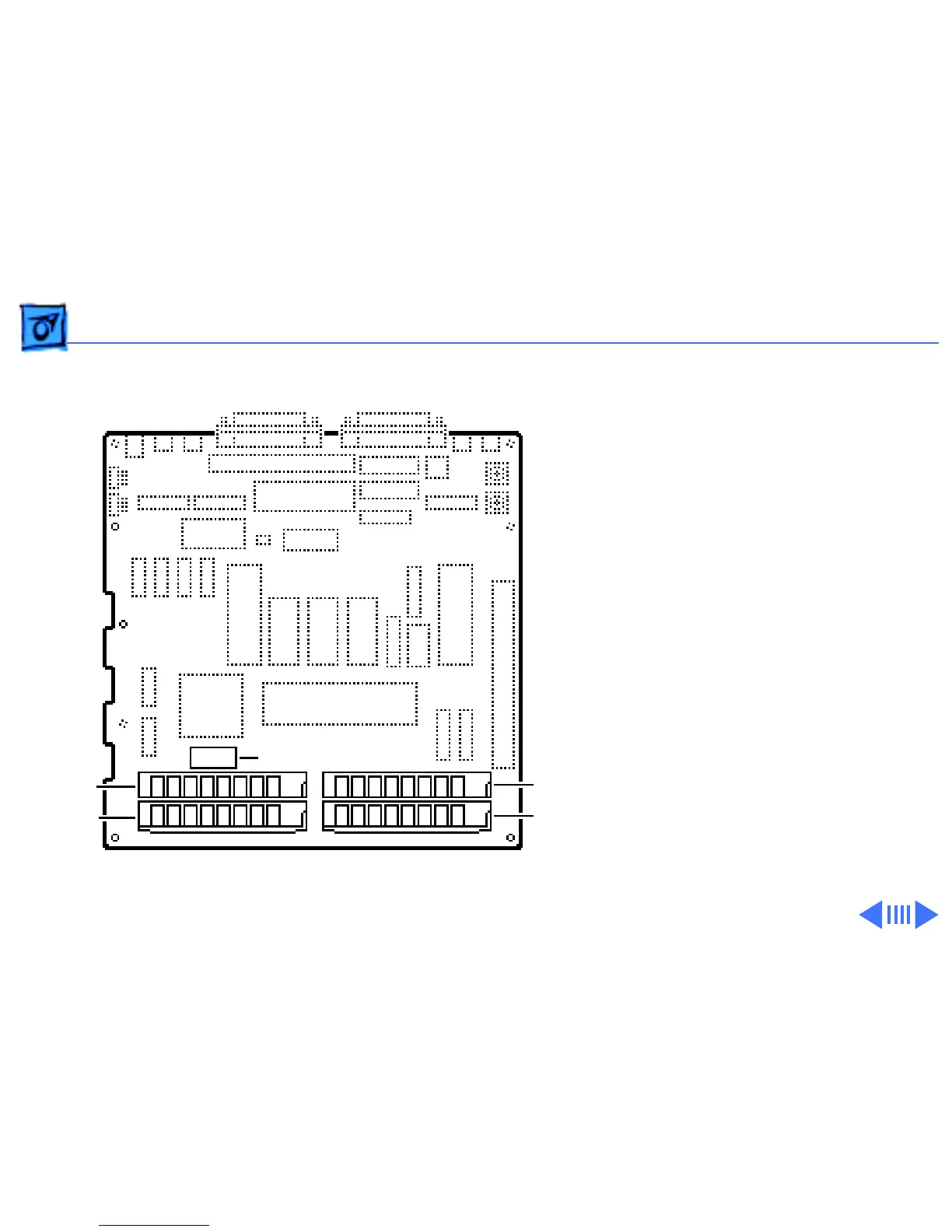

Resistor/Jumper
Slot 3
Slot 2
Slot 4
Slot 1
