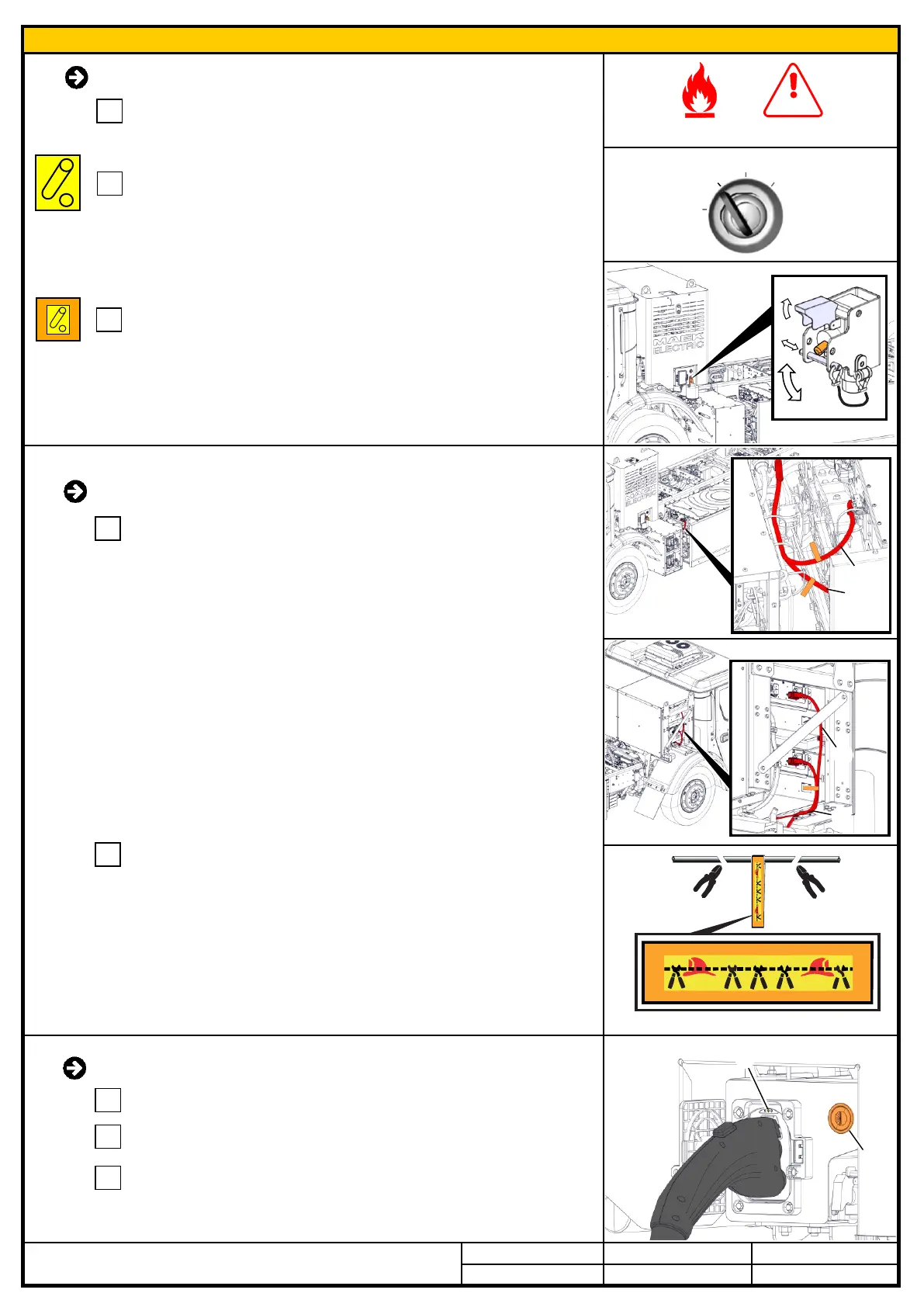

Mack LRBE - Disable Direct Hazards;Safety Regulations

If the truck is charging
Unlock the cab.
Press the stop button (1) and wait for the steady yellow light (2) on
the charging inlet.
Remove the charging plug from the charging inlet when the yellow
light (2) turns off.
1
2
3
Identiicationnumber
Versionnumber Pagenumber
800077265
06/2021
4
.
If unable to perform the primary procedure
Locate the communication cable harness (low voltage) (1)
connected to any of the traction batteries.
1
Cut the communication cable harness on each side of the label
to disconnect the traction voltage supply from the traction batteries.
2
Note
Cutting at any of the locations shown will disable the traction voltage
supply.
3.Disabledirecthazards/safetyregulations
Check the instrument cluster for any of the symbols (1) and (2)
appearing with a beep sound. If yes, a thermal runaway is detected
in the lithium-ion batteries.
Turn off the ignition and remove the key.
1
2
3
1 2
Turn off the chassis switch (up) to intiate the high voltage
disconnection process.
RUN
START
OFF
ACC
STOP
Primary procedure
Note
All the components are designed to discharge their own capacitance
within five seconds.
ON
OFF
1
1
1
1
1
2
