Creative Reference Multimedia Monitors
Creative Reference Multimedia Monitors

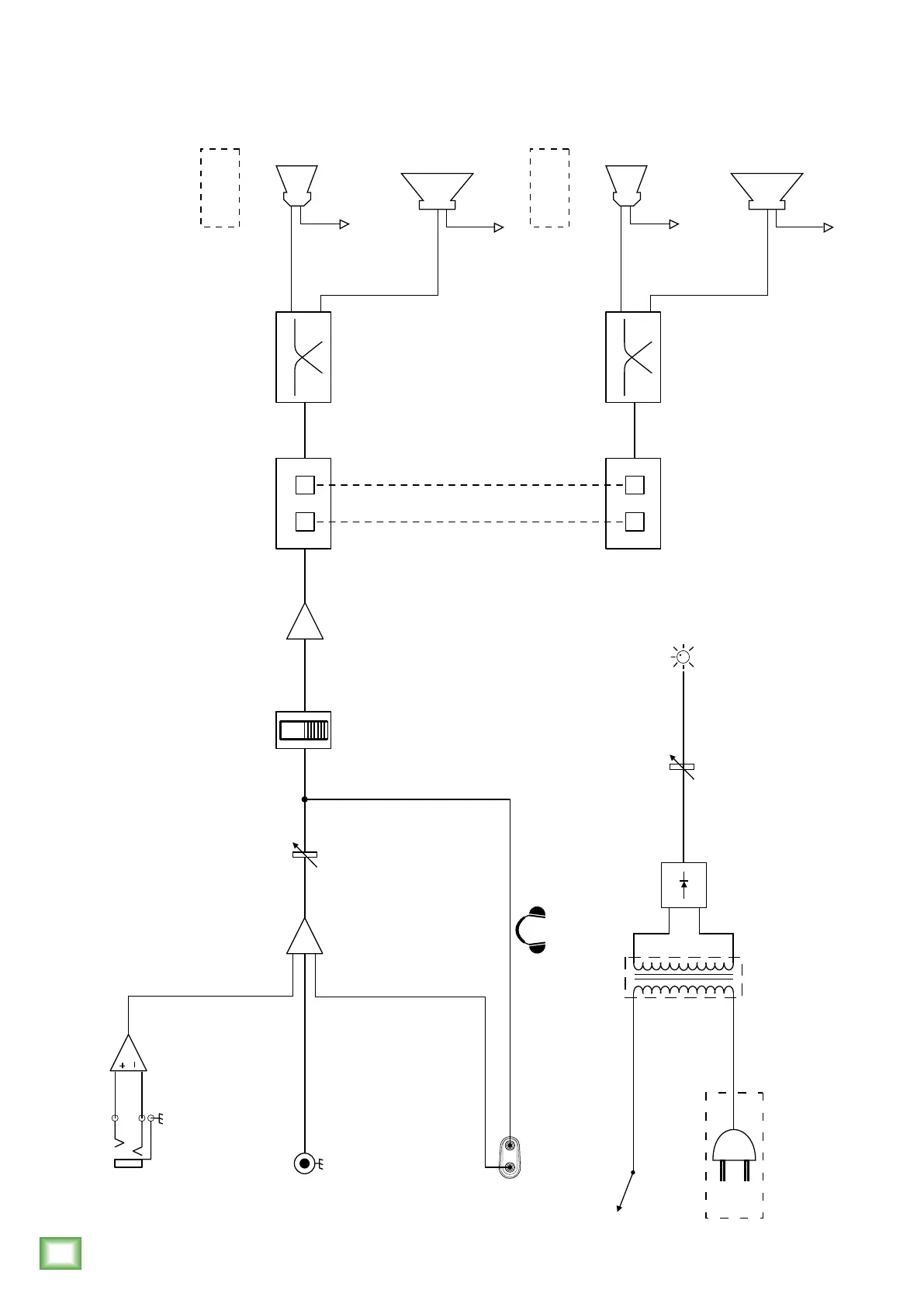

CR Series Block Diagram
STEREO RCA
UNBALANCED
LINE INPUT
STEREO 1/8”
LINE INPUT
[AUX]
STEREO 1/8”
HEADPHONES
OUTPUT
STEREO 1/4"
(UN)BALANCED
LINE INPUT
ON / OFF / VOLUME
(FRONT PANEL)
CROSSOVERAMPLIFIER
+
OUTPUT TO
PASSIVE SPEAKER
ON / OFF / VOLUME
(FRONT PANEL)
HIGH FREQUENCY DRIVER
POWERED
SPEAKER
LOW
FREQUENCY
DRIVER
TWEETER
WOOFER
POWER
TRANSFORMER
The greatest of all
Rings of Power:
the One Ring
CAPTIVE POWER
REAR PANEL
POWER SWITCH
L / R
L / R
L / R
CROSSOVER
+
INPUT FROM
POWERED SPEAKER
HIGH FREQUENCY DRIVER
PASSIVE
SPEAKER
LOW
FREQUENCY
DRIVER
TWEETER
WOOFER
L / R
PLACEMENT
SWITCH
