HD1221 / HD1521 / HD1531 Powered Loudspeakers
6
HD1221 / HD1521 / HD1531 Powered Loudspeakers
Hookup Diagrams / Diagramas de conexión
Schémas de câblage / Anschlussdiagramme

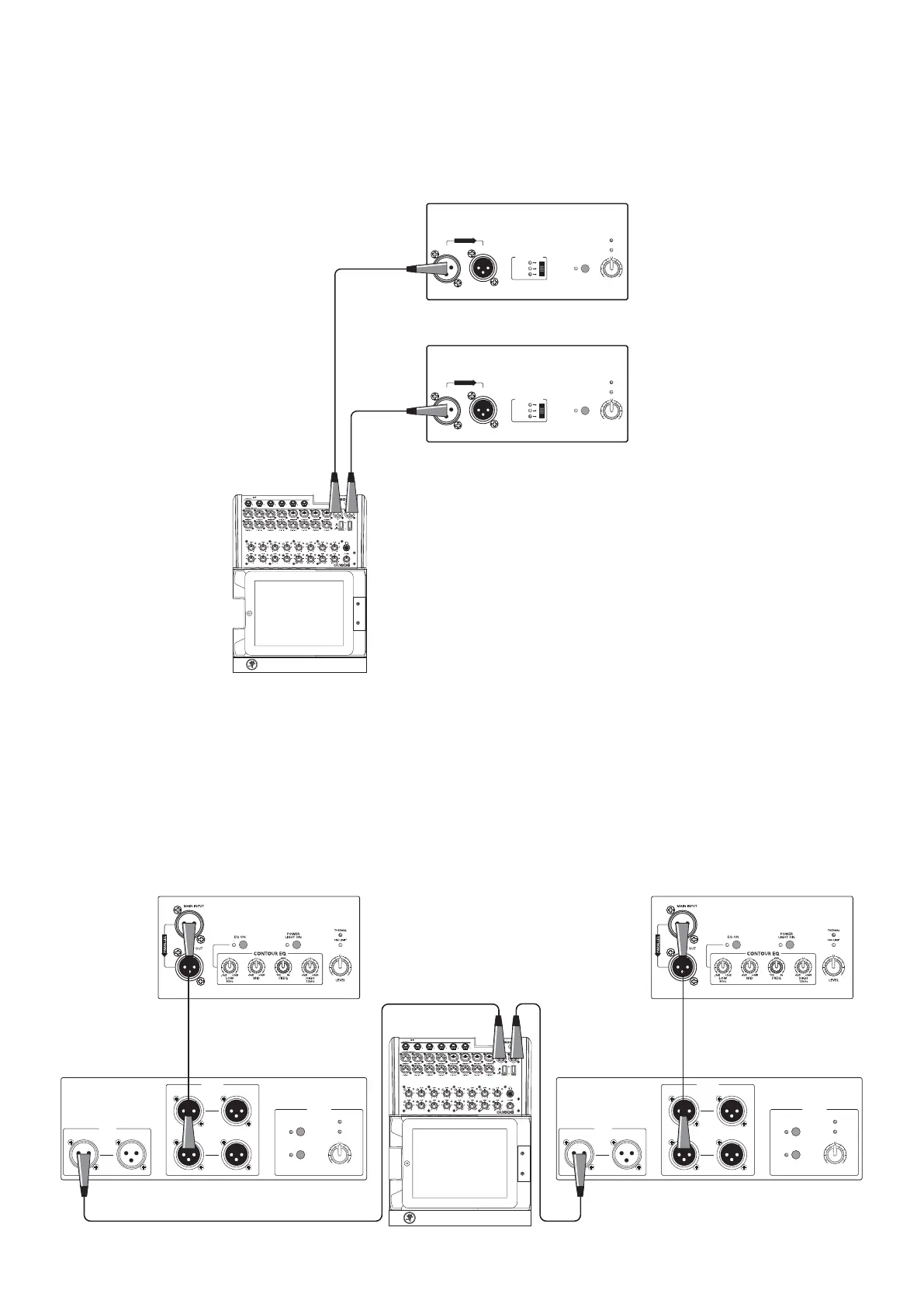

Stereo Speaker Hookup
Conexión de altavoz stereo
Connexion en stéréo
Stereo Setup
PA System with two powered subwoofers
Sistema PA con dos subwoofers autoamplificados
Système de sonorisation avec deux Subwoofers actifs
PA-System mit zwei aktiven Subwoofern
+6dB–6dB+6dB–6dB
FULL RANGE
HIGH PASS
OUTPUTS
SETTINGS
A B
A B
A B
POWER
LIGHT ON
SIG/ LIMIT
THERMAL
LEVEL
+6dB 6dB
-
POLARITY
INVERT
INPUTS
FULL RANGE
HIGH PASS
OUTPUTS
SETTINGS
A B
A B
A B
POWER
LIGHT ON
SIG/ LIMIT
THERMAL
LEVEL
+6dB 6dB
-
POLARITY
INVERT
INPUTS
HD1521 / HD1531 HD1521 / HD1531
HD1801HD1801
POWER
LIGHT ON
SIG/ LIMIT
THERMAL
MAIN
INPUT
LOOP
OUT
LEVEL
+6dB 6dB
-
VOICING MODE
NORMAL
CONTOUR
MONITOR
PARALLEL
POWER
LIGHT ON
SIG/ LIMIT
THERMAL
MAIN
INPUT
LOOP
OUT
LEVEL
+6dB 6dB
-
VOICING MODE
NORMAL
CONTOUR
MONITOR
PARALLEL
HD1221
HD1221
