HD1221: 2-WAY SYSTEM
Hookup Diagrams
This simple system may be utilized in a variety of ways anywhere high-output and easy setup are needed. Great
for wedding DJs to vocal reinforcement to full band PA, the HD1221 is the perfect setup when you need a high-
output, ultra-portable PA.

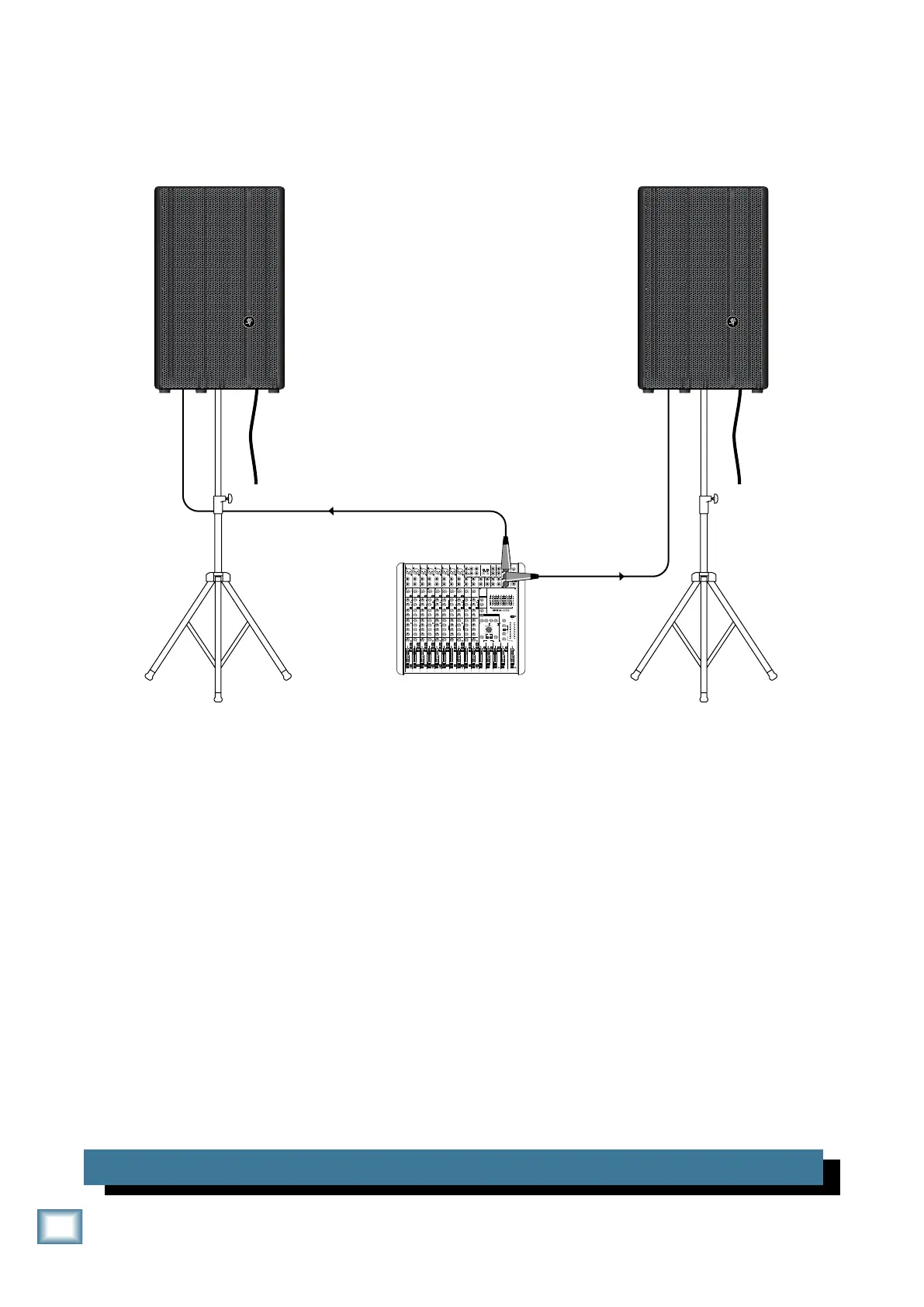

In this example, the left and right main outputs from a mixer feed the MAIN INPUTs of a pair of Mackie HD1221
powered loudspeakers.
Note: HD1221s do not necessarily need to be pole-mounted. They may be placed on a floor, stage, or other
firm surface or they may be flown for permanent installs. Please refer to pages 9-12 for more information on
HD1221 placement, acoustics and rigging.
1 2 3 4 5 6 7 8 9-10 11-12
1234
Po wer
Cord
To Mackie HD1221
powered loudspeaker
MAIN INPUT
To Mackie HD1221
powered loudspeaker
MAIN INPUT
Po wer
Cord
Mixing Console
(Mackie CFX12mkII shown)
L/R
MAIN
OUT
To Next Page
