Specications
Frequency Response
15 Hz-20 kHz ±0.2 dB
THD
0.01% (15 Hz-20 kHz)
Signal to Noise Ratio
Analog in to Analog out, ref to +4 dBu: 104 dB
Propagation delay
3.2 mS
EQ lters
30 Adaptive-Q lters, ±12 dB range
HPF 20 Hz -3 kHz, 12 or 24 dB/octave Linkwitz-Riley
LPF 1 kHz-20 kHz, 12 or 24 dB/octave Linkwitz-Riley
Analog inputs:
Connectors: XLR female & TRS
Max input level: +22 dBu
Input level range: ±15 dB digital trim
Impedance: 10k ohms
A/D:
24-bits (20 Hz-20 kHz, ±1 dB)
Dynamic Range: 106 dB
Crosstalk: –110 dB @ 1 kHz
Measurement mic input
Connector: XLR female
Gain: Fixed at appropriate level for supplied Mic
Impedance: 10k ohms
Phantom Power: 48 V applied continuously
Appendix C: Technical Info
Analog Outputs:
Connectors: XLR male & TRS
Max output level: +22 dBu balanced, +20 dBu unbalanced
Impedance: 150 ohms
D/A:
24-bits (20-20 kHz, +/-1 dB)
Dynamic Range: 108 dB
Crosstalk: –115 dB @ 1 kHz
Sample Rates: 48 kHz
Digital Signal Processing: 32-bit oating point
Power:
100-240 VAC, 50/60 Hz auto-switching

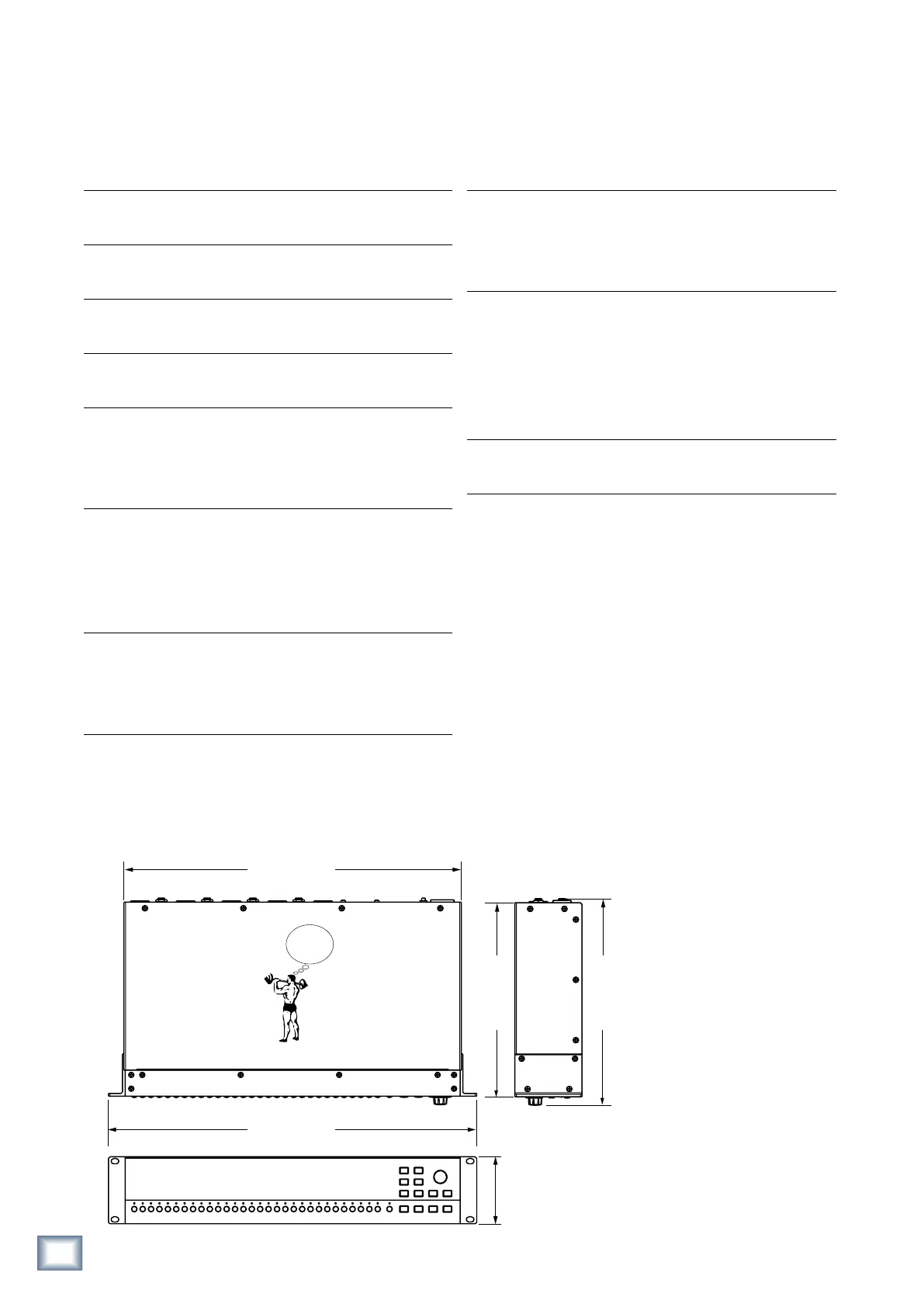

Dimensions:
Width 19 inches (483 mm)
Height 3.5 inches (88 mm)
Depth 10.7 inches (271 mm)
Weight: 10 lbs (4.6 kg)
LOUD Technologies Inc. is always striving to improve our prod-
ucts by incorporating new and improved materials, components,
and manufacturing methods. Therefore, we reserve the right to
change these specications at any time without notice.
