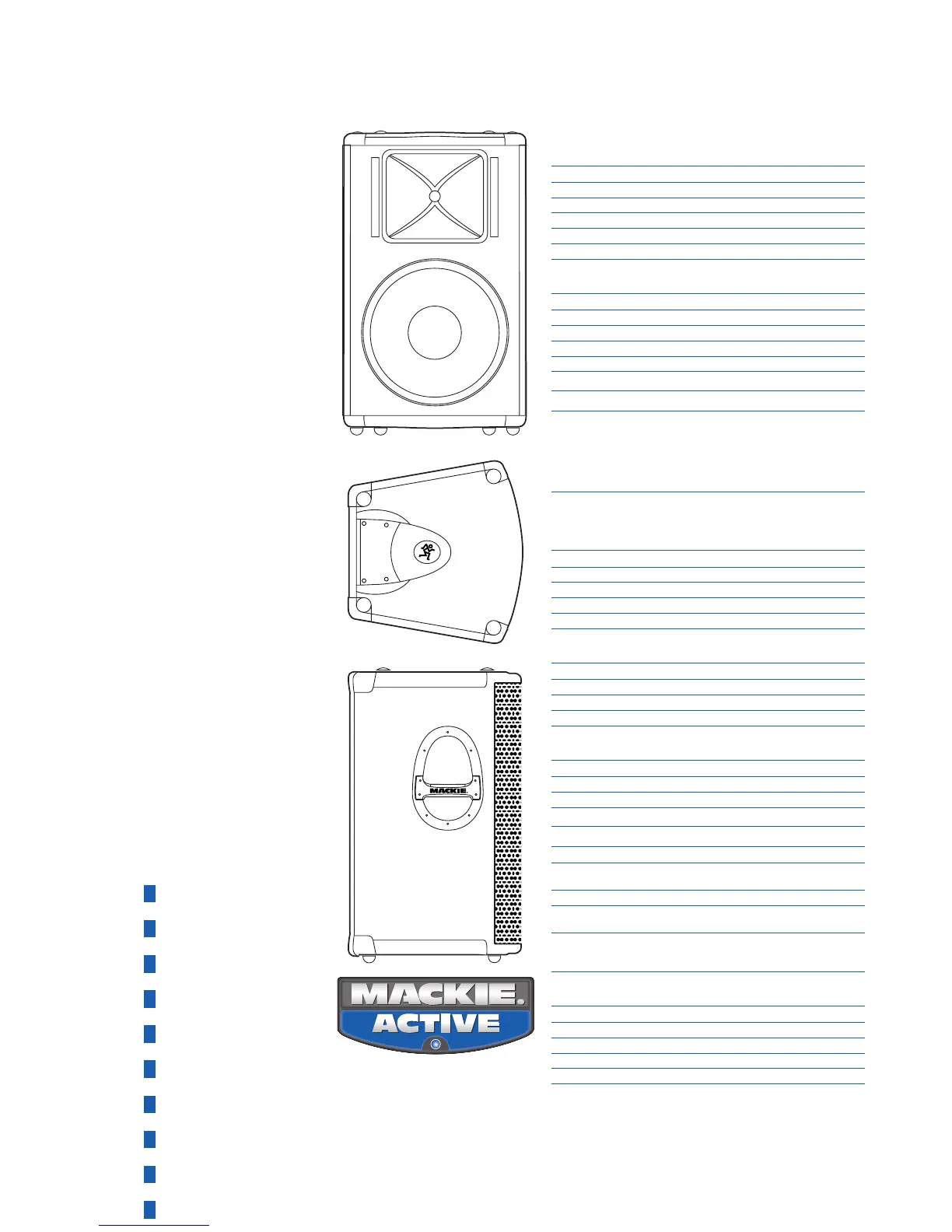

SA1521 Active 15-inch 2-Way SR Speaker System
SA1521 Preliminary Technical Specications
Acoustic Performance
-3dB response 57Hz - 18kHz
-10dB response 49Hz - 20kHz
Max SPL long-term 130dB
Max SPL Peak 133db
Input / Output
Input Bal./unbal. Female XLR
Loop-through Bal./unbal. Male XLR
Electronics
Total Amplier Power 500 Watts*
High Frequency 100 Watts*
Type Class AB
Low Frequency 400 Watts*
Type Class G Hybrid
Crossover Point 1300 Hz
Protection
Low Frequency LF Dynamic
Bass Protection,RMS Limit
ing, Power Supply,Thermal
Protection, Amp Board
Thermal protection
Display
LEDS Signal Present,Peak and
Thermal (Cool Down Auto
Reset)
High Frequency Section
Diaphragm Size 1.75”
Horn Exit Diameter 1.0”
Phase Plug 3-Slot Optimized Geometry
Diaphragm Material Damped titanium
Surround Material Mylar
Magnet Type Ferrite
Horn Design
Horizontal Coverage** 75° 1kHz to 10kHz avg.
Vertical Coverage** 65° 1kHz to 10kHz avg.
Type Constant Directivity
Mouth Size 10.6” x 10.6” (27 x 27 cm)
Throat Size 1.0” (2.54 cm)
Low Frequency Section
Driver Size 15”
Diaphragm Material Epoxy-reinforced Cellulose
Magnet Type Ferrite
Controls Level (Rotary Knob) -15 to +4dB
Construction
Basic Design Trapezoidal
Material 13-ply Baltic Birch/
resin end caps
Finish Wear-resistant PVC vinyl
Handles Two on sides, one top,
one bottom
Grill Perforated metal with
weather-resistant
coating
Mounting Post Hole Yes
Physical
Height (in/cm) 32.01 / 81.3
Width Front (in/cm) 19.06 / 48.4
Width Back (in/cm) 13.9 / 35.3
Depth (in/cm) 18.11 / 46
Weight (lbs/KG) 83.6 / 38
*Rated power is continuous RMS wattage into transducer’s minimum
rated impedance @ 1kHz for the HF amp and 100 Hz for the LF amp
**–6dB
