Owner’s Manual
9
Owner’s Manual
Large Club System
PUSH FOR SETTINGS
50-60 Hz 110W
100-240VAC
SPEAKER CONTROL
INPUT
DIRECT OUT
INPUT
DIRECT OUT
HIGH-PASS OUT HIGH-PASS OUT
PUSH FOR SETTINGS
50-60 Hz 110W
100-240VAC
SPEAKER CONTROL
INPUT
DIRECT OUT
INPUT
DIRECT OUT
HIGH-PASS OUT HIGH-PASS OUT
PUSH FOR SETTINGS
50-60 Hz 110W
100-240VAC
SPEAKER CONTROL
INPUT
DIRECT OUT
INPUT
DIRECT OUT
HIGH-PASS OUT HIGH-PASS OUT
PUSH FOR SETTINGS
50-60 Hz 110W
100-240VAC
SPEAKER CONTROL
INPUT
DIRECT OUT
INPUT
DIRECT OUT
HIGH-PASS OUT HIGH-PASS OUT
PUSH FOR SETTINGS
SPEAKER CONTROL
PUSH FOR SETTINGS
SPEAKER CONTROL
SUBWOOFER HPF
DRM SUB
VAROFF
DRM
SUB
FLAT LIVE MUSIC
INSIDEMONCLUB
LIVE
SPEAKER VOICING
PUSH FOR SETTINGS
SPEAKER CONTROL
FLAT LIVE MUSIC
INSIDEMONCLUB
LIVE
SPEAKER VOICING

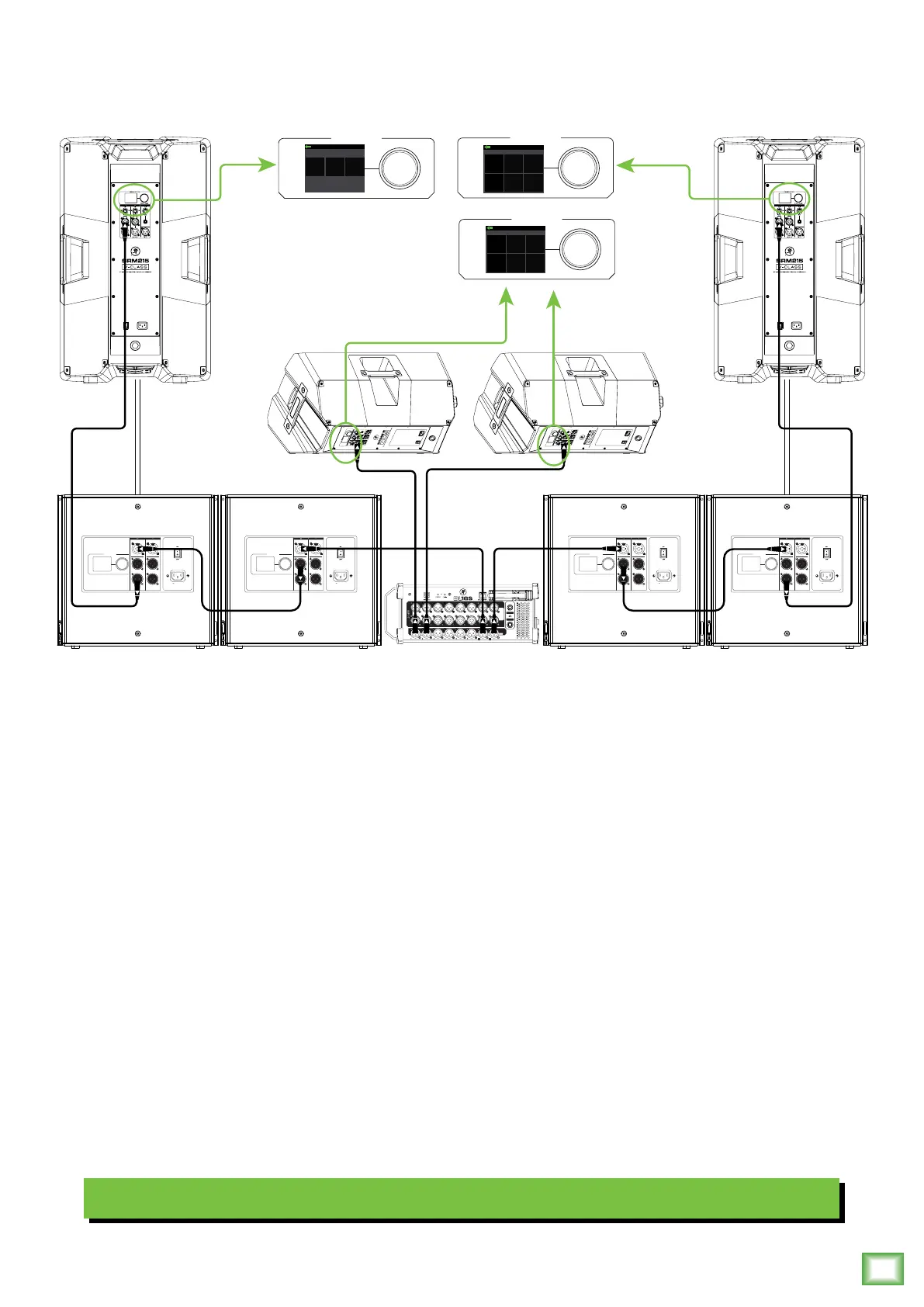

Hookup Diagrams continued…
Here’s how to set up a large club system. In this example, the L/R outputs of a DL6S mixer are connected directly
to the channel  inputs of a pair of DRM8S subwoofers. The Direct Out of each subwoofer is then connected to the inputs
of an additional pair of DRM8S subwoofers.
From here, the high-pass outputs of the two outer DRM8S subwoofers are connected directly to the inputs of a set
of SRM25 | V-Class loudspeakers. The Speaker Modes of these PA loudspeakers may be set to Live (or Club)
and the Subwoofer HPF set to DRM Sub. Talk about beefy low end!
Outputs  and 2 from the mixer may be used as aux sends; these are connected directly to the channel  inputs of a pair
of SRM25 | V-Class loudspeakers to be used as monitors for the band. The gain knob on all SRM25 | V-Class loudspeakers
in this example should be set to Line. The Speaker Modes of the monitor loudspeakers may be set to Monitor.
