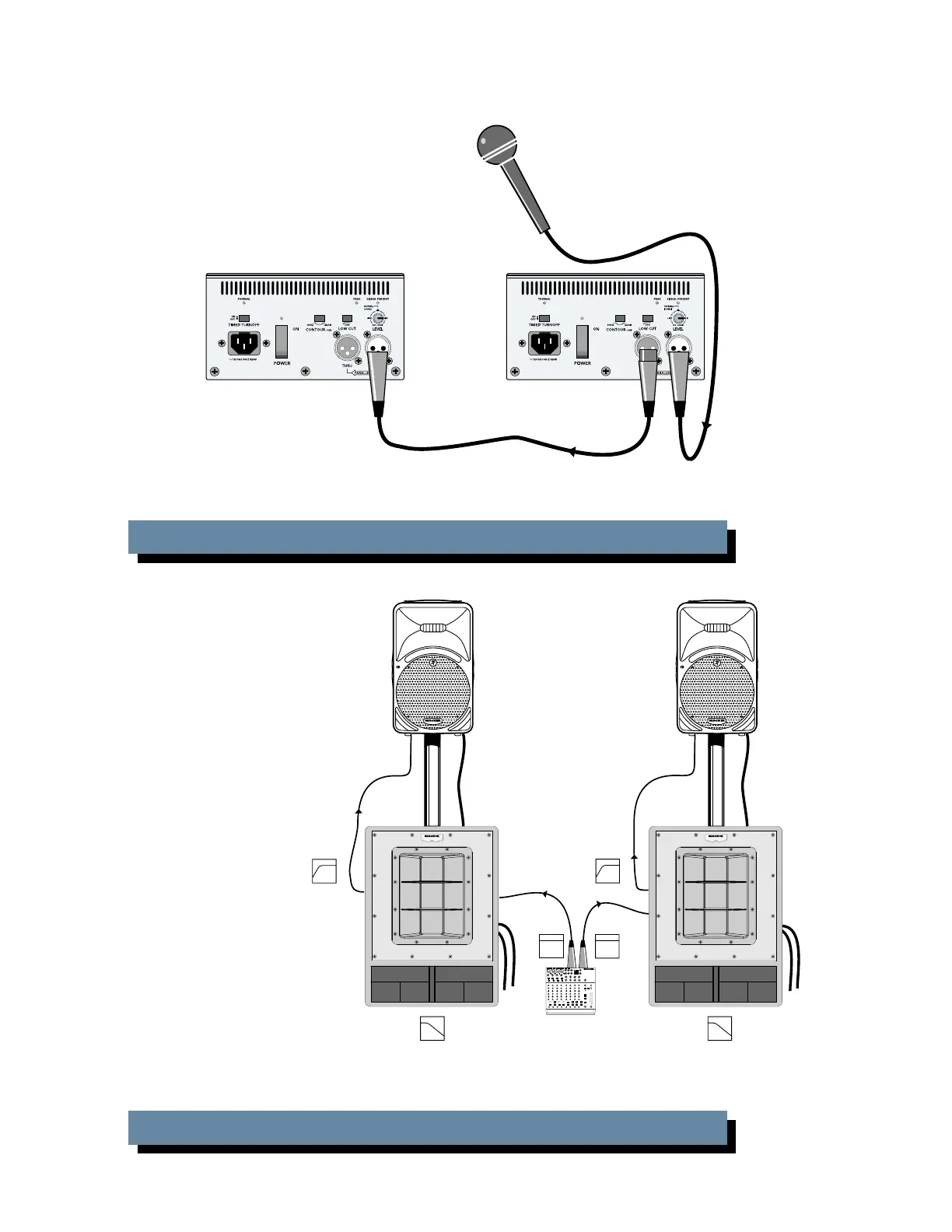

SRM450: USING A MICROPHONE AND THE THRU JACK
Po w e r
Cord
Po w e r
Cord
Pole
Mount
Pole
Mount
Line-level
Hi-pass
out
Line-level
Hi-pass
out
Full
Range
Full
Range
Po w e r
Cords
Po w e r
Cords
SWA1501
plays the low
frequencies
SWA1501
plays the low
frequencies
ACTIV EACTIVE
1202-VLZPRO
SRM450: BIAMPING WITH A POWERED SUBWOOFER
The SRM450 can be
used with a Mackie
SWA1501 (or SWA1801)
subwoofer to create an in-
credibly powerful system.
The active crossover
inside the SWA1501
splits the full-range input
signal into two ranges.
The SWA1501 plays the
low-frequency range
through its 500 watt ampli-
fier and 15-inch woofer,
and sends the high-pass
range to the SRM450.
The SRM450 can be
pole mounted on top of
the SWA1501 as shown,
saving the cost of a tripod
stand.
For microphone connections, you can
daisy-chain up to two SRM450s using the
THRU jacks as shown.
Take great care to point any micro-
phones away from the SRM450s, otherwise
you may get feedback.
