Page 26 of 32

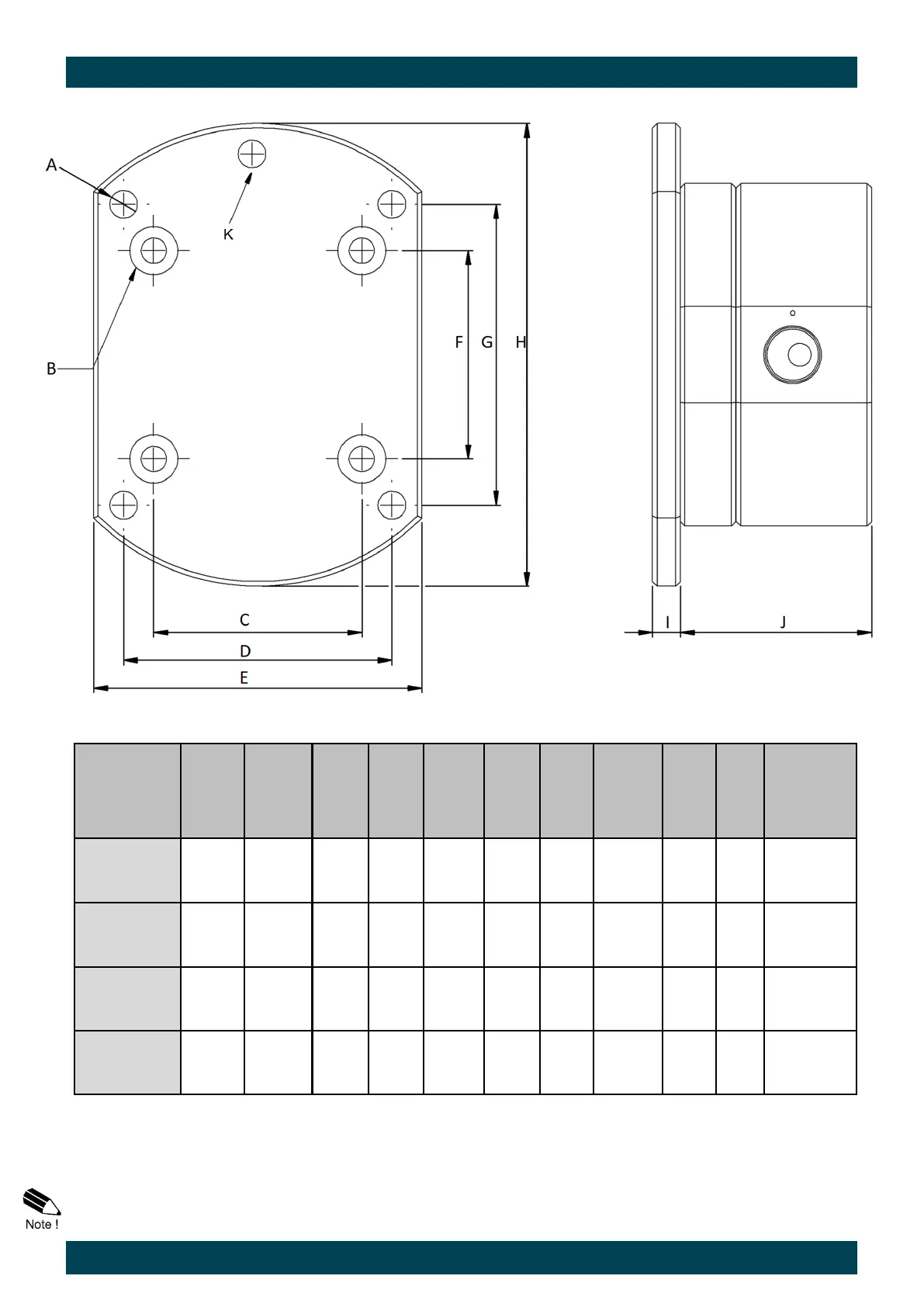

WALL MOUNT ADAPTOR (MX06 - MX25)
Meters
A
(Ø mm)
B
(Ø mm)
C
(mm)
D
(mm)
E
(mm)
F
(mm)
G
(mm)
H
(Ø mm)
I
(mm)
J
(mm)
K
(Ø mm)
MX06 - MX09 6 5.5 45 58 71 45 65 100 6 42 M5x0.8
MX12 6 5.5 47 69 81 47 73 113 6 49 M5x0.8
MX19 7 6.6 61 85 100 61 95 143 6 62 M6x1.0
MX25 7 6.6 61 85 100 61 95 143 6 75 M6x1.0
A Wall Mount Holes (4)
B SS Countersunk screws to be supplied with the wall mount bracket
5 mm in diameter and 16 mm in length for MX06 - MX12 meters
6 mm in diameter and 20 mm in length for MX19 - MX25 meters
K Earthing Point
