Macnaught MX Series - Flowmeter Dimensions MX75

Page 27 of 32

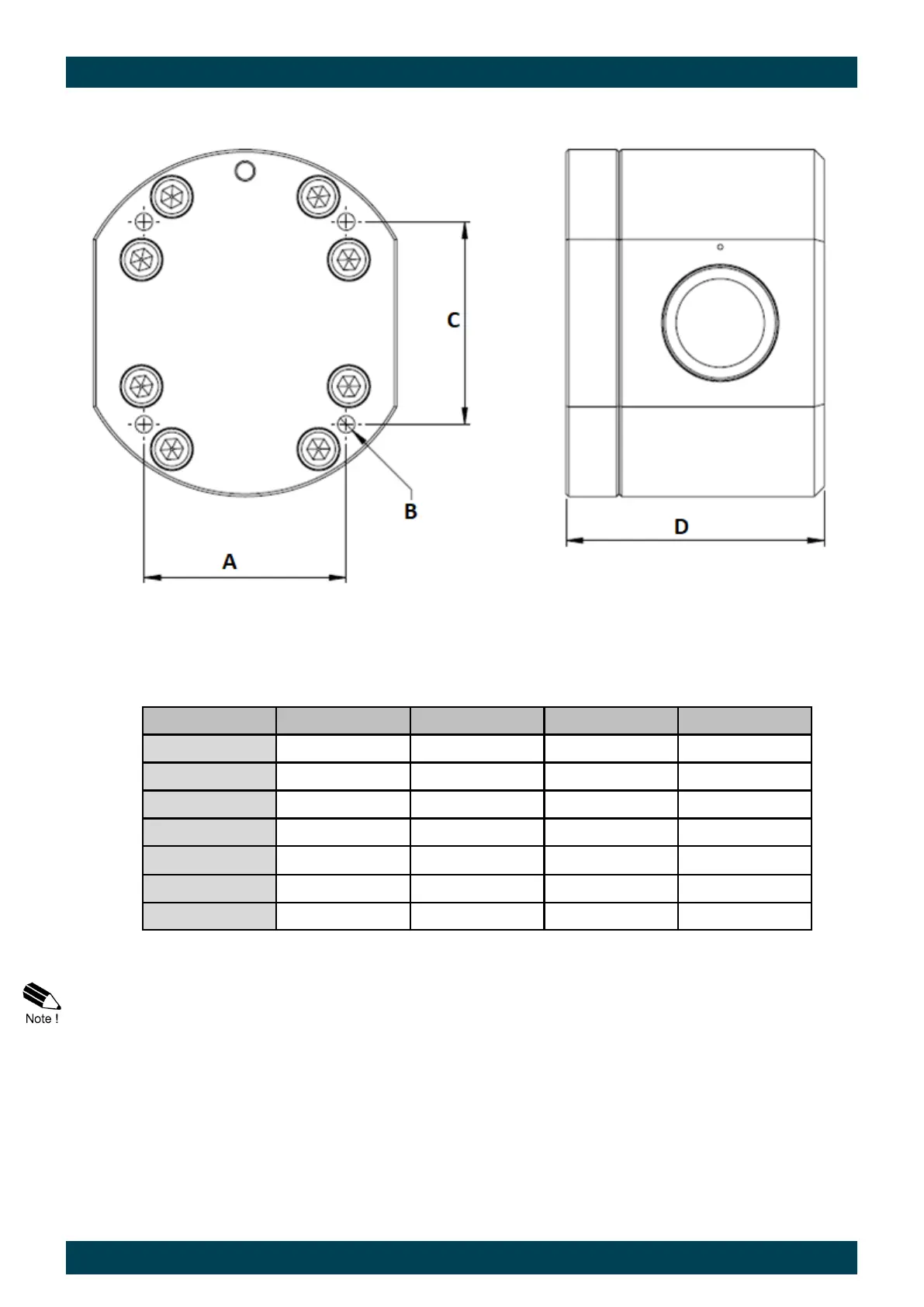

WALL MOUNT THREAD POSITION ON FLOWMETER’S CAP (MX06 - MX50)
Meters A B C D
MX06 45 M5 x 0.80 45 42
MX09 45 M5 x 0.80 45 42
MX12 47 M5 x 0.80 47 49
MX19 61 M6 x 1.00 61 62
MX25 61 M6 x 1.00 61 75
MX40 80 M8 x 1.25 80 102
MX50 80 M8 x 1.25 100 123
B Mounting Holes x 4
Earthing Points x 4 (Any of them can be used)
