Maco MULTI-MATIC - MULTI MAMMUT Scissor Stay Hinge; MULTI POWER Hinging and Unhinging

- 16 -
1.
2.
3.
1.
2.
1.
2.
3.
3.
4.
2
1
4
5
6
3

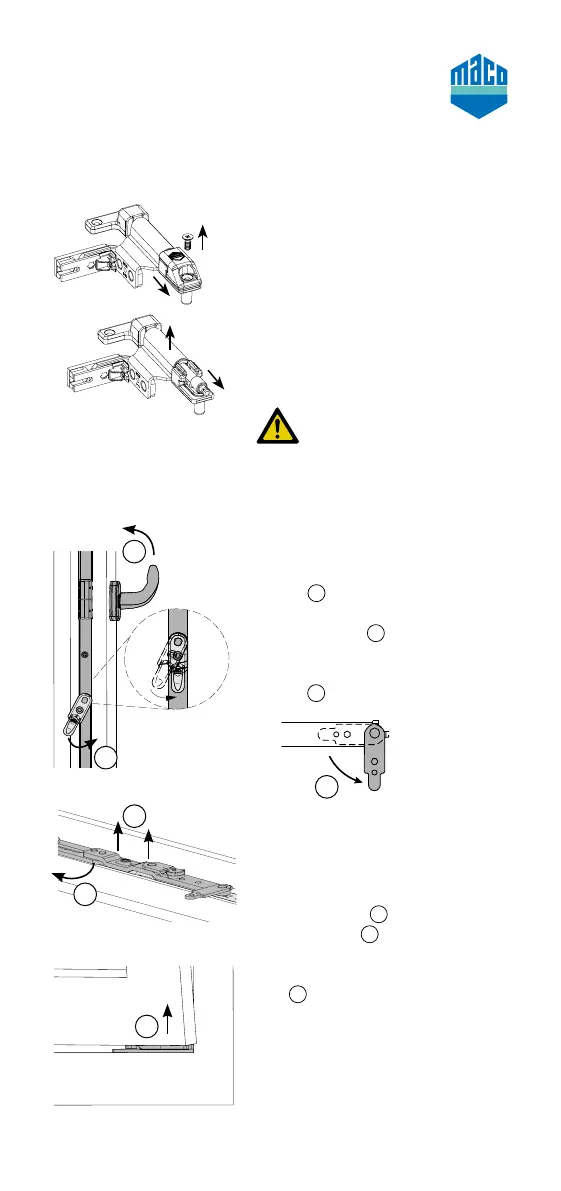

1. Remove the locking screw.
2. Remove the scissor stay hinge pin.
3. Pull the scissor stay hinge pin
downwards and open the sash 90°.
4. Move the rebated scissor stay
support arm out of the scissor stay
hinge and li the sash out of the
pivot post.
For hinging, carry out the above
steps in reverse order.
DANGER!
It is essential that the
scissor stay hinge pin is
installed.
› MULTI MAMMUT scissor stay hinge
› MULTI POWER (see also video at www.maco.eu):
1. Open the sash 90°.
2. Trigger the mishandling
device
1
(only on turn&tilt
windows), turn the handle to
the tilt position
2
.
3. Open the scissor stay arm safety
device/turn-only hinge arm safety
device
3
.
4. Li the scissor stay and/or
turn-only hinge arm until it is
completely free
4
, then move it
into the frame
5
.
5. Close the sash.
6. Tilt the sash slightly and li it up and
out
6
.
For hinging, carry out the above steps
in reverse order.
