Maco MULTI-MATIC - Hinging and Unhinging the Sash; MULTI-MATIC;MULTI-TREND Scissor Stay Hinge (PVC;DT;AS); MULTI-MATIC;MULTI-TREND Scissor Stay Hinge (Stay and Hinge)

- 15 -
1.
2.
3.
2.
1.

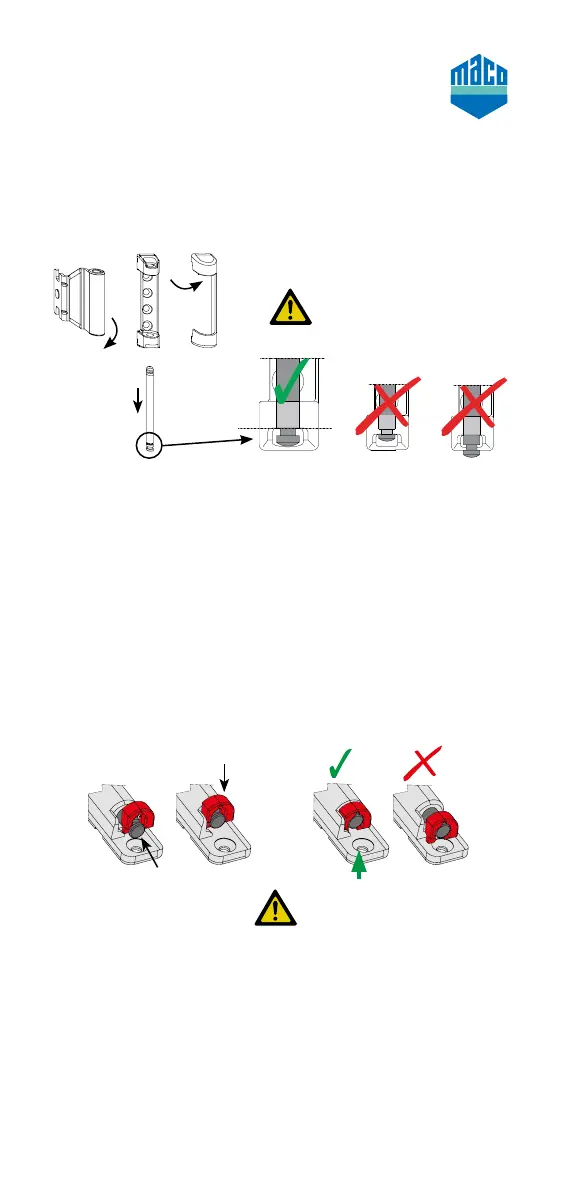

1. Remove the cover, if there is one.
2. Pull the scissor stay-hinge pin downwards with a suitable tool. The
scissor stay hinge pin can only be withdrawn when the window is
closed.
3. Open the sash 90° (secure against tilting on the espagnolette
side), move the rebated scissor stay support arm out of the
scissor stay hinge and li the sash out of the pivot post. For
hinging, carry out the above steps in reverse order.
› MULTI-MATIC / MULTI-TREND scissor stay hinge – stay and hinge
As above, with the exception that a catch must be also clipped into
the scissor stay hinge pin.
Correct position of the
pin aer hinging
Correct position of the
pin aer hinging
Hinging and unhinging the sash
› MULTI-MATIC / MULTI-TREND scissor stay hinge – PVC / DT / AS
DANGER!
DANGER!
