- 6 -
max. 1
+2,85 / -1,8
4
1.
90 °
90 °

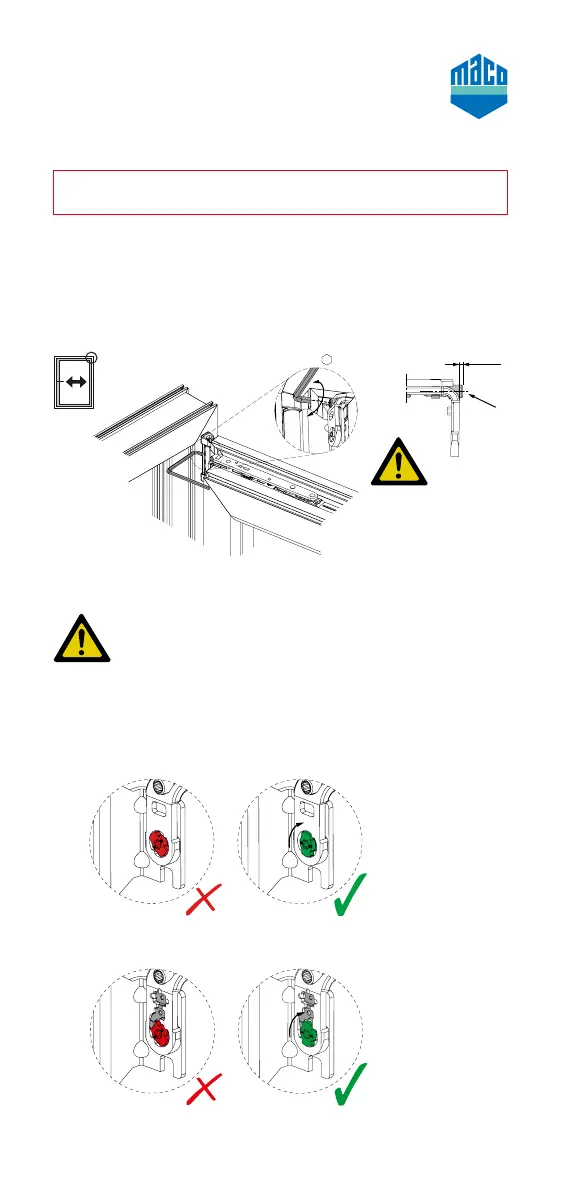

Setting scissor stay or turn-only hinge
1. Lift/lower
› MULTI-MATIC / MULTI-TREND corner hinge version
DANGER!
The adjusting screw
must not protrude
more than a
maximum of 1 mm!
Adjustment values are always specied in regard to the
hinge-side air gap and/or the bottom horizontal air gap.
The bayonet bolt on the rebated scissor stay
support arm is only for the side adjustment! CHECK
that the bayonet bolt is exactly at 90°! If it is not,
the sash can fall out of the window frame.
DANGER!
Version up to 2020
Version from 2020
