Macrom M-AN700DAB User Manual

- 16 -

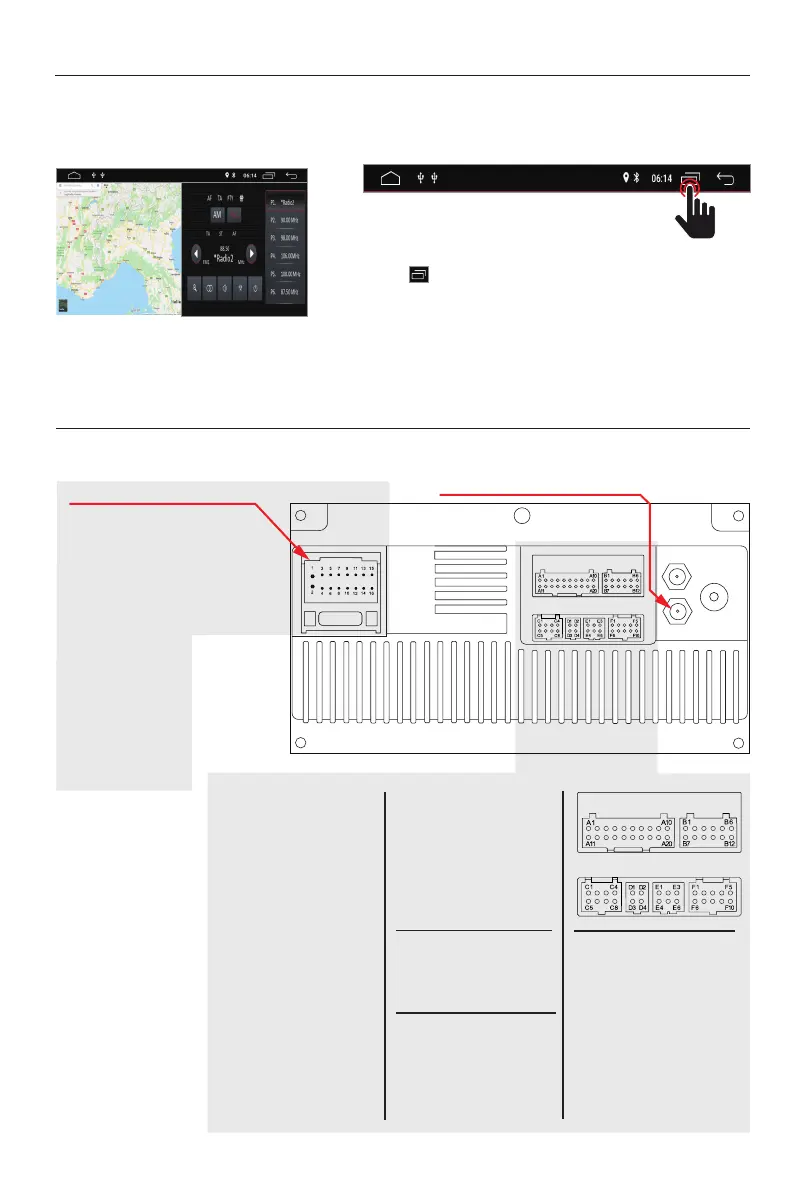

Connection view
A
C
B
D
E
F
POWER CABLE CONNECTION
1. GND
2. + BATT
3. ACC-IN
4. ILLUMINATION
5. REVERSE
6. SWC-KEY 2
7. SWC-KEY 1
8. P. ANT
9. FR-
10. RL-
11. FR+
12. RL+
13. FL-
14. RR+
15. FL+
16. RR-
Diagram of: M-AN700 / M-AN700DAB
Dual screen
Dual screen function
Some applications are supported by the dual screen function. It is therefore possible to divide the
screen in half and display two applications simultaneously.
Press to view the open applications and then select
the desired applications to be displayed on the screen
simultaneously.
Note: some applications may not be supported by
screen sharing.
FUSE
A
C
B
D
E
F
GPS
DAB
FM/AM
A1. P. CON
A2. AUX-R IN
A3. AUX-L IN
A4. F. CAM- POWER
A5. NC
A6. NC
A7. NC
A8. VIDEO OUT 2
A9. F.CAM-SIGNAL
A10. MIC -
A11. GND
A12. RCA-FL OUT
A13. RCA-FR OUT
A14. GND
A15. GND
A16. GND
A17. VIDEO OUT 1
A18. SUB OUT
A19. VIDEO-IN
A20. MIC +
C1. GND
C2. RCA-RL OUT
C3. NC
C4. CAN-RX
C5. BRAKE
C6. RCA-RR OUT
C7. NC
C8. CAN-TX
D1. USB +5V
D2. GND
D3. USB 1-DP
D4. USB 1-DM
E1. USB +5V
E2. GND
E3. NC
E4. USB 2-DP
E5. USB 2-DM
E6. NC
F1. NC
F2. NC
F3. IR
F4. REVERSE
F5. BRAKE
F6. NC
F7. GND
F8. R.CAM-SIGNAL
F9. GND
F10. BT/WIFI ANT
Available with M-AN700DAB
