Macrom M-DVD5560 - Wire Connections Diagram

- 24 -

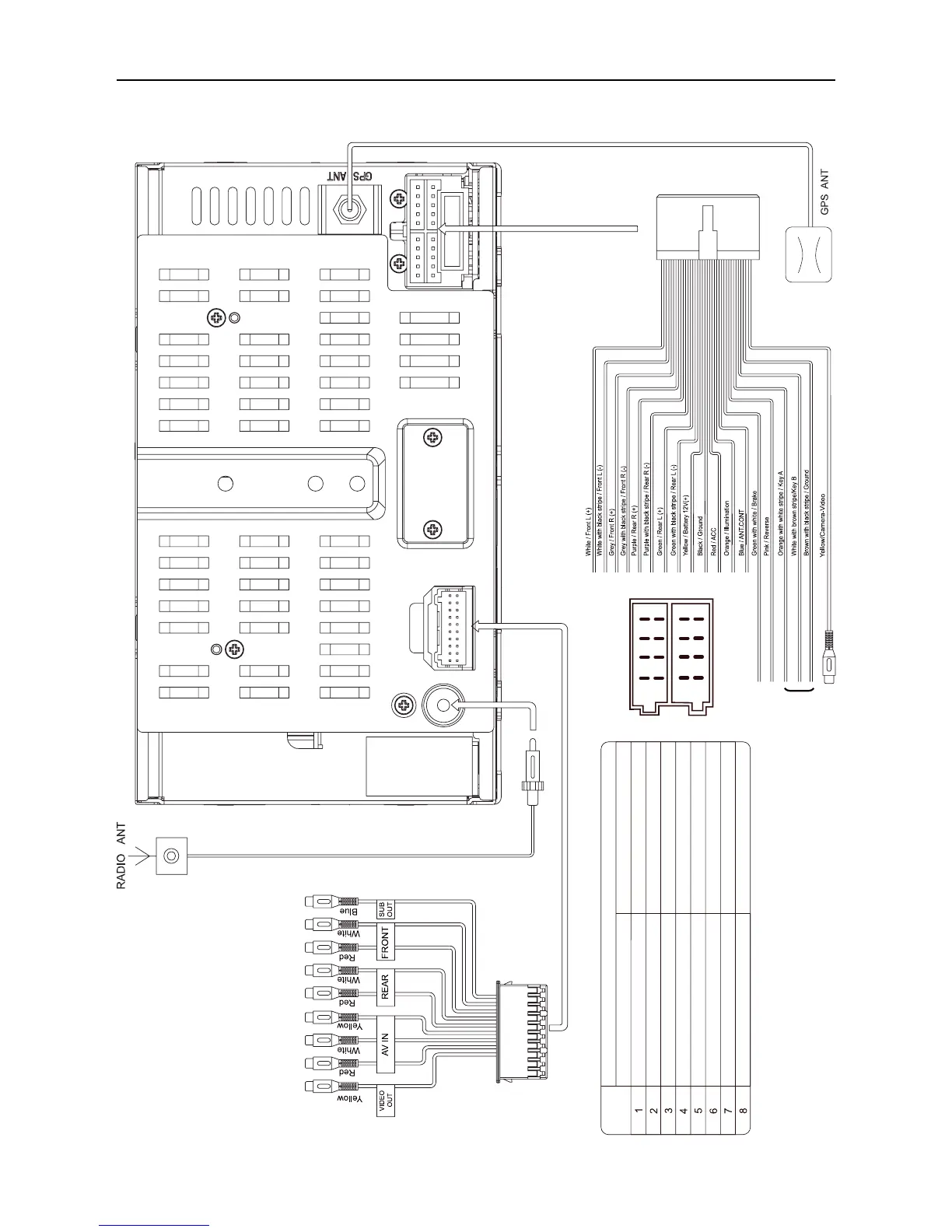

Wire Connections
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
Rear right (+) / Purple
Rear right (-) / Purple with black stripe
Front right / Gray
Front right (-) / Gray with black stripe
Front left (+) / White
Front left (-) / White with black stripe
ACC+ / Red
Rear left (+) / Green
Ground / Black
Battery 12V(+) / Yellow
Rear left (-) / Green with black stripe
Function
Connector A Connector B
PIN NO.
Illumination / Orange
Antenna-Power Control/ Blue
Steering Wheel Control
