Madas EVP/NC - Page 4

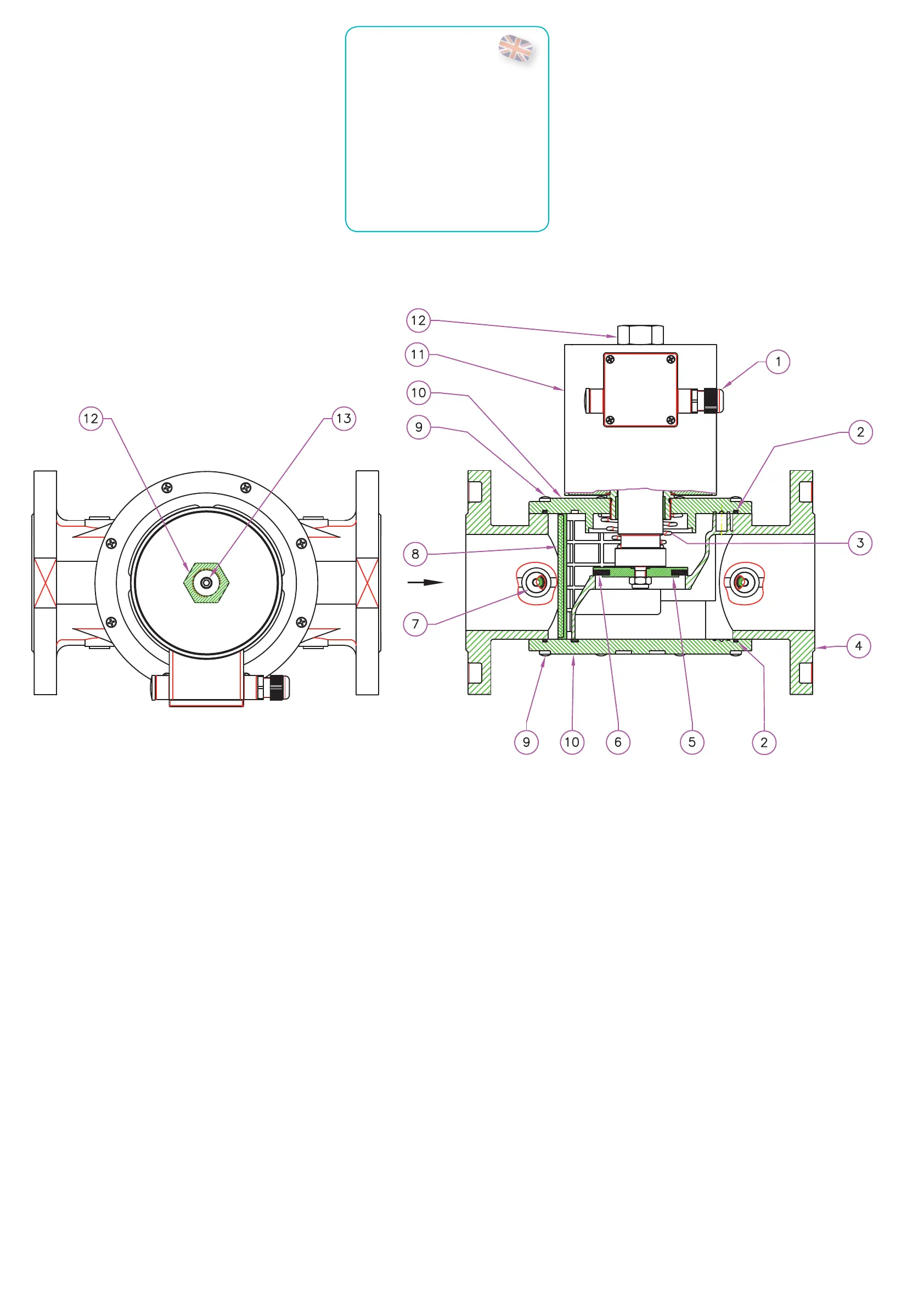

fi g . 5 a n d 6
1. Electrical connector
2. Seal O-Ring
3. Closing spring
4. Body valve
5. Obturator
6. Seal washer
7. G 1/4” cap
8. Filter
9. Fixing screws
10. Cover or bottom
11. Electrical coil
12. Coil fi x i n g n u t o r s c r e w
13. Flow calibration screw (EVPF version)
14. Bottom (only on DN 65-80-100)
fi g . 6
EVP/NC DN 65÷150
P.max 360 mbar
