2015_03_03 11

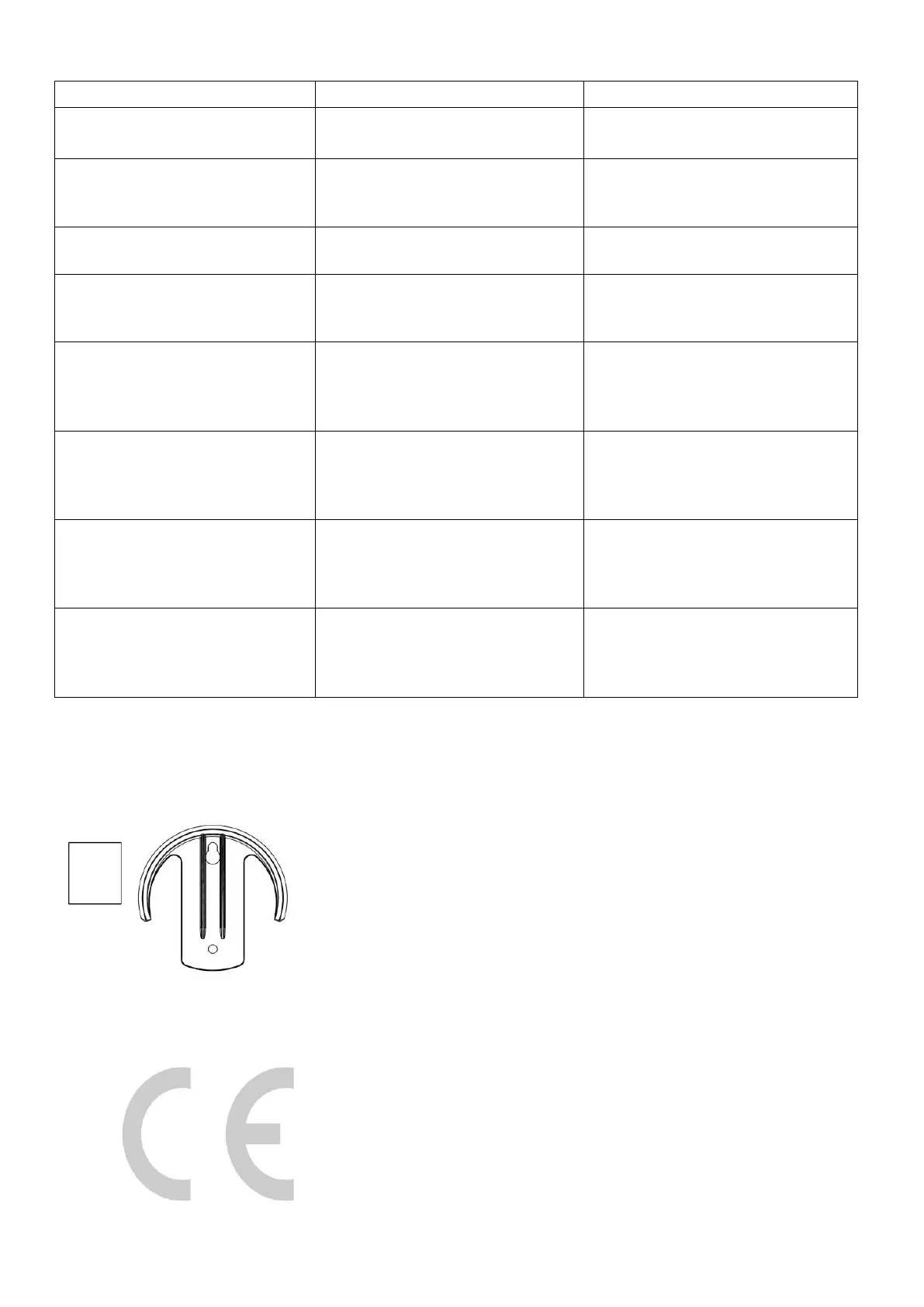

10.1 Message description
No influence to the calculation
Adverse environmental conditions;
Long operating time
No calculations are carried out. The
registers of flow and energy are not
being updated.
After a reset, the instrument is
without function.
The measurements since the last
storage of data in the E
2
PROM are
lost (max. one day)
Time-out TDC;
no measurement of volume
No calculations are carried out. The
registers for volume and energy are
not being updated (no new data is
being stored).
Air in the system; Volume scanning
defective; Connecting cable between
the calculator housing and the flow
sensor damaged.
Internal calibration error
There is no energy calculation. The
registers for flow and energy are
not being updated (no new data is
being stored).
A defect on the calculator circuit
board.
No calculations are carried out. The
registers for flow and energy are
not being updated (no new data is
being stored).
Sensor cable severed; sensor cable
shorted circuited t.
No calculations are carried out. The
registers for flow and energy are
not being updated (no new data is
being stored).
Sensor cable severed; sensor cable
shorted circuited.
11 Mounting with Wall Support
For mounting the calculator on the wall, a sticker pad and a wall mounting support are available. They must be
ordered separately. The adhesive surfaces must be clean and free of grease.
12 MID Declaration of Conformity
For the product described in this document we confirm, as the manufacturer, that it meets the fundamental
requirements of the following directives:
- Directive 2004/22/EC of 31 March 2004 on measuring instruments, in particular those in Annex MI-004
- Directive 2004/108/EC on EMC
- Directive 2006/95/EC on low voltage
- Directive 1999/5/EC (R&TTE)
The complete signed declaration can be found at www.engelmann.de.
