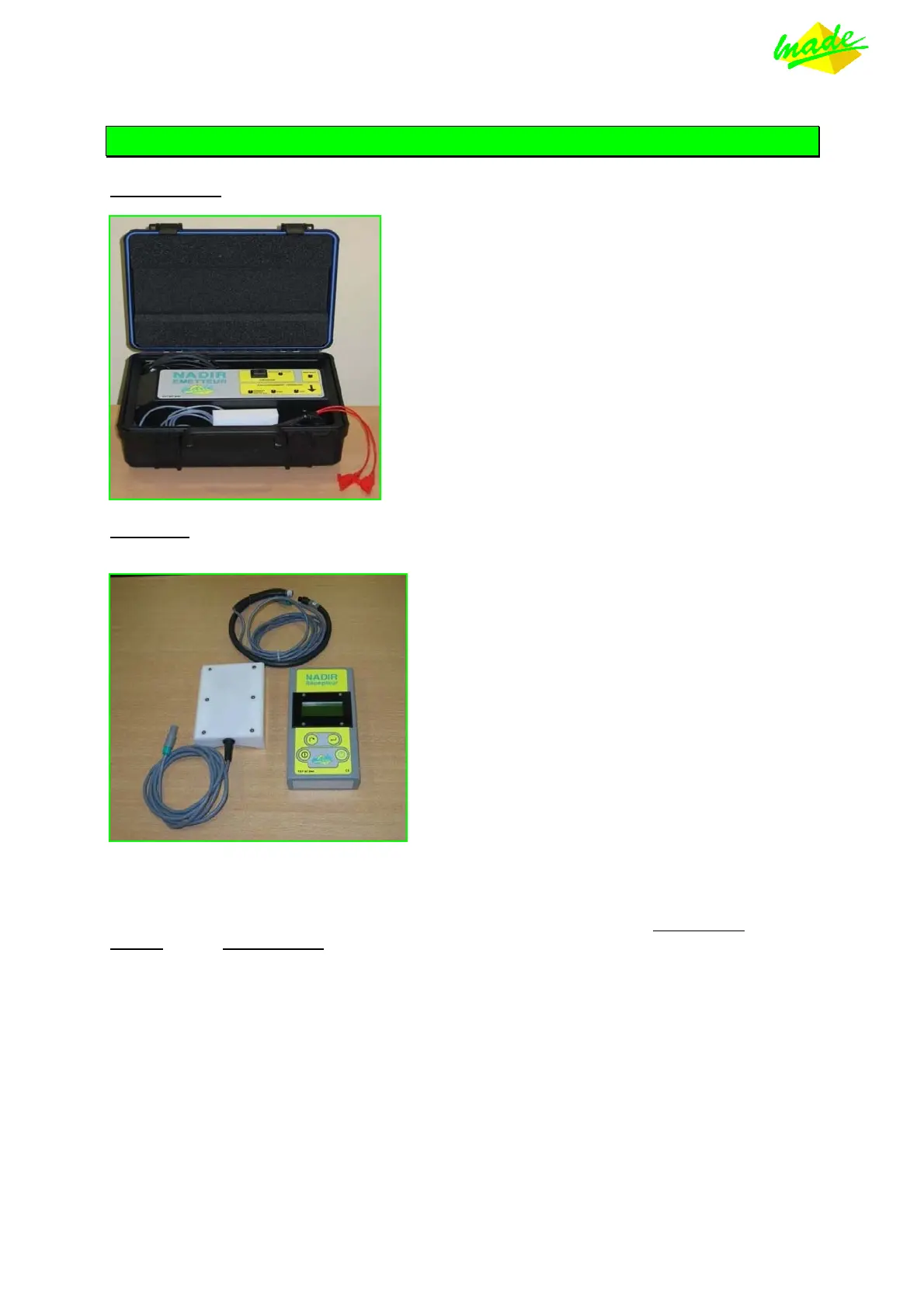

3 NADIR COMPONENTS
TRANSMITTER :
Integral carrying case
1 Cable for the connection to the network
(phase-phase or phase-neutral)
2 crocodile clips
Integral charger for the receiver
1 mains cable (230 V ∼) for the charger
1 link cable for charging the receiver.
RECEIVER :
Polycarbonate cased hand-held with
display screen and integral cable
transducer.
Remote transducer for cable pre-
identification
MADE-Flex (Rogowski coil) for locating
the phase(s).
The charger for Receiver battery pack is integrated into the Transmitter.
To charge the Receiver, connect the Transmitter to a 230 V ∼ supply, and connect the Receiver with
the cable supplied. The level of charge of the Receiver is shown on the last page of the
Receiver display. This reading will only be correct when the Receiver is disconnected
from the
charger and the charging cable.
