MADRIX LUNA - Connectivity; XLR Connector Pinout

6
English

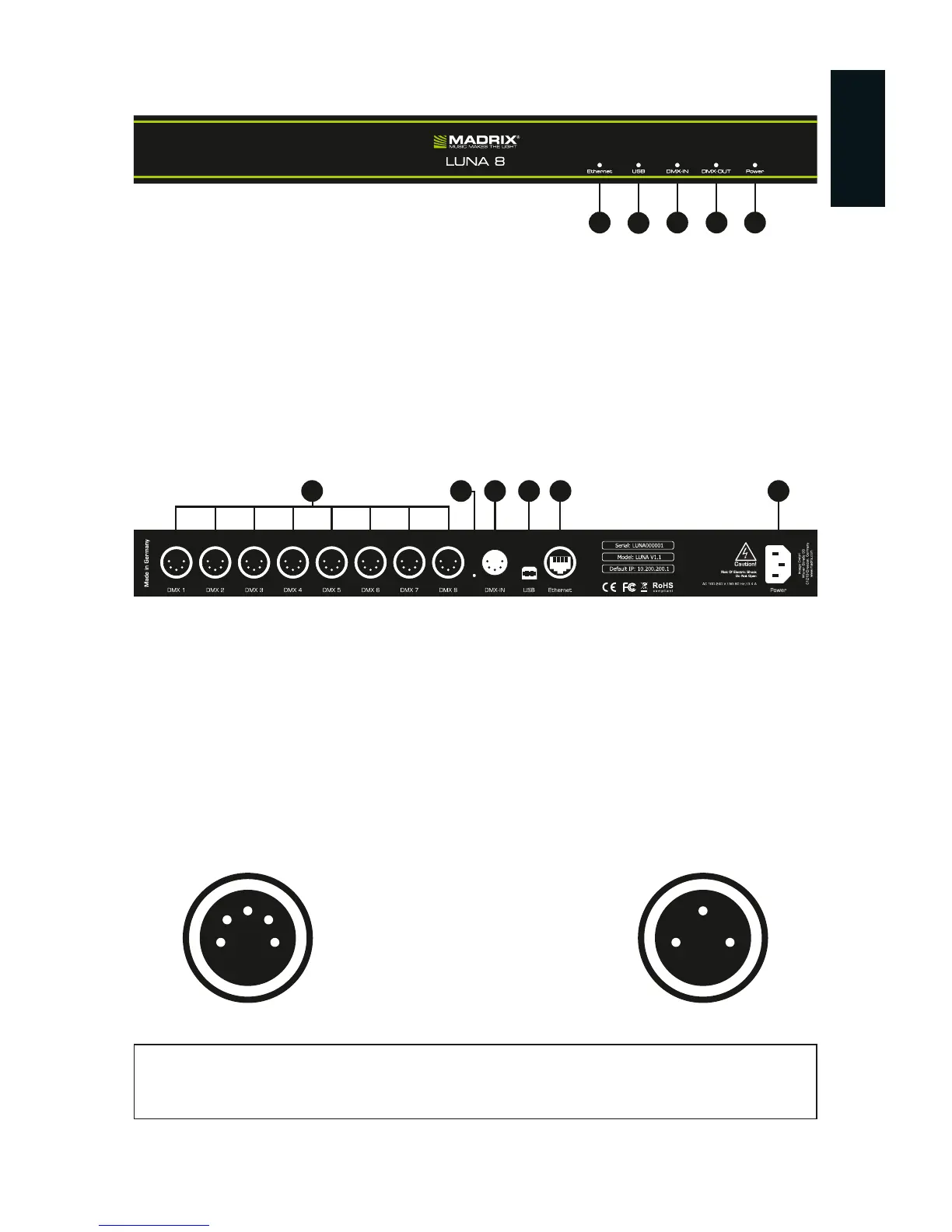

Connectivity
1) Status LED for Ethernet
2) Status LED for USB
3) Status LED for DMX-IN
4) Status LED for DMX-OUT
5) Status LED for Power
6) XLR ports: DMX 1 – DMX 4/8/16
7) Reset button
8) XLR port: DMX-IN
9) USB port
10) RJ45 Ethernet port
11) Power socket
3-Pin And 5-Pin XLR Connector Layout
The images below outline the general pin layout of 5-pin and 3-pin XLR ports.
5
4
3
2
1 2
3
1
Please note: MADRIX
®
LUNA features 5-pin, female XLR connectors and one
5-pin, male XLR connector. Please use XLR adapters if necessary.
5-Pin Description 3-Pin
1 Ground
2 DMX –
3 DMX +
4 Spare
5 Spare
9876 1110
1 2 43 5
Note: MADRIX
®
LUNA 8 is used above as example.
MADRIX
®
LUNA 4 and MADRIX
®
LUNA 16 have a similar layout and functionality.
