86

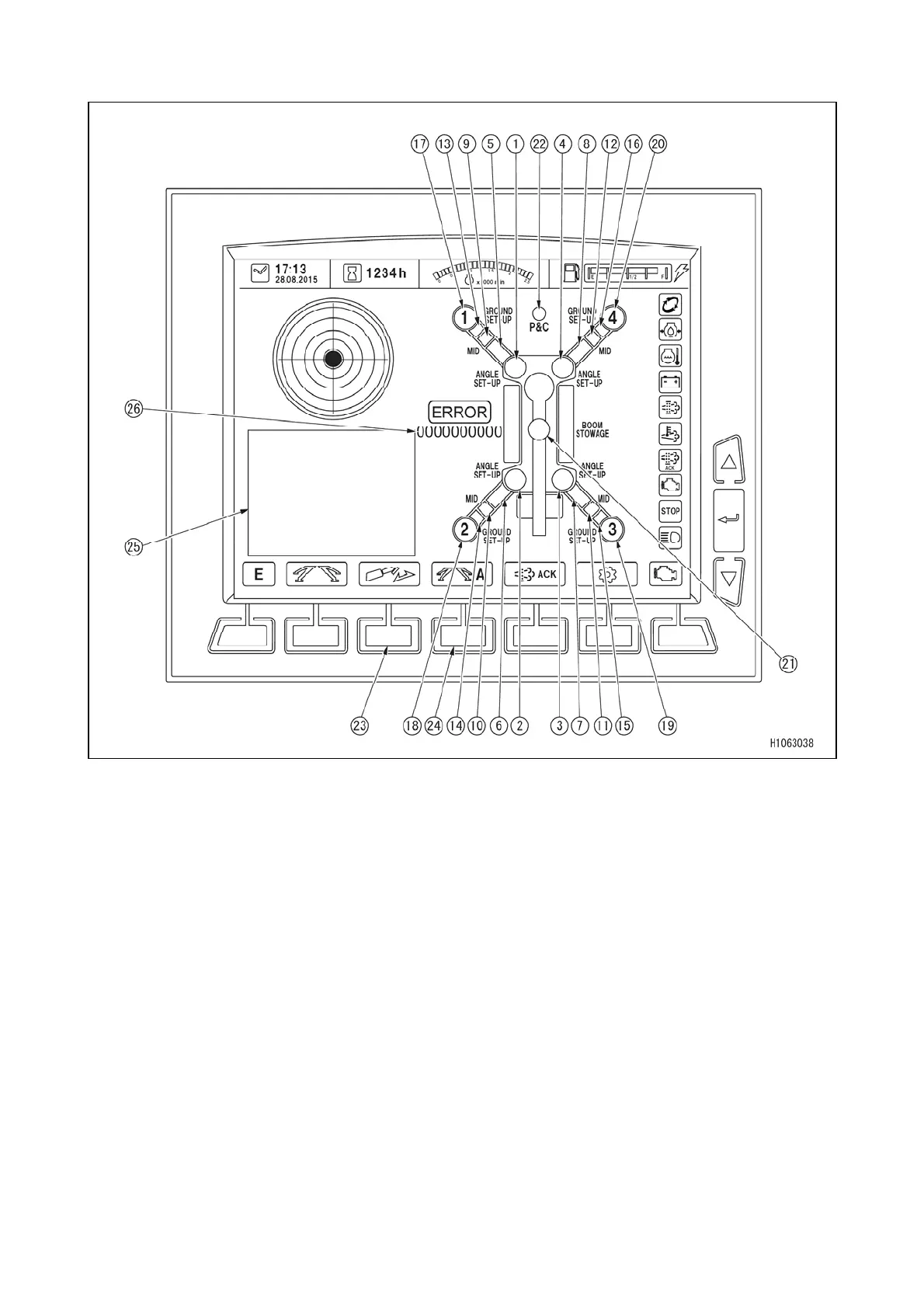

[3] MONITOR DISPLAY (OUTRIGGER MODE)
(1) Outrigger (1) Extension
(ANGLE SET-UP)
(2) Outrigger (2) Extension
(ANGLE SET-UP)
(3) Outrigger (3) Extension
(ANGLE SET-UP)
(4) Outrigger (4) Extension
(ANGLE SET-UP)
(5) Outrigger (1) (MIN)
(6) Outrigger (2) (MIN)
(7) Outrigger (3) (MIN)
(8) Outrigger (4) (MIN)
(9) Outrigger (1) (MID)
(10) Outrigger (2) (MID)
(11) Outrigger (3) (MID)
(12) Outrigger (4) (MID)
(13) Outrigger (1) (MAX)
(14) Outrigger (2) (MAX)
(15) Outrigger (3) (MAX)
(16) Outrigger (4) (MAX)
(17) Outrigger (1) (GROUND
SET-UP)
(18) Outrigger (2) (GROUND
SET-UP)
(19) Outrigger (3) (GROUND
SET-UP)
(20) Outrigger (4) (GROUND
SET-UP)
(21) Crane stow position
(22) Pick & Carry position
(23) Mode selector switch (2)
(Extension/Ground)
(24) Mode selector switch (3)
(Manual/Auto)
(25) Left side-view camera
monitor
(26) Error codes
